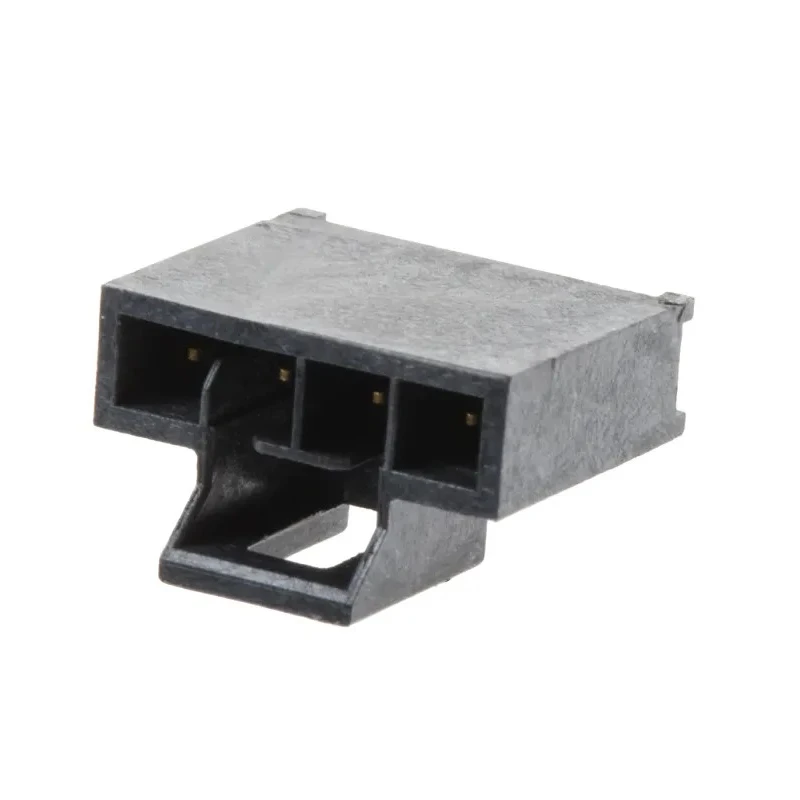

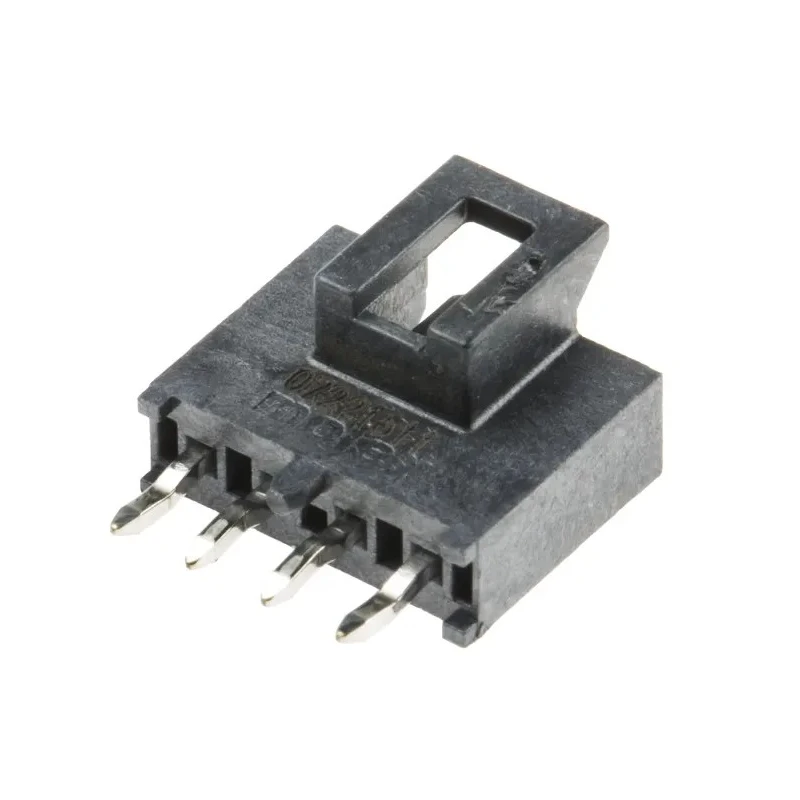

Molex Nano-Fit Series Straight Through Hole PCB Header, 4 Contacts, 2.5 mm Pitch, 1 Row, Shrouded 105309-1204

The Molex 105309-1204 Nano-Fit Series Straight Through Hole PCB Header is a high-performance wire-to-board connector designed for compact applications requiring robust and reliable connections. With a 2.5 mm pitch and a 1-row, 4-contact shrouded configuration, it delivers optimum current density and significant PCB space savings of up to 69%.

Its fully isolated contacts provide full electrical isolation between pins, effectively eliminating arcing and reducing risks of short circuits from debris. The scoop proof contact design protects pins from damage due to misalignment during mating and unmating.

The connector features polarization and keying to ensure accurate mating and prevent damage from improper installation. A positive locking mechanism provides secure connections with tactile feedback and an audible click to confirm completion.

Constructed with Liquid Crystal Polymer housings capable of withstanding up to 260°C, this PCB header is suitable for reflow soldering processes, providing manufacturing cost savings. The gold-plated brass contacts exhibit excellent conductivity and corrosion resistance, supporting a current rating of 6.5A and voltage rating of 300V.

This connector is ideal for a wide array of applications, including consumer appliances like refrigerators and washing machines, telecommunications equipment such as servers and hubs, automotive interior devices and lighting, industrial food and beverage machinery, medical patient care devices, aerospace, and defence systems.

Compact size with significant PCB real estate savings. Fully isolated and scoop proof contacts enhance reliability. Positive locking with audible and tactile mating feedback. Polarization and keying for error-free installation.

Liquid Crystal Polymer housing suitable for high-temperature reflow soldering. Gold-plated brass contacts for durable electrical performance. Current rating: 6.5A, Voltage rating: 300V. Operating temperature range: -40°C to 105°C.

Choose Molex Nano-Fit PCB Headers for compact, reliable, and efficient wire-to-board connections in diverse industrial and commercial applications. Explore more from the Molex connector series and related electronic components at EnvMart.
