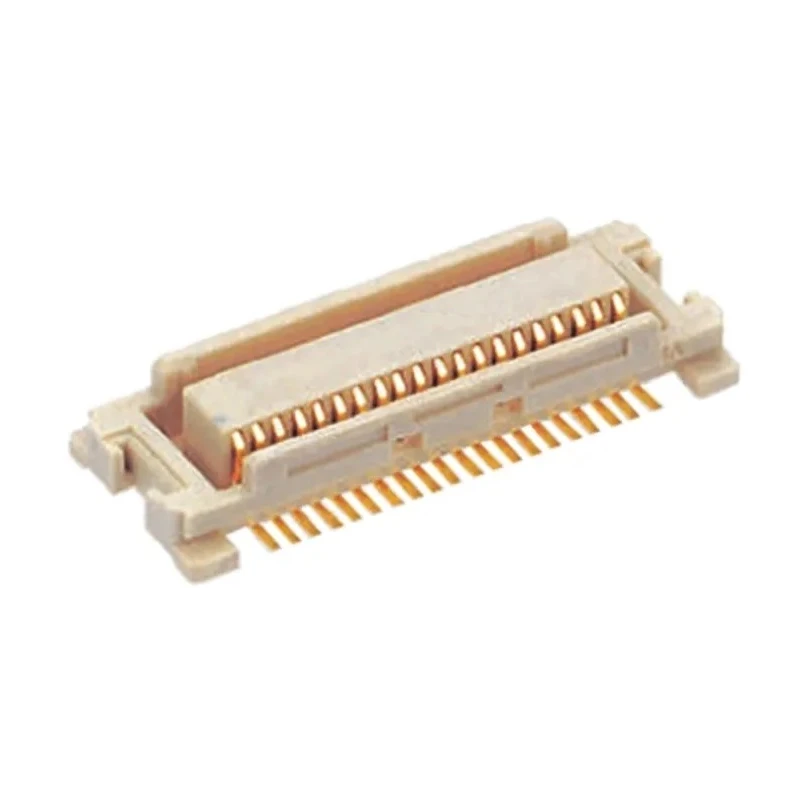

Molex SlimStack Series Straight Surface PCB Header 20 Contacts 0.5 mm Pitch 2 Row Shrouded 55560-0207
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 50V |
| Brand | Molex |
| Orientation | Straight |
| Current | 500mA |
| Mount Type | Surface |
| Contact Material | Brass |
| Series | SlimStack |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 0.5mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
| Tail Pin Length | 0.75mm |
Key Features
- Provides a high-density 0.5 mm pitch for compact PCB layouts.
- Features 20 gold-plated brass contacts ensuring reliable conductivity.
- Surface mount type suitable for board-to-board connections.
- Shrouded straight orientation enhances retention and prevents damage.
- Operates safely within -40°C to 105°C temperature range.
- Male contact gender designed for mating with corresponding connectors.
- Durable solder termination with 0.75 mm tail pin length for secure attachments.
- Supports currents up to 500mA and voltage up to 50V.
Product Description
Molex 55560-0207 SlimStack Series Straight Surface PCB Header features a micro SMT two-row connector with 20 contacts at a fine 0.5 mm pitch, designed for secure board-to-board connections in compact electronic devices.
The connector offers gold-plated brass contacts to ensure high reliability and conductivity, paired with a shrouded straight orientation for mechanical protection and stable retention against shock and vibration.
This surface-mount PCB header supports current ratings up to 500mA and voltages up to 50V, ideal for precision electronic assemblies and industrial control systems.
Operating temperature ranges from -40°C to 105°C, making it suitable for a variety of harsh environmental conditions encountered in manufacturing, telecommunications, and instrumentation.
The SlimStack Series connectors include a robust blade-on-beam contact design with metal friction locks to enhance mating security, specifically engineered for portable and vibration-prone equipment.
High-density 0.5 mm pitch enables compact electronic assembly designs. Gold-plated brass contacts ensure corrosion resistance and enduring performance. Shrouded male contacts provide robust alignment and protection during mating.
Solder tail pins with 0.75 mm length ensure strong solder joints. Designed for industrial, laboratory, communications, and consumer electronic applications. Packaged and shipped ready for seamless assembly integration. Country of origin: China.
Explore our extensive range of PCB connectors and electronics components at EnvMart to find compatible parts for your projects and applications.
Explore more products in our PCB Connectors & Wire Housings category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current rating of 500mA.
It operates safely within a temperature range of -40°C to 105°C.
The connector features 20 contacts arranged in a two-row configuration.
This unit utilizes a solder termination type for secure attachments.
The pitch size of the contacts is 0.5 mm, allowing for high-density layouts.
The contacts are made from brass and are gold-plated to ensure reliable conductivity.
Yes, it is designed specifically for board-to-board connections.
This model has a straight orientation, which enhances retention and prevents damage.
The solder tail pins have a length of 0.75 mm for strong solder joints.
It has a voltage rating of up to 50V.
The country of origin for this model is China.
It is designed for use in industrial, laboratory, communications, and consumer electronic applications.
