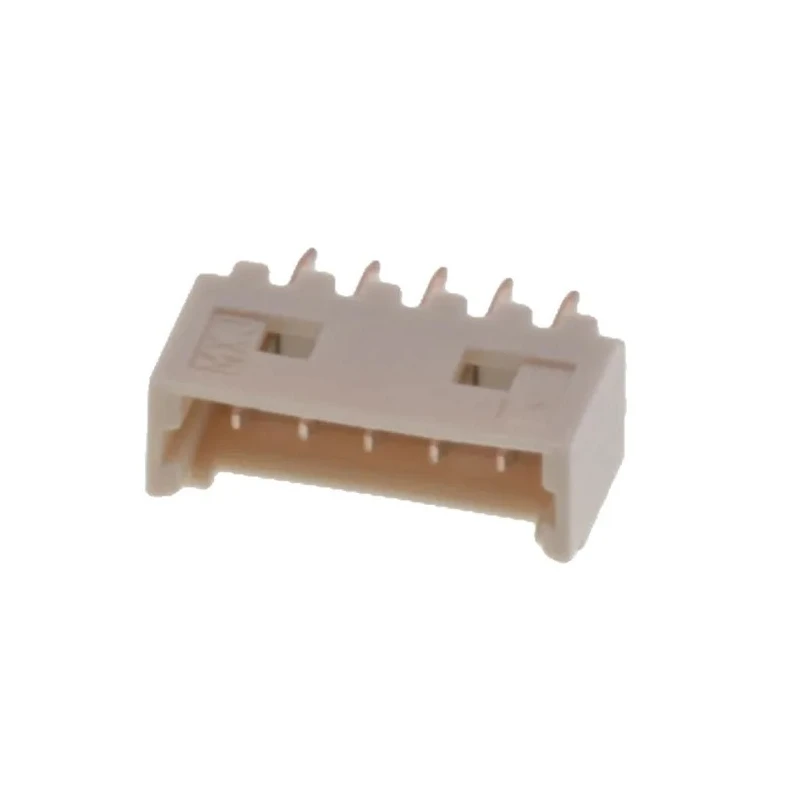

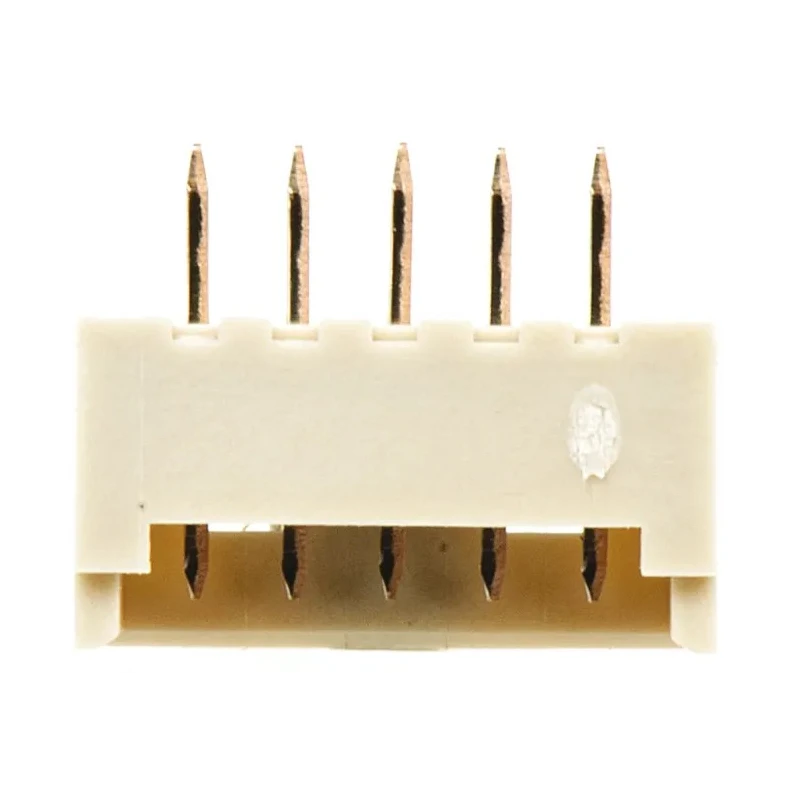

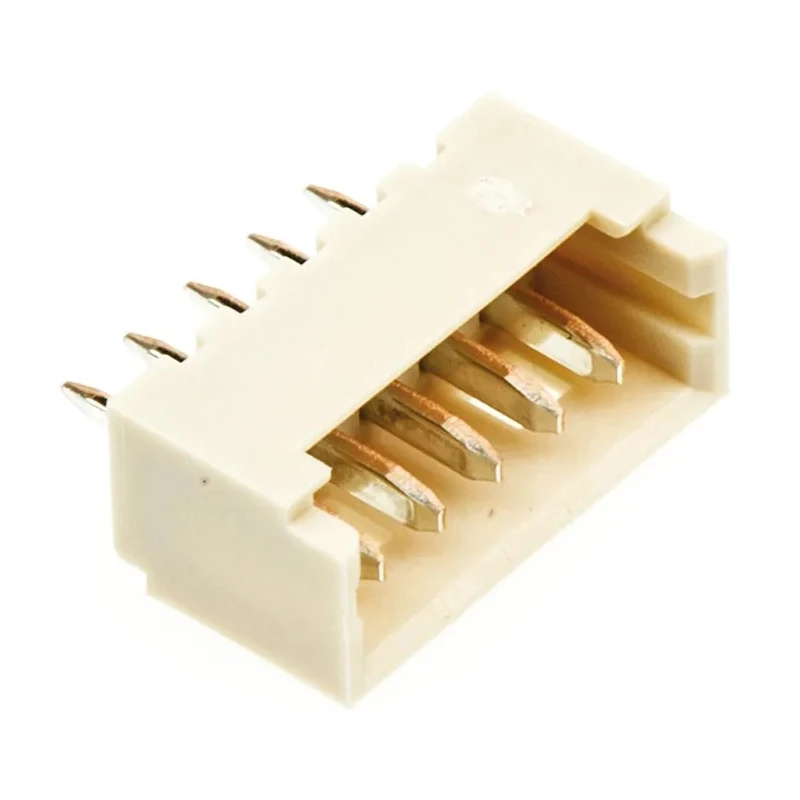

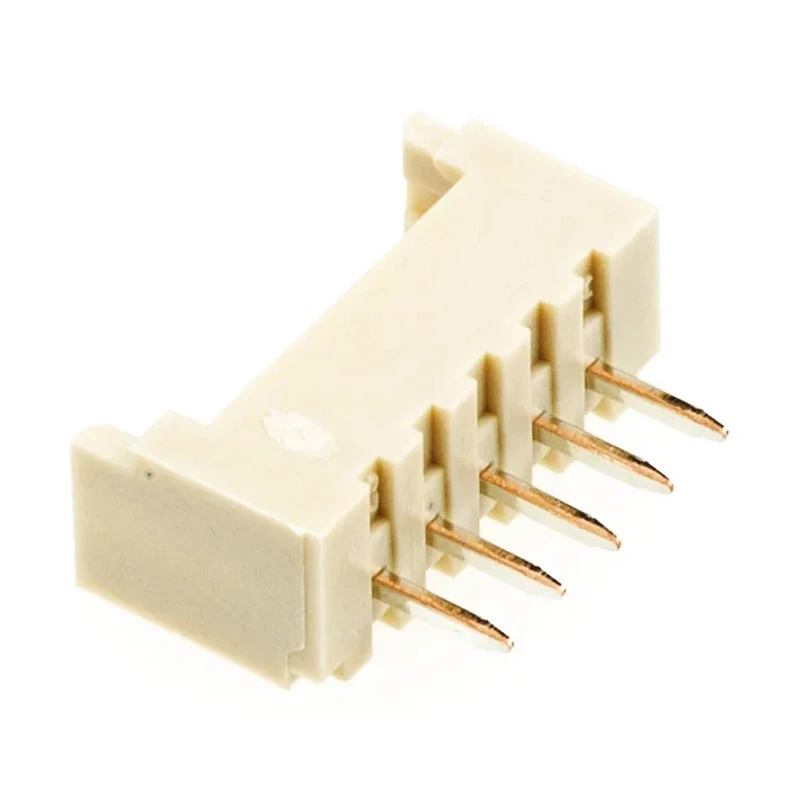

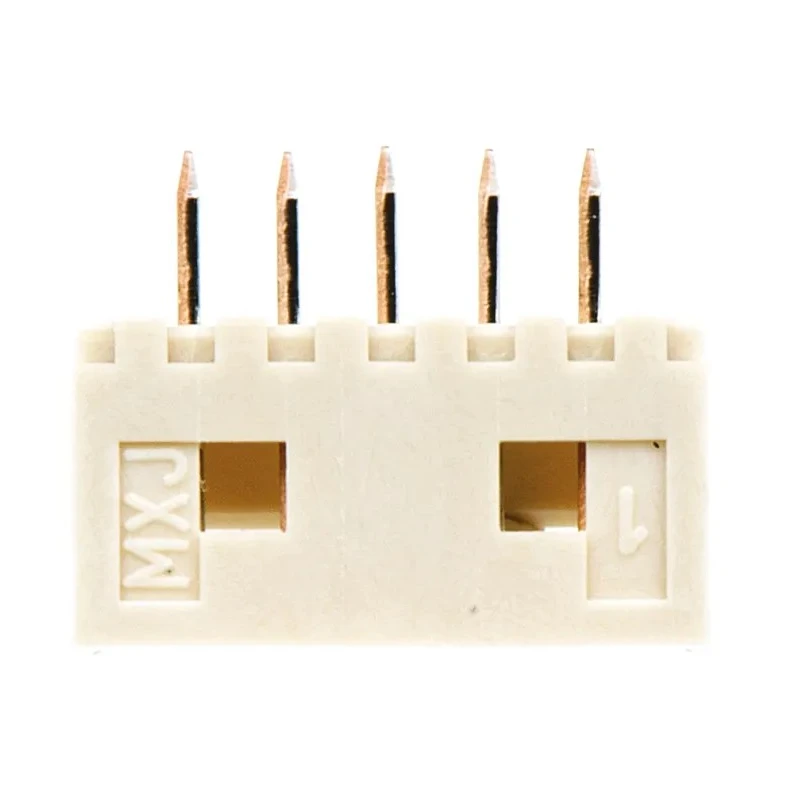

Molex PicoBlade Series Straight Through Hole PCB Header, 5 Contacts, 1.25 mm Pitch, 1 Row, Shrouded 53047-0510

Molex 53047-0510 PicoBlade Series Straight Through Hole PCB Header is a high-performance connector designed for electronic assembly requiring secure wire-to-board connections. Featuring a compact 1.25 mm pitch and 5 male contacts arranged in a single row, this header is ideal for applications demanding both space-saving and reliable data or power transmission.

The contacts are made from phosphor bronze, known for its excellent electrical conductivity and mechanical strength, and are tin plated to resist corrosion and ensure long-term durability. The housing is constructed from durable nylon and is fully shrouded to protect the contacts from mechanical impacts and to prevent mis-mating.

This header supports a current rating of 1A and a voltage rating of 125V, making it suitable for a wide range of low-voltage electronic devices. Operating temperature ranges from -40°C to 85°C, which allows it to function reliably even in demanding industrial or consumer electronics environments.

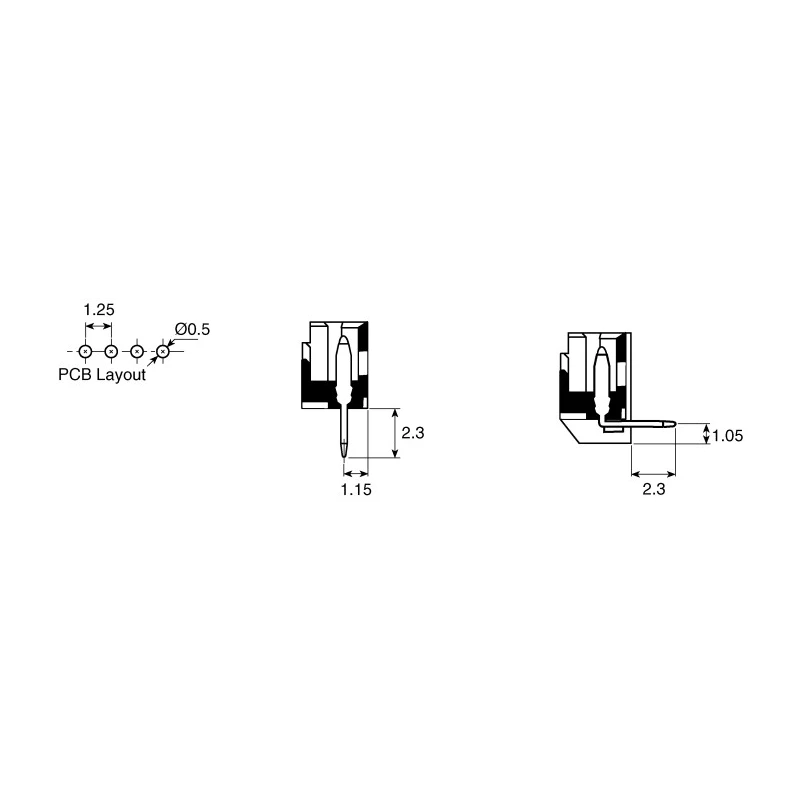

The friction lock mechanism built into the housing prevents accidental disengagement caused by vibration or mishandling, ensuring a stable connection throughout the product lifecycle. The tail pins have a length of 2.3 mm designed for through-hole solder mounting, providing strong mechanical and electrical connection to PCBs.

Common applications include mobile phones, digital cameras, and Blu-ray or DVD players, making this a versatile component for consumer electronics manufacturing and repair. Compact 1.25 mm pitch accommodates high-density PCB layouts.

1A current rating matches or exceeds many larger pitch connectors. Durable phosphor bronze contacts with tin plating resist corrosion. Fully shrouded design ensures protection and correct mating. Friction lock prevents accidental unmating and vibration effects.

Wide operating temperature range for diverse application environments. Lightweight and easy to assemble with through hole mounting.

This Molex PCB Header is manufactured in Japan, ensuring consistent quality and adherence to international standards. It is part of the PicoBlade series, well-regarded for compact size and robust performance.
