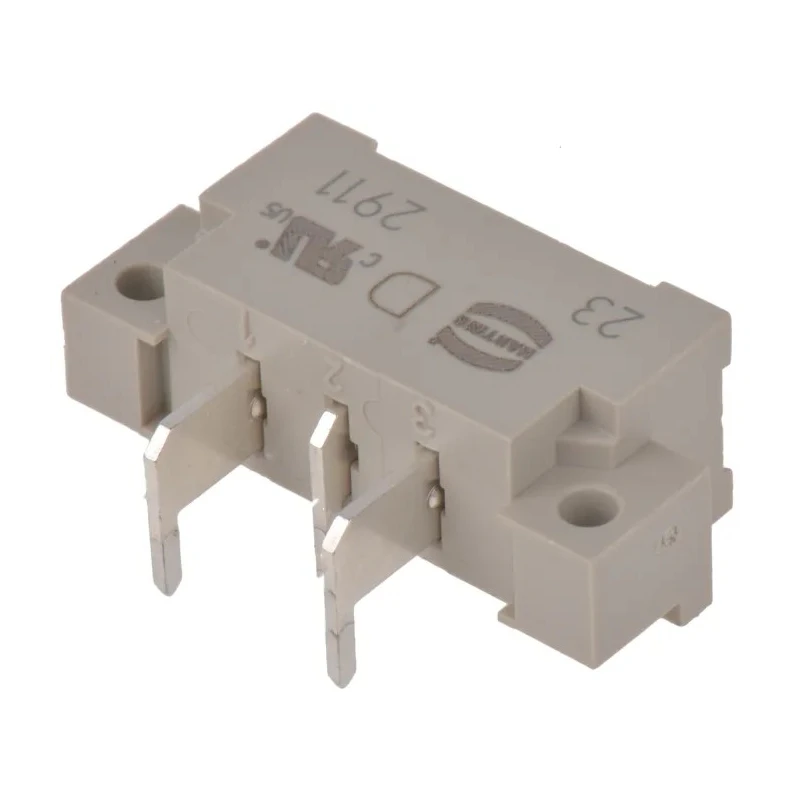

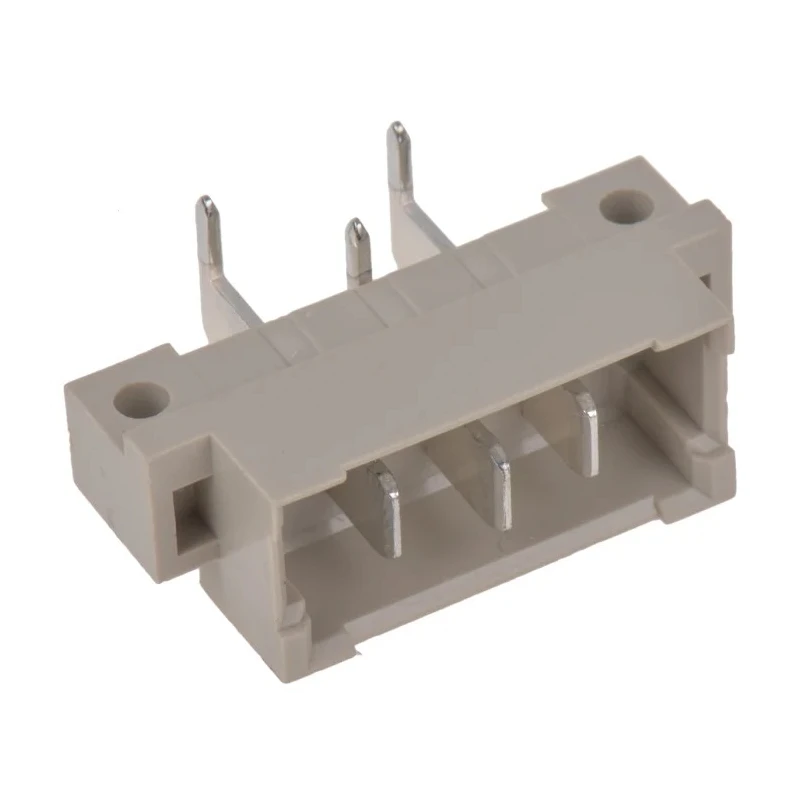

HARTING DIN 41612 3 Way 10.16 mm Pitch Type Through Hole H3 Solder 1 Row Male Right Angle Connector 09062032911
Specifications
| Country of Origin | India |
|---|---|
| Brand | HARTING |
| Orientation | Right Angle |
| Current | 15A |
| Mount Type | Through Hole |
| Housing Material | Fibreglass Reinforced Thermoplastic |
| Contact Material | Copper Alloy |
| Series | DIN 41612 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | H3 |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 10.16mm |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Connector Gender | Male |
| Maximum Contact Resistance | 8mΩ |
Key Features
- Designed with 3 contacts in a single row configuration.
- Supports a maximum current rating of 15A for robust electrical performance.
- Features a right angle orientation for versatile PCB mounting options.
- Constructed with copper alloy contacts ensuring reliable conductivity.
- Housing made from fibreglass reinforced thermoplastic for durability.
- Pitch spacing of 10.16 mm for standard DIN 41612 compatibility.
- Operates in a temperature range from -55°C to 125°C for varied environments.
- Solder termination ensures secure and stable connections.
Product Description
HARTING 09062032911 DIN 41612 3 Way 10.16 mm Pitch Type Through Hole connector is specifically engineered for industrial and electronic applications demanding robust and reliable electrical connections. This right angle male connector from the DIN 41612 series offers a practical solution for Eurocard rack systems interconnectivity.
It features 3 copper alloy contacts arranged in a single row with a precise 10.16 mm pitch, ensuring compatibility with standard DIN 41612 slots. The housing material is fibreglass reinforced thermoplastic, providing mechanical strength and resistance to environmental stress.
The connector supports a maximum current of 15 amps and operates efficiently within a wide temperature range of -55°C to 125°C, making it suitable for harsh industrial and electronic environments. The solder termination type guarantees robust and stable connections, while the through-hole mount type ensures secure fixation on printed circuit boards.
The maximum contact resistance of 8 milliohms ensures minimal electrical loss, essential for high-performance applications. Designed for one-row configurations, it is ideal for compact and reliable system designs.
Designed with 3 contacts in a single row configuration. Supports a maximum current rating of 15A for robust electrical performance. Features a right angle orientation for versatile PCB mounting options. Constructed with copper alloy contacts ensuring reliable conductivity.
Housing made from fibreglass reinforced thermoplastic for durability. Pitch spacing of 10.16 mm for standard DIN 41612 compatibility. Operates in a temperature range from -55°C to 125°C for varied environments. Solder termination ensures secure and stable connections.
Maximum contact resistance rated at 8 milliohms for minimal loss. Mount type is through hole for strong mechanical fixation.
This HARTING DIN 41612 connector is extensively used in industrial automation, electronic manufacturing, telecommunications, and instrumentation systems where dependable connector performance is critical. It enables efficient assembly and maintenance of complex electronic rack and backplane systems.
Explore more DIN 41612 Connectors and related products at EnvMart to find suitable solutions for your technical and industrial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current rating of 15A, ensuring robust electrical performance in various applications.
It features a solder termination type, which ensures secure and stable connections.
The pitch spacing is 10.16 mm, which is compatible with standard DIN 41612 slots.
The contacts are made from copper alloy, while the housing is constructed from fibreglass reinforced thermoplastic for durability.
It operates efficiently within a temperature range of -55°C to 125°C, making it suitable for harsh environments.
This connector is designed with 3 contacts arranged in a single row configuration.
The connector features a right angle orientation, allowing for versatile PCB mounting options.
The maximum contact resistance is rated at 8 milliohms, ensuring minimal electrical loss during operation.
It has a through hole mount type, which provides strong mechanical fixation on printed circuit boards.
This model is extensively used in industrial automation, electronic manufacturing, telecommunications, and instrumentation systems.
The connector gender is male, suitable for various interconnectivity needs.
The country of origin for this connector is India.
