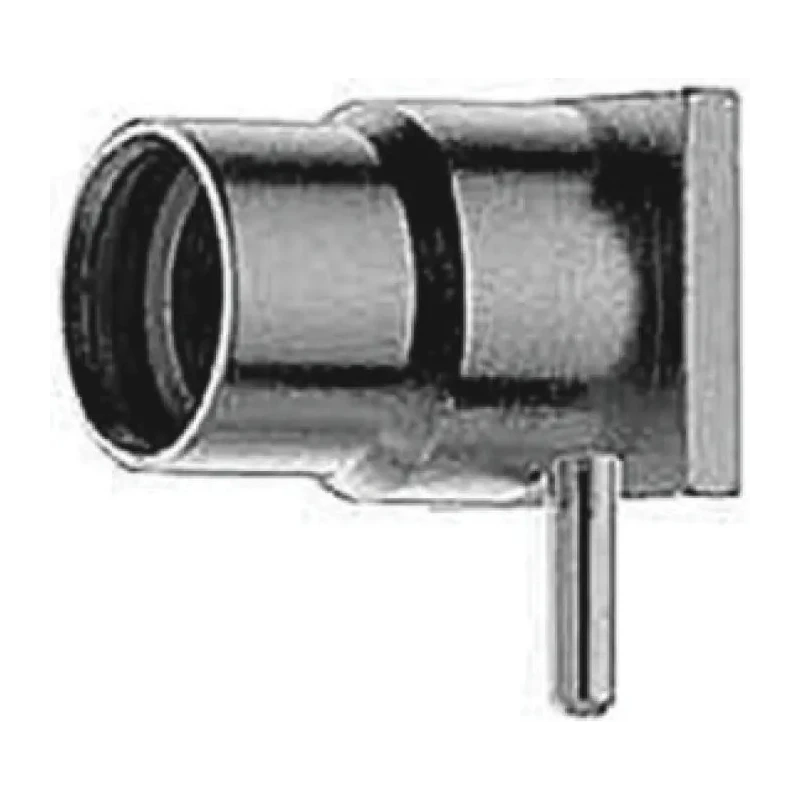

Telegartner MMCX Series Micro Miniature Surface Mount Female MCX Coaxial Connector, 50 Ω, Right Angle Body J01341A0001Y
Specifications
| Country of Origin | Germany |
|---|---|
| Size | Micro Miniature |
| Brand | Telegartner |
| Orientation | Right Angle |
| Model | J01341A0001Y |
| Mount Type | Surface |
| Operating Frequency | 6GHz |
| Contact Material | Beryllium Copper Alloy |
| Series | MMCX |
| Termination Type | Solder |
| Minimum Operating Temperature | 0°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold over Nickel |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | MCX |
| Body Plating | Telealloy |
| Telegartner, jack Surface Mount, 50Ω, Solder Termination, Straight BodyBrand | Telegartner |
Key Features
- Impedance is controlled at 50 Ω for consistent signal integrity.
- Right angle orientation enables compact PCB layout design.
- Contact gender is female with gold over nickel plating for corrosion resistance.
- Suitable for operating frequencies up to 6 GHz.
- Constructed with beryllium copper alloy contact material for durability.
- Telealloy body plating provides reliable conductivity and protection.
- Minimum operating temperature is 0°C ensuring stable performance in typical environments.
- Connector designed for surface mount application with solder termination type.
Product Description
Telegartner J01341A0001Y MMCX series micro miniature surface mount female MCX coaxial connector features a right angle body and solder termination type designed for high-frequency applications up to 6 GHz. This connector provides a well-controlled 50 Ω impedance ensuring signal integrity in electronic and communication devices. It is constructed with beryllium copper alloy contacts coated with gold over nickel plating, delivering excellent conductivity and corrosion resistance.
The Telealloy body plating enhances electrical performance and mechanical robustness. The connector's size and right angle configuration allow use in compact PCB designs, making it suitable for dense electronic assemblies including handheld video games, communication equipment, and instrumentation.
With a minimum operating temperature of 0°C, the connector guarantees reliable performance across standard environmental conditions. Its design supports over 500 mating cycles, ensuring long-term durability and stable connections in demanding industrial and commercial applications.
The female contact gender and solder termination enable secure surface mounting to printed circuit boards, ideal for manufacturers focusing on miniaturized PCB assemblies. The product is made in Germany and meets EN 122340 standards, although specific certifications are not listed.
Impedance: 50 Ω maintained for signal accuracy. Micro miniature MMCX form factor for high-density electronic layouts. Right angle orientation supports flexible PCB arrangement. Contact plating gold over nickel for enhanced corrosion protection.
Body plating: Telealloy for superior electrical contact. Contact material: Beryllium copper alloy offers durability and conductivity. Operating frequency capability up to 6 GHz for high-speed signal transmission. Solder termination type ensures lasting PCB attachment.
Normal polarity and female connector gender design. Supports over 500 mating cycles ensuring longevity.
Telegartner connectors are widely used in electronics manufacturing, telecommunications, laboratory instrumentation, and industrial applications requiring compact, reliable coaxial connections.
Explore more Coaxial Connectors and accessories in the Electronics Components category at EnvMart for all your connectivity needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The impedance of this connector is 50 Ω, which is maintained for signal accuracy and integrity in electronic applications.
This model can operate at frequencies up to 6 GHz, making it suitable for high-speed signal transmission applications.
It features a solder termination type, which ensures secure attachment to printed circuit boards.
The minimum operating temperature for this connector is 0°C, ensuring stable performance in typical environments.
The connector is constructed with beryllium copper alloy for the contact material, and it features gold over nickel plating for corrosion resistance.
This connector has a right angle orientation, which supports compact PCB layout designs.
It is designed to support over 500 mating cycles, ensuring durability and stable connections in various applications.
This connector is manufactured in Germany, ensuring high standards of production.
It is suitable for dense electronic assemblies including handheld video games, communication equipment, and laboratory instrumentation.
The body plating is made of Telealloy, which enhances electrical performance and provides protection.
The contact gender of this connector is female, which is typical for coaxial connections in various applications.
This connector belongs to the MMCX series, which is known for its micro miniature form factor suitable for high-density layouts.
