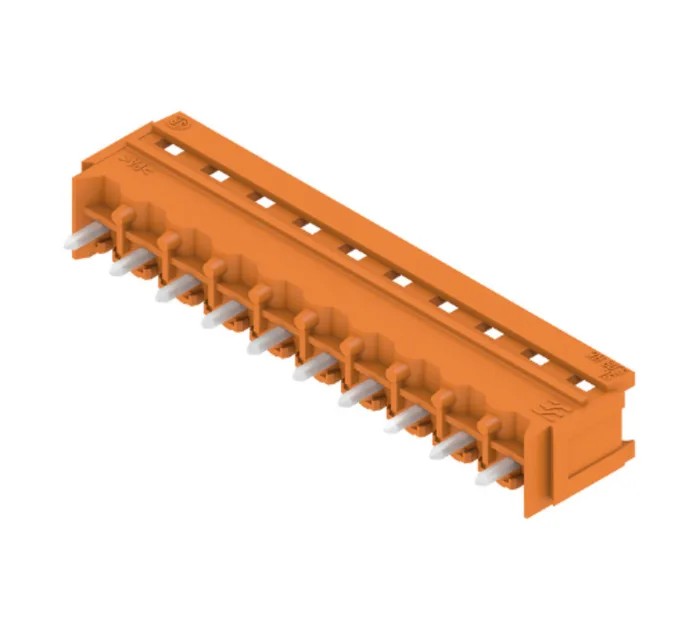

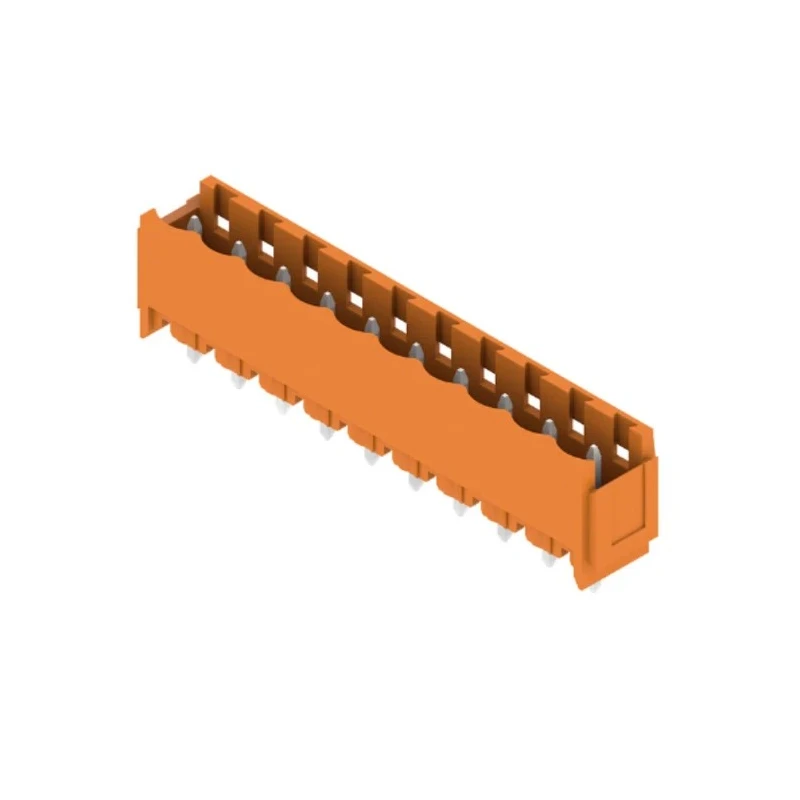

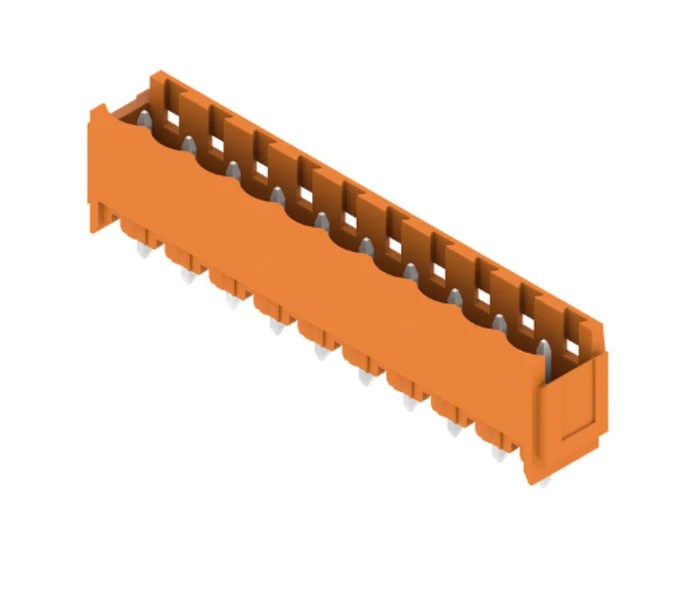

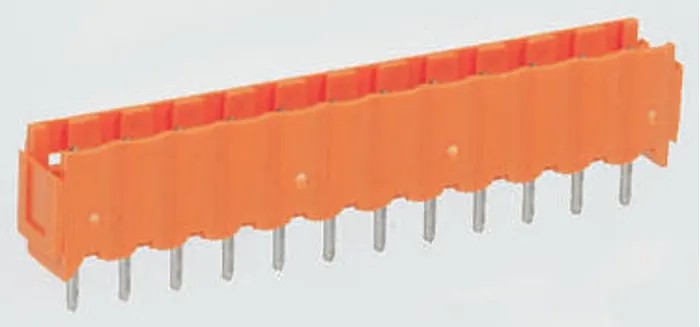

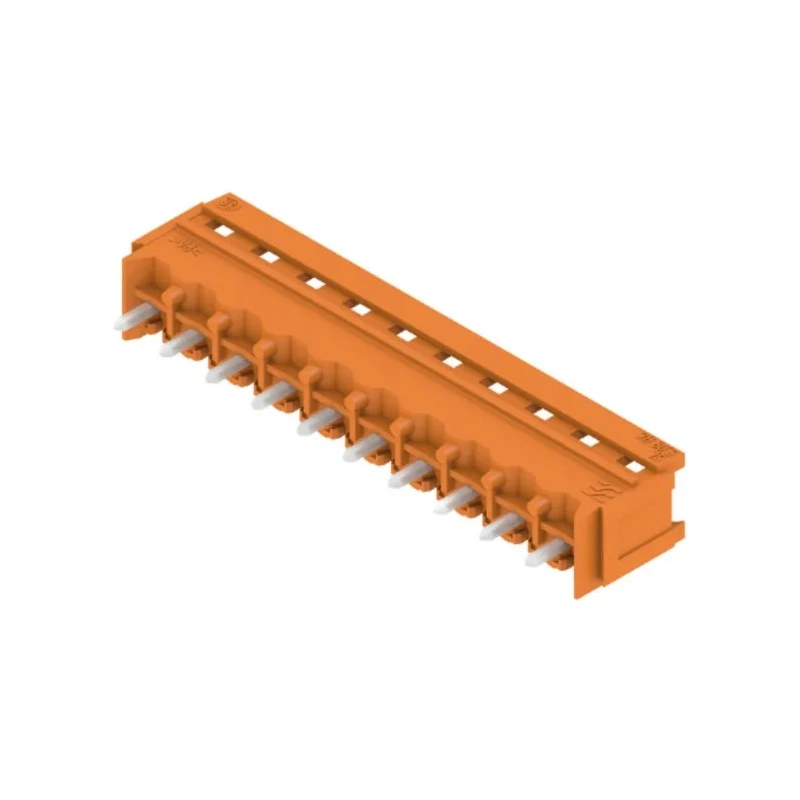

Weidmuller OMNIMATE SL Series Pluggable Terminal Block, 10-Contact, 5.08 mm Pitch, 18A Current, 400V Voltage 1147580000
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 400V |
| Brand | Weidmuller |
| Colour | Orange |
| Orientation | Straight |
| Current | 18A |
| Length | 15.2mm |
| Depth | 8.43mm |
| Width | 52.56mm |
| Housing Material | Polybutylene Terephthalate |
| Series | OMNIMATE SL |
| Number of Rows | 1 |
| Pitch | 5.08mm |
| Standards/Approvals | IEC 60664-1, UL 1059, RoHS, IEC 61984 |
| Number of Contacts | 10 |
| Connector Gender | Male |
| Wire Connection Method | Solder |
Key Features
- Supports a current rating of 18A for high power handling.
- Operates at a voltage rating of 400V suitable for diverse uses.
- Constructed with durable Polybutylene Terephthalate housing for long-lasting performance.
- Features a straight orientation with solder wire connection method for secure termination.
- Compact 5.08 mm pitch allows for efficient space utilization.
- Compliant with IEC 60664-1, UL 1059, RoHS, and IEC 61984 standards.
- Ideal for automation control systems and PCB assemblies.
- Manufactured in Germany ensuring high-quality standards.
Product Description
Weidmüller 1147580000 OMNIMATE SL Series Pluggable Terminal Block is engineered for dependable electrical connections in automation, electronics, and electrical control systems. Featuring 10 contacts and a 5.08 mm pitch, it effectively optimizes space on printed circuit boards and in electrical cabinets. Its Polybutylene Terephthalate housing provides robust insulation and mechanical strength, supporting a current rating of 18A and voltage rating of 400V, making it adaptable for a variety of industrial and commercial applications.
This model uses a straight body orientation with solder termination, ensuring durable and reliable connection integrity. The compact design and 1-row contact configuration allow easy installation in space-constrained layouts while ensuring compliance with international standards like IEC 60664-1, UL 1059, RoHS, and IEC 61984.
Typical applications include automation control systems, PCB connection implementations, electrical cabinet wiring, and integration into industrial machinery control panels. The product is RoHS compliant, supporting environmentally responsible electronics manufacturing.
High current rating of 18A supports demanding electrical loads. Voltage rating of 400V accommodates varied application needs. Durable Polybutylene Terephthalate housing enhances operational lifespan. Straight orientation and solder wire connection provide consistent electrical contact.
Compact 5.08 mm pitch optimizes space efficiency in assemblies. Standards compliant for quality and safety assurance in electronic designs. German origin guarantees premium manufacturing processes and quality control.
This terminal block is an essential component for engineers and designers in electronics manufacturing, industrial automation, electrical maintenance, and system integration roles. Browse our extensive range of Pluggable Terminal Blocks from Weidmüller and other top brands at EnvMart for reliable electrical connection solutions designed for professional environments.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 18A, making it suitable for high power handling applications.
It operates at a voltage rating of 400V, accommodating a variety of application needs.
The terminal block measures 15.2mm in length, 52.56mm in width, and 8.43mm in depth.
This terminal block features a compact pitch of 5.08mm, optimizing space utilization in assemblies.
It is equipped with 10 contacts, allowing for multiple connections in a single unit.
The housing is constructed from Polybutylene Terephthalate, providing robust insulation and mechanical strength.
It utilizes a solder wire connection method, ensuring secure and reliable termination.
It is compliant with IEC 60664-1, UL 1059, RoHS, and IEC 61984 standards for quality and safety assurance.
The terminal block features a straight orientation, facilitating easy installation in various applications.
It is manufactured in Germany, ensuring adherence to high-quality standards.
Typical applications include automation control systems, PCB connection implementations, and electrical cabinet wiring.
This model features a male connector gender, suitable for a variety of connection scenarios.
