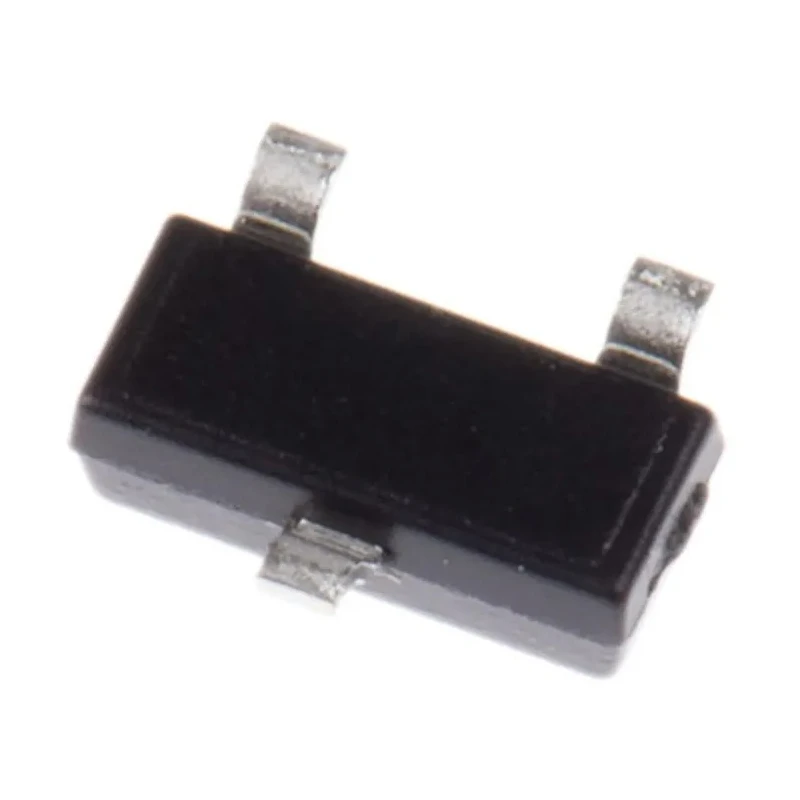

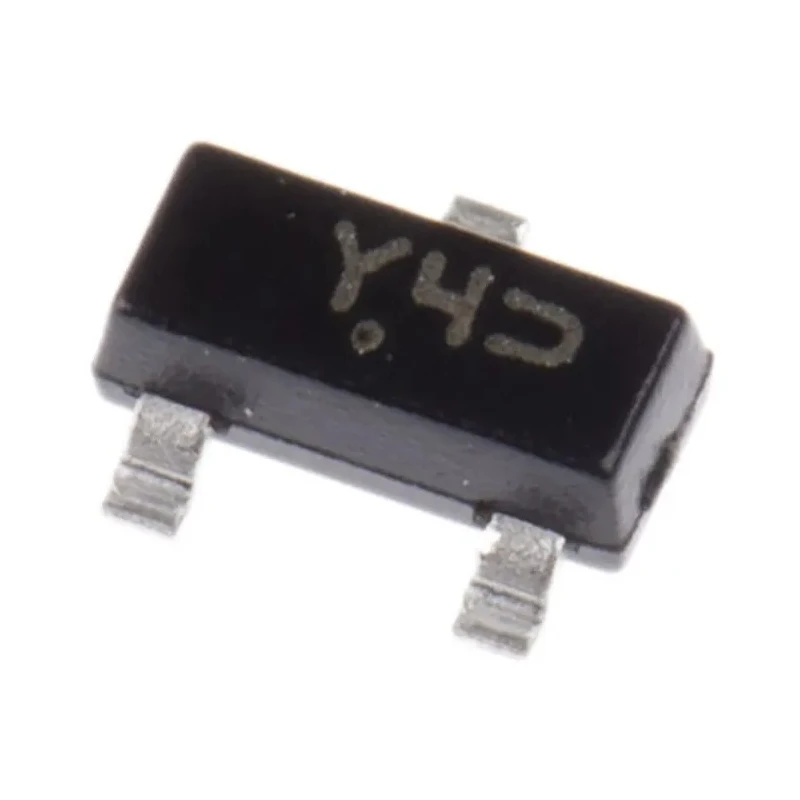

onsemi 15 V Zener Diode, Single, 300 mW Power Dissipation, 5% Tolerance, Surface Mount 3-Pin SOT-23 BZX84C15LT1G

Free Delivery in India | Lowest Global Shipping Charges

onsemi 15 V Zener Diode, Single, 300 mW Power Dissipation, 5% Tolerance, Surface Mount 3-Pin SOT-23 BZX84C15LT1G

Name: onsemi 15 V Zener Diode, Single, 300 mW Power Dissipation, 5% Tolerance, Surface Mount 3-Pin SOT-23 BZX84C15LT1G
Brand: onsemi
SKU: 185579
Price: 0.02 USD
Availability: InStock



Category Zener Diodes Brand onsemi Condition New

Specifications

Country of Origin	China
Brand	onsemi
Height	1.11mm
Length	3.04mm
Model	BZX84C15LT1G
Mount Type	Surface
Series	BZX84
Maximum Operating Temperature	150°C
Package Type	SOT-23
Minimum Operating Temperature	-65°C
Pin Count	3
Number of Elements per Chip	1
Maximum Power Dissipation Pd	300mW
Diode Configuration	Single
Test Current It	5mA
Maximum Reverse Leakage Current	50nA
Nominal Zener Voltage Vz	15V
Zener Type	Voltage Regulator
Maximum Zener Impedance	200Ω
Typical Voltage Temperature Coefficient	9.2mV/K
onsemi, 15V Zener Diode 6% 300 mW SMT 3-Pin SOT-23Brand	ON Semiconductor

Key Features

The diode features a nominal Zener voltage of 15 V with ±5% tolerance.
It operates with a maximum power dissipation of 300 mW and a maximum reverse leakage current of 50 nA.
The package type is SOT-23 with a compact 3-pin surface mount design.
Operating temperature ranges from -65°C to 150°C ensuring reliable performance under extreme conditions.
Maximum Zener impedance is 200 Ω with a typical voltage temperature coefficient of 9.2 mV/K.
The diode is designed for applications requiring stable voltage regulation in industrial and electronic devices.
Its single diode configuration and small outline transistor package make it suitable for automated assembly processes.

Product Description

onsemi BZX84C15LT1G is a single diode Zener regulator designed for surface mounting in compact electronic circuits. Rated for a nominal Zener voltage of 15 V and capable of dissipating 300 mW power, it provides precise voltage regulation with ±5% tolerance.

This diode is housed in a small SOT-23 3-pin package, measuring 3.04 mm in length and 1.11 mm in height, ideal for space-constrained applications. Featuring a low reverse leakage current of 50 nA and a maximum Zener impedance of 200 Ω, it ensures efficiency and stability in power-sensitive applications.

The device withstands a wide operating temperature range from -65°C to 150°C, making it reliable for harsh industrial, automotive, and commercial environments. Typical uses include voltage regulation and voltage reference in electronic circuits where space economy and surface mounting are essential.

The diode has a single element configuration optimized for voltage regulation. Its low test current of 5 mA suits precise calibration requirements. The typical voltage temperature coefficient of 9.2 mV/K allows predictable behavior over temperature changes.

The compact SOT-23 package supports surface mount assembly for automated manufacturing. Its robust electrical characteristics enable usage in electronic control systems and telecommunications.
