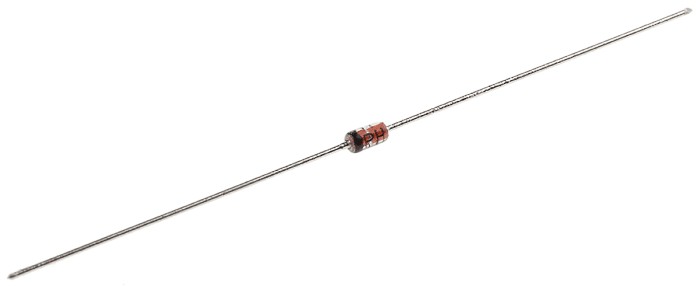

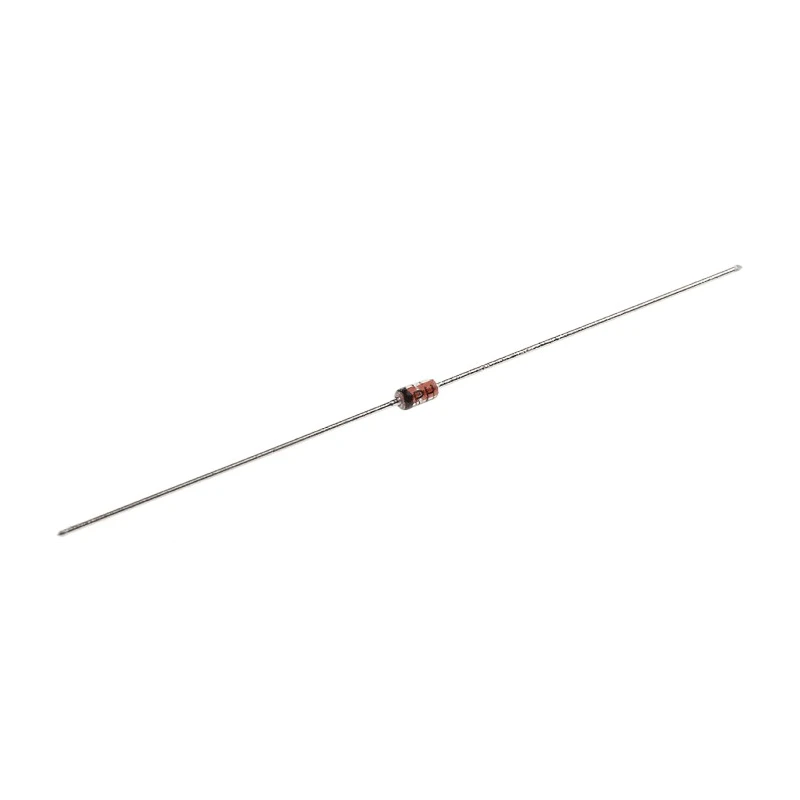

Nexperia General Purpose Through Hole Diode 2-Pin DO-35 BAV21,113 250 V 250 mA

Free Delivery in India | Lowest Global Shipping Charges

Nexperia General Purpose Through Hole Diode 2-Pin DO-35 BAV21,113 250 V 250 mA

Name: Nexperia General Purpose Through Hole Diode 2-Pin DO-35 BAV21,113 250 V 250 mA
Brand: Nexperia
SKU: 185424
Price: 0.08 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand Nexperia Condition New

Specifications

Country of Origin	China
Diameter	1.85mm
Brand	Nexperia
Height	1.85mm
Length	4.25mm
Model	BAV21,113
Width	1.85mm
Mount Type	Through Hole
Series	BAV21
Maximum Operating Temperature	175°C
Package Type	DO-35
Minimum Operating Temperature	-65°C
Pin Count	2
Maximum Continuous Forward Current If	250mA
Peak Reverse Repetitive Voltage Vrrm	250V
Diode Configuration	Single
Rectifier Type	General Purpose
Peak Reverse Current Ir	100nA
Peak Non-Repetitive Forward Surge Current Ifsm	9A
Maximum Forward Voltage Vf	1.25V
Peak Reverse Recovery Time trr	50ns
Vishay Silicon Junction, Single, 200 mA, 2-Pin 250 mV DO-35 BAV21-TAPBrand	Vishay

Key Features

Supports high density circuit designs with low leakage.
Features fast switching speed and low capacitance.
DO-35 package with 2-pin configuration for easy PCB insertion.
Maximum continuous forward current of 250 mA and peak repetitive voltage of 250 V.
Wide operating temperature range from -65°C to 175°C.
Peak non-repetitive forward surge current rating of 9 A for robust performance.
Compact dimensions with 4.25 mm length and 1.85 mm diameter.
Maximum forward voltage of 1.25 V ensuring efficient rectification.

Product Description

Nexperia BAV21,113 is a general purpose diode designed for through hole mount applications with a 2-pin DO-35 package. It supports a maximum continuous forward current of 250 mA and a peak reverse repetitive voltage rating of 250 V, making it suitable for a variety of electronic circuits requiring reliable rectification and switching.

This diode offers low leakage current and high switching speeds, complemented by a low capacitance design to ensure minimal signal distortion. Its compact size with dimensions of 4.25 mm length and 1.85 mm diameter supports high density PCB layouts.

Operating reliably across a temperature range from -65°C up to 175°C, it is suitable for demanding industrial and electronic environments. The diode withstands a peak non-repetitive forward surge current of up to 9 A, enhancing its robustness against transient surges.

Applications include use in industrial electronics, power supply circuits, signal switching, and general semiconductor uses in manufacturing and laboratory settings. Supports high density circuit designs with low leakage.

Features fast switching speed and low capacitance. DO-35 package with 2-pin configuration for easy PCB insertion. Maximum continuous forward current of 250 mA and peak repetitive voltage of 250 V. Wide operating temperature range from -65°C to 175°C.

Peak non-repetitive forward surge current rating of 9 A for robust performance. Compact dimensions with 4.25 mm length and 1.85 mm diameter. Maximum forward voltage of 1.25 V ensuring efficient rectification. Peak reverse recovery time of 50 ns for fast switching applications.

This diode is an ideal component for electrical and electronic projects requiring dependable switching and rectification in commercial, industrial, automotive, laboratory, and manufacturing applications. EnvMart offers this component with professional-grade technical accuracy and details for precise procurement and design integration.
