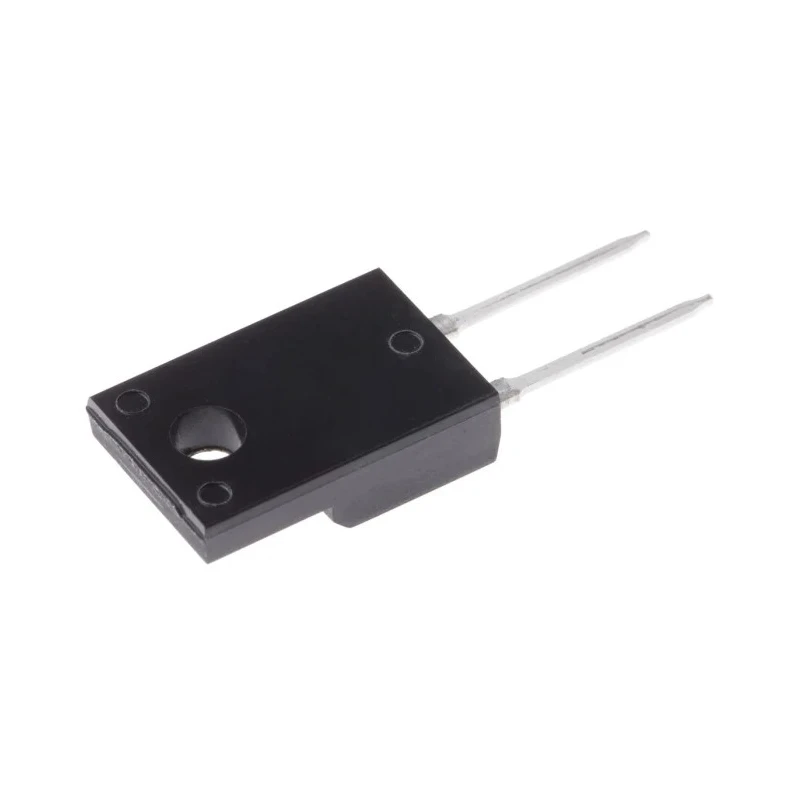

STMicroelectronics High Voltage 600 V 15 A Diode Single Configuration 2-Pin TO-220 STTH15AC06FP
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 3mm |
| Brand | STMicroelectronics |
| Height | 16.4mm |
| Length | 10.4mm |
| Model | STTH15AC06FP |
| Width | 4.6mm |
| Mount Type | Through Hole |
| Series | STTH15 |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 15A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Single |
| Rectifier Type | High Voltage |
| Peak Reverse Current Ir | 200μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 120A |
| Maximum Forward Voltage Vf | 1.9V |
| Peak Reverse Recovery Time trr | 55ns |
Key Features
- The diode features a single diode configuration with 2 pins for through hole mounting.
- It delivers a peak reverse repetitive voltage of 600 V and a maximum continuous forward current of 15 A.
- The maximum forward voltage drop is 1.9 V ensuring efficient rectification.
- It has a fast peak reverse recovery time of 55 ns for high-frequency applications.
- The diode supports a peak non-repetitive forward surge current of 120 A for short duration overloads.
- Operating temperature range includes a minimum of -40°C and maximum up to 175°C for harsh environments.
- The compact TO-220 package dimensions include a height of 16.4 mm, width of 4.6 mm, length of 10.4 mm, and pin diameter of 3 mm.
- Compliance with RoHS standards ensures environmentally safe manufacturing.
Product Description
STMicroelectronics STTH15AC06FP is a high voltage diode designed for reliable performance in demanding power electronics and industrial applications. Featuring a through-hole mount type in a TO-220 package, it provides robust continuous forward current handling up to 15 A with a peak reverse repetitive voltage rating of 600 V.
This single diode configuration is optimized for high voltage rectification with a maximum forward voltage of 1.9 V, which helps minimize power losses. The device exhibits a fast peak reverse recovery time of 55 ns, suitable for switching applications in power supplies and converters.
The diode’s peak non-repetitive forward surge current rating of 120 A allows it to handle short-duration overload current without damage, enhancing reliability in transient conditions. It has a wide operating temperature range from -40°C up to 175°C, making it versatile for various environmental conditions.
Its compact TO-220 package with precise dimensions (Height 16.4 mm, Width 4.6 mm, Length 10.4 mm, Pin Diameter 3 mm) facilitates easy integration into electronic assemblies. The product complies with RoHS environmental directives ensuring it meets modern manufacturing and disposal standards.
STTH15AC06FP diode is ideal for use in industrial power conversion, power supplies, electronic rectifiers, and other circuits requiring high voltage high current discrete semiconductor solutions. Its reliable performance and package versatility make it popular for both industrial and commercial electronic equipment.
The diode features a single diode configuration with 2 pins for through hole mounting. It delivers a peak reverse repetitive voltage of 600 V and a maximum continuous forward current of 15 A. The maximum forward voltage drop is 1.9 V ensuring efficient rectification.
It has a fast peak reverse recovery time of 55 ns for high-frequency applications. The diode supports a peak non-repetitive forward surge current of 120 A for short duration overloads. Operating temperature range includes a minimum of -40°C and maximum up to 175°C for harsh environments.
The compact TO-220 package dimensions include a height of 16.4 mm, width of 4.6 mm, length of 10.4 mm, and pin diameter of 3 mm. Compliance with RoHS standards ensures environmentally safe manufacturing. Ideal for industrial, power supply, and electronic circuits requiring high voltage and current rectification.
Explore similar high quality semiconductor components and rectify circuit needs by browsing the Electronics & Electricals category on EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The diode has a peak reverse repetitive voltage rating of 600 V.
It can handle a maximum continuous forward current of 15 A.
The maximum forward voltage drop is 1.9 V, which helps in efficient rectification.
The diode supports a peak non-repetitive forward surge current of 120 A for short duration overloads.
It has a fast peak reverse recovery time of 55 ns, making it suitable for high-frequency applications.
The operating temperature range is from -40°C to 175°C, allowing it to function in harsh environments.
The TO-220 package dimensions are 16.4 mm in height, 4.6 mm in width, and 10.4 mm in length, with a pin diameter of 3 mm.
This diode features a through-hole mounting type.
It has a single diode configuration with 2 pins.
The product complies with RoHS standards, ensuring environmentally safe manufacturing.
The peak reverse current is rated at 200 μA.
It is suitable for use in industrial power conversion, power supplies, electronic rectifiers, and other circuits requiring high voltage high current discrete semiconductor solutions.
