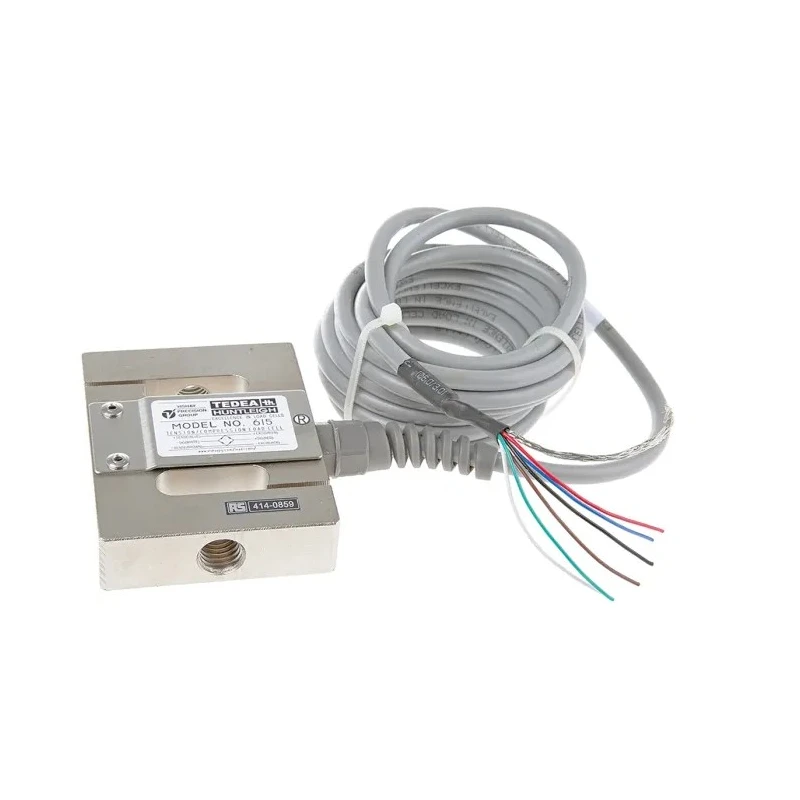

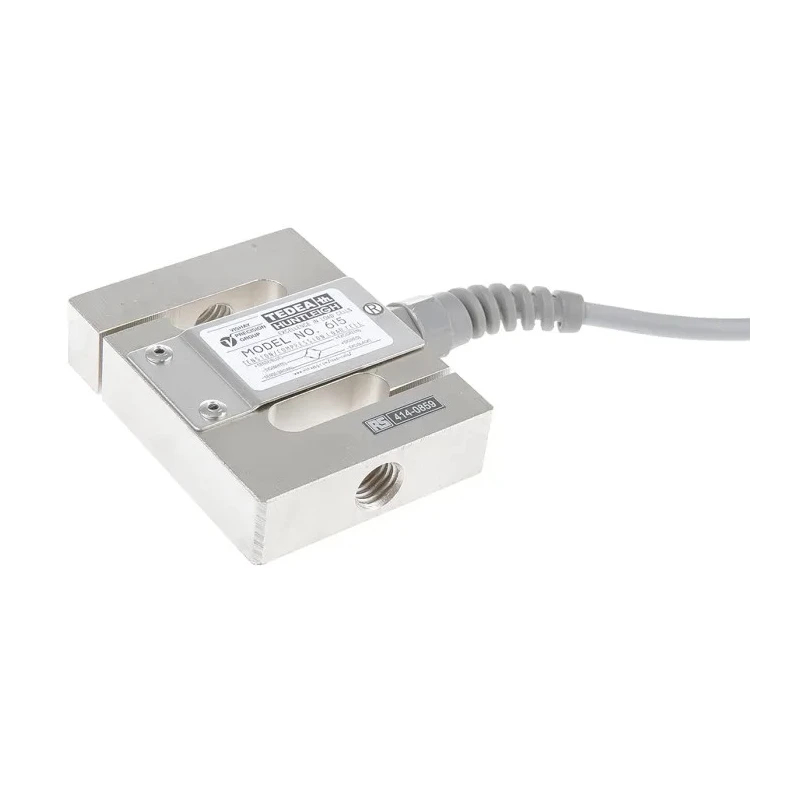

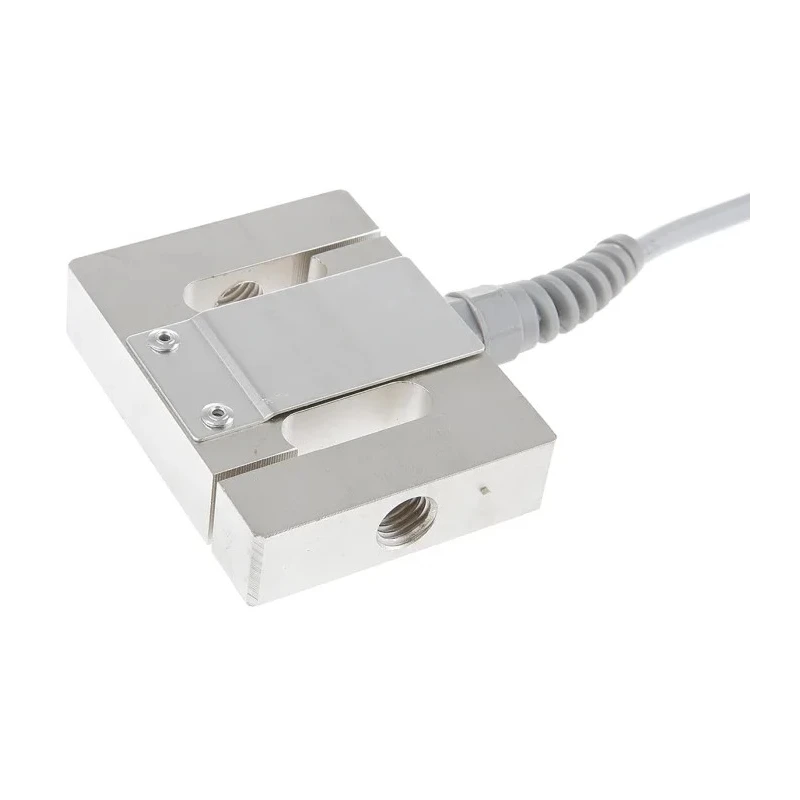

Tedea Huntleigh Models 615 Series S Type Load Cell, 50 kg to 200 kg Tension and Compression Measurement 0615-0200-G000-RS

Tedea Huntleigh 0615-0200-G000-RS Models 615 Series S Type Load Cell is engineered for reliable tension and compression force measurement with a range from 50 kg to 200 kg. This device is widely used in industrial, laboratory, and manufacturing environments requiring precise force sensing.

The load cell features a nickel plated steel housing that provides robust protection and mechanical strength, combined with an IP67 rating guaranteeing excellent resistance against dust and moisture infiltration. Its 6-wire sense configuration enhances accuracy by compensating for lead resistance variations due to temperature fluctuations or cable extension.

Electrical specifications include maximum AC and DC voltages of 15V, supporting compatibility with standard signal conditioning equipment. The compact form factor (80 x 26 x 26 mm) makes this load cell versatile for equipment with space constraints.

Typical industrial applications include material testing machines, electronic conversion of mechanical scales, hanging scales, and hopper weight measurement. The 1/2 Inch UNF thread facilitates secure mounting in diverse setups.

The load cell also offers safe and ultimate overload capacities of 150% and 300% respectively, ensuring reliability under demanding use. This product is manufactured in China and is supplied new, ensuring quality and performance.

Constructed with nickel plated steel housing for durability and corrosion resistance. IP67 ingress protection enhances use in harsh environments. Measures force in tension and compression for versatile industrial applications.

6-wire sense circuit compensates for temperature and cable length changes. Operational temperature from -10°C to 40°C suits various ambient conditions. Maximum AC/DC voltage rating of 15V for electrical safety. Compact dimensions enable integration into machinery and test setups.

Reliable conversion of mechanical force into electronic output for automation systems. Explore the electronics and sensors category on EnvMart for more advanced Load Cells and strain gauges suited for industrial automation and control gear applications.
