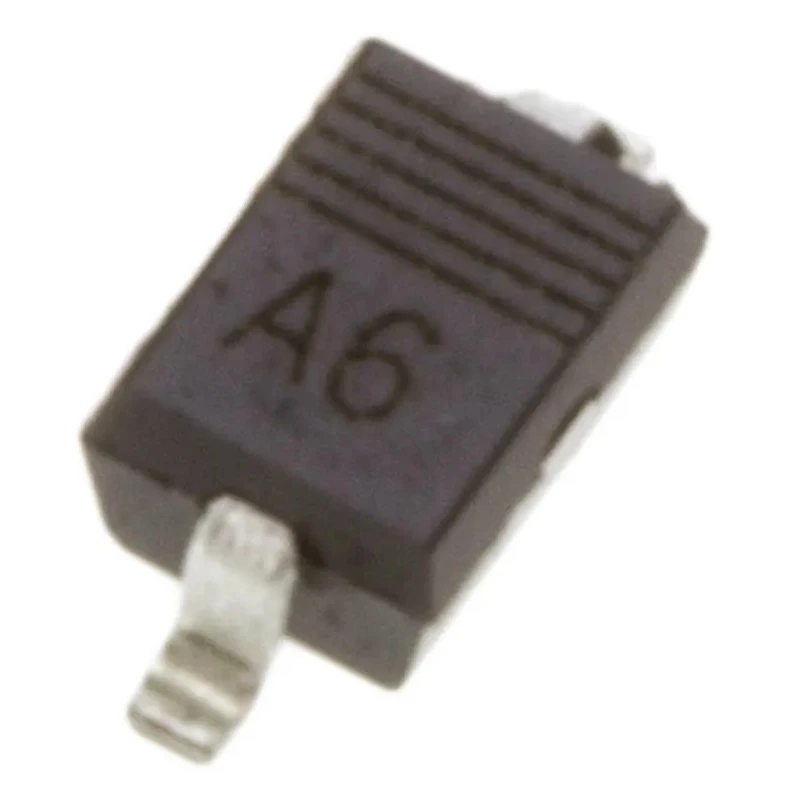

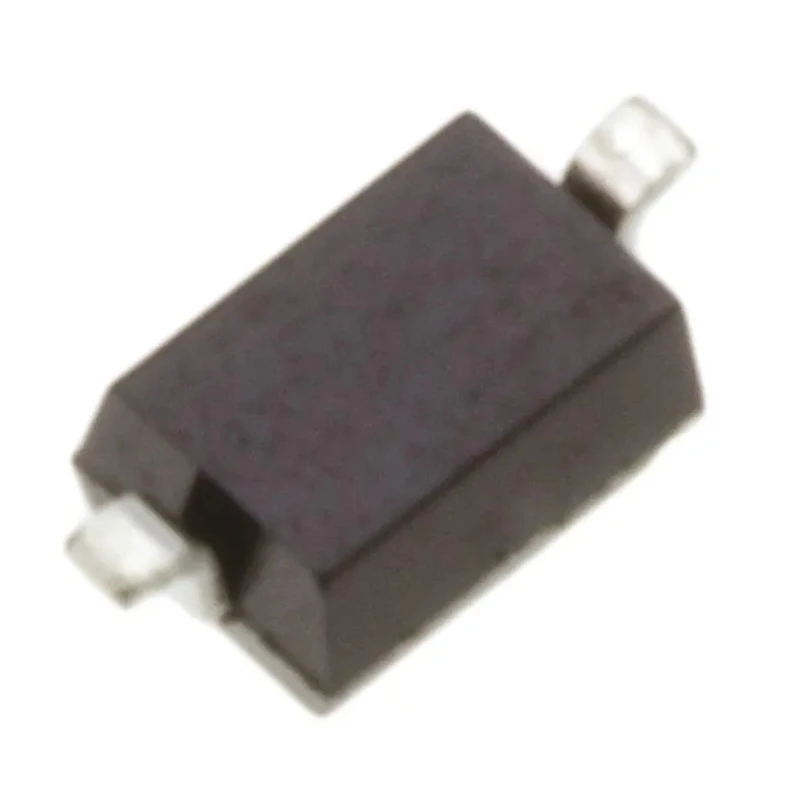

Nexperia 100 V 250 mA Surface Mount Switching Diode SOD-323 BAS316

Nexperia BAS316 switching diode is a surface mount semiconductor device designed for fast switching applications. It supports a continuous forward current up to 250 mA and a peak reverse voltage of 100 V, making it suitable for various electronic and automotive systems that require rapid signal switching and high reliability.

Housed in a compact SOD-323 package with dimensions of 1.8 mm length, 1.35 mm width, and 1.1 mm height, the BAS316 diode minimizes PCB footprint while providing efficient electrical performance. The device features a maximum forward voltage drop of 1.25 V, which helps reduce power loss in high-frequency switching circuits.

Its peak reverse recovery time of 4 nanoseconds enables high-speed operation, essential for modern power management and signal conditioning uses. Additionally, the diode shows low leakage current with a peak reverse current of only 50 microamperes, enhancing circuit stability and efficiency under reverse bias conditions.

This diode is able to withstand peak non-repetitive surge currents up to 4 amperes, providing transient protection in harsh electrical environments. With a maximum operating temperature of 150°C and automotive standard AEC-Q101 qualification, it is ideal for use in automotive electronics, industrial control systems, and telecommunications hardware.

Applications include signal switching, protection circuits, and fast recovery rectification in industrial equipment. The compact surface mount design suits automated PCB assembly processes facilitating manufacturing efficiency.

Key operational features such as low capacitance, low leakage, and high switching speeds make the BAS316 diode applicable for embedded computing, power supplies, and signal processing in commercial and automotive sectors.

Maximum continuous forward current of 250 mA. Peak reverse repetitive voltage of 100 V. Peak reverse recovery time of 4 ns for high-speed switching. Low leakage current with peak reverse current of 50 μA. Surface mount SOD-323 package with small form factor.

Max forward voltage drop of 1.25 V for efficient energy use. High surge current tolerance of 4 A. Maximum operating temperature of 150°C. AEC-Q101 automotive qualification. Suitable for industrial, automotive, and electronic signal switching applications.

This Nexperia BAS316 diode is available on EnvMart under the Switching Diodes category and supports applications requiring reliable, fast electronic switching in compact footprints.
