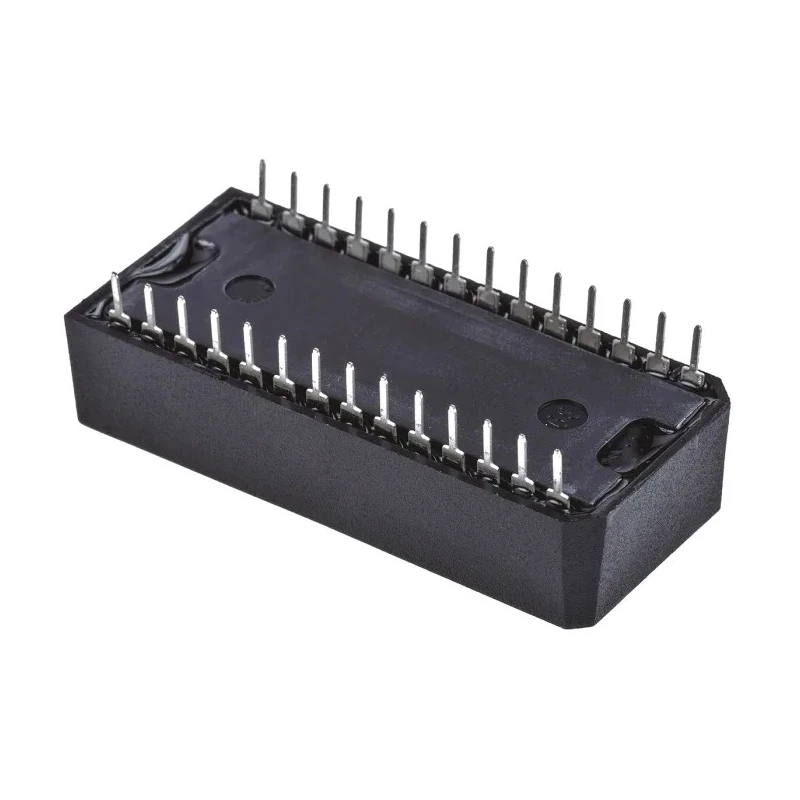

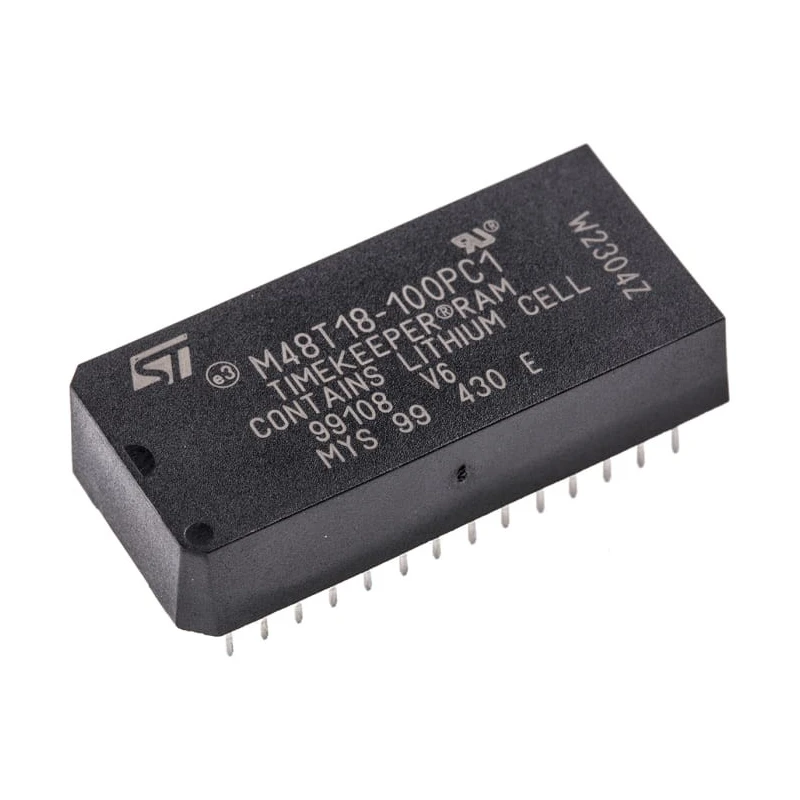

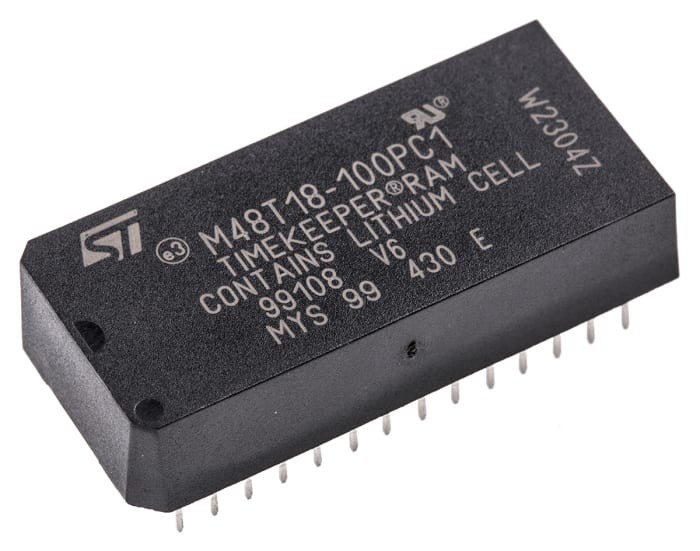

STMicroelectronics Real Time Clock 8.19 kB RTC Memory, 28-Pin PCDIP Through Hole M48T18-100PC1

STMicroelectronics M48T18-100PC1 is a high-quality Real Time Clock (RTC) device featuring 8.19 kB of TIMEKEEPER® SRAM memory in a 28-Pin PCDIP Through Hole package. It integrates a quartz-based low-power oscillator and clock/calendar circuit to provide accurate real-time data, supporting date format DW:DM:M:Y and time format HH:MM:SS.

This RTC module offers a parallel interface, facilitating straightforward hardware integration and communication with other electronic components. It is designed to operate reliably across an ambient temperature range from 0°C to 70°C, making it suitable for various industrial, laboratory, and commercial electronic applications.

The device runs on a minimum supply voltage of 4.5 V up to a maximum of 5.5 V, ensuring stable power consumption and optimal performance. Its physical footprint of 39.88 mm length, 18.34 mm width, and 8.89 mm height allows for easy incorporation into through-hole mounted circuit boards.

The inclusion of STMicroelectronics' TIMEKEEPER® technology guarantees power fail-safe data retention in SRAM, combining non-volatile real-time clock functionality with memory capabilities. This feature is particularly useful in systems requiring reliable timekeeping and data preservation during power interruptions.

Uses DW:DM:M:Y date format for calendar data. Operates with HH:MM:SS time format providing precise timekeeping. Features a parallel interface type for hardware communication. Supports operation within 0°C to 70°C ambient temperature range.

Designed with a 28-pin Through Hole PCDIP package for easy PCB mounting. Includes TIMEKEEPER® SRAM for low power consumption and reliable memory retention. Minimum supply voltage is 4.5 V and maximum is 5.5 V ensuring compatibility with standard circuits.

Physical dimensions measure 39.88 mm length, 18.34 mm width, and 8.89 mm height.

This Real Time Clock is ideal for use in industrial electronics, embedded systems, instrumentation, consumer electronics, and power management applications where accurate and continuous timekeeping is critical. Its robust design and standard packaging ensure broad compatibility with existing PCB layouts and manufacturing processes.
