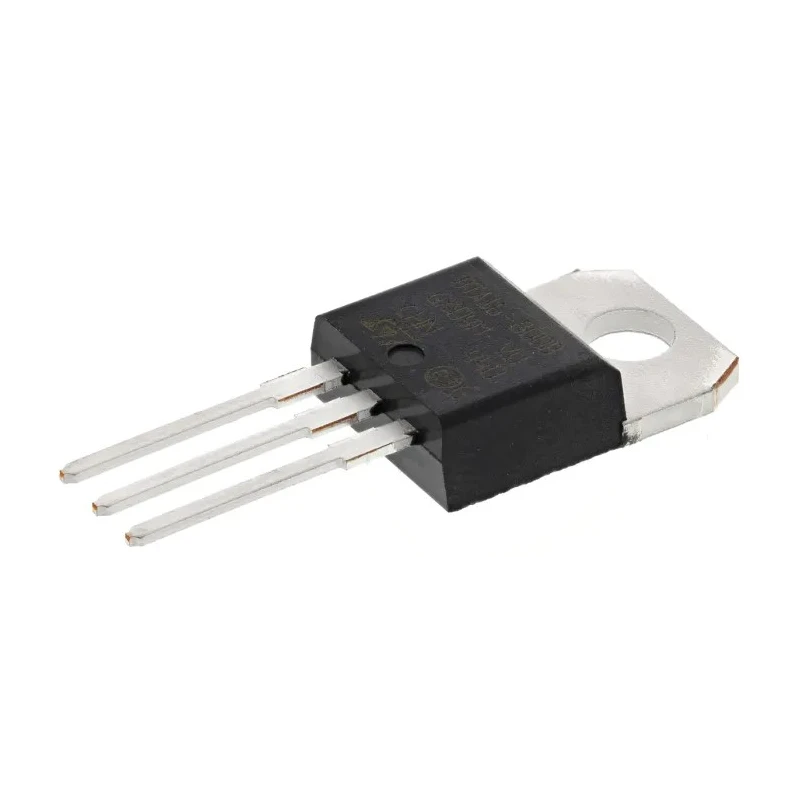

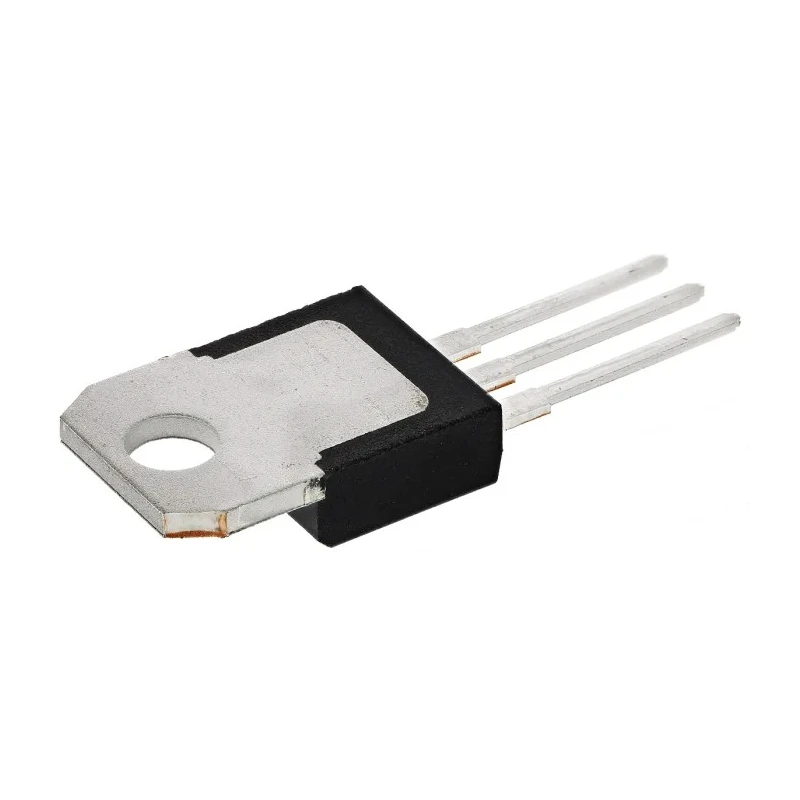

STMicroelectronics Through-Hole 3-Pin TRIAC 16A, Surge Current 168A, 800V Repetitive Peak Reverse Voltage BTA16-800BRG
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 9.3mm |
| Length | 10.4mm |
| Model | BTA16-800BRG |
| Mount Type | Through Hole |
| Configuration | Single |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Rated Average On-State Current Irms | 16A |
| Repetitive Peak Reverse Voltage VDRM | 800V |
| Surge Current Rating | 168A |
| Maximum Gate Trigger Current Igt | 100mA |
| Maximum Holding Current Ih | 50mA |
| Maximum Gate Trigger Voltage Vgt | 1.3V |
| Peak On-State Voltage | 1.55V |
| Repetitive Peak Off-State Current | 5μA |
| Peak Gate Power Dissipation | 1W |
Key Features
- Through-hole mount with TO-220 package for easy PCB integration.
- Maximum surge current rating of 168A for handling transient loads.
- Low gate trigger voltage of 1.3V ensures reliable triggering sensitivity.
- Maximum holding current of 50mA for stable on-state condition.
- Operating temperature range from -40°C to 125°C for harsh environments.
- Three-pin configuration suitable for single TRIAC switching applications.
- Peak gate power dissipation rated at 1W for gate protection.
- Compact dimensions of 9.3mm height and 10.4mm length accommodate space-limited designs.
Product Description
STMicroelectronics BTA16-800BRG is a reliable through-hole mounted TRIAC featuring a 3-pin TO-220 package, designed for phase control and switching of AC power in industrial and electronic applications. With a rated average on-state current of 16A and a repetitive peak reverse voltage of 800V, the device is suitable for controlling moderate power loads in HVAC systems, motor controls, and lighting dimmers.
The TRIAC offers a maximum surge current of 168A, enabling it to handle current spikes safely, while the maximum gate trigger current of 100mA and a low gate trigger voltage of 1.3V ensure efficient and sensitive triggering. Its maximum holding current of 50mA maintains stable conduction in AC cycles.
Designed for robust operation, the BTA16-800BRG supports operating temperatures from -40°C to 125°C. The device dissipates up to 1W peak gate power to protect gate circuitry. The compact physical dimensions with a height of 9.3mm and length of 10.4mm facilitate PCB mounting in constrained spaces.
STMicroelectronics TRIACs are widely used in industrial, laboratory, manufacturing, HVAC, and lighting control applications, providing precise AC power regulation and energy efficient control in both commercial and residential environments.
Through-hole mount with TO-220 package ensures easy assembly. High current and voltage ratings for industrial reliability. Wide temperature range for diverse operating conditions. Low gate trigger voltage improves device responsiveness.
Compact size supports high-density PCB designs. This product is part of EnvMart’s comprehensive semiconductor portfolio, supporting various discrete component needs for engineers and designers.
Explore more products in our Discrete Semiconductor category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum surge current rating of this model is 168A, allowing it to handle transient loads effectively.
The rated average on-state current for the BTA16-800BRG is 16A, suitable for controlling moderate power loads.
This TRIAC operates within a temperature range of -40°C to 125°C, making it suitable for harsh environments.
The BTA16-800BRG has a low gate trigger voltage of 1.3V, ensuring reliable triggering sensitivity.
It is packaged in a TO-220 format, which is designed for through-hole mounting and easy PCB integration.
The maximum holding current for the BTA16-800BRG is 50mA, which helps maintain stable conduction during AC cycles.
This model has a height of 9.3mm and a length of 10.4mm, making it compact for space-limited designs.
The maximum gate trigger current for the BTA16-800BRG is 100mA, allowing for efficient triggering.
This TRIAC has a repetitive peak reverse voltage rating of 800V, suitable for various applications.
The peak gate power dissipation for the BTA16-800BRG is rated at 1W, providing protection for gate circuitry.
This TRIAC is suitable for phase control and switching of AC power in applications such as HVAC systems, motor controls, and lighting dimmers.
The BTA16-800BRG features a 3-pin configuration, which is typical for single TRIAC switching applications.
