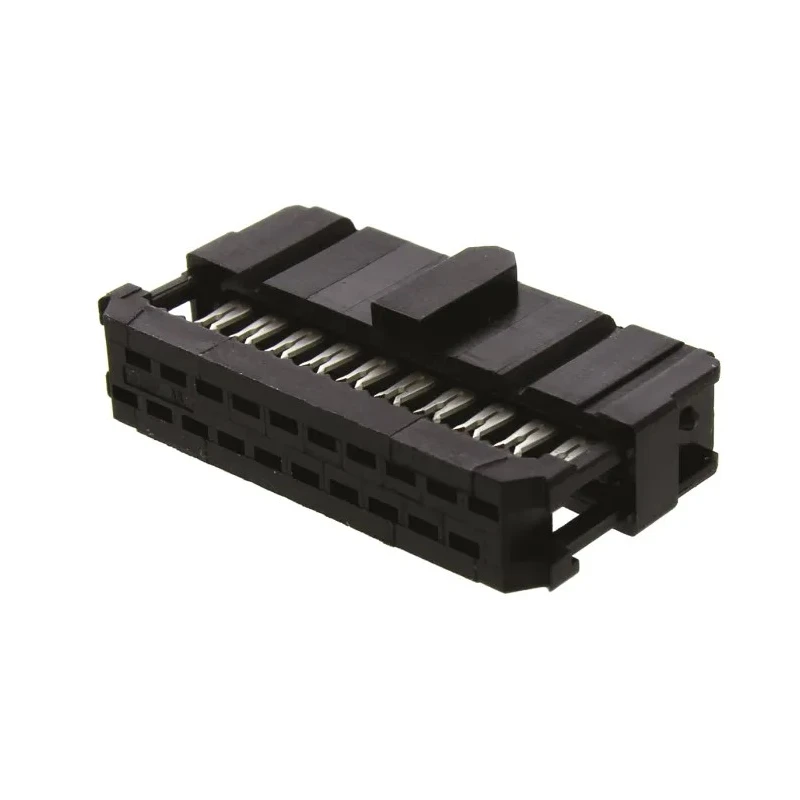

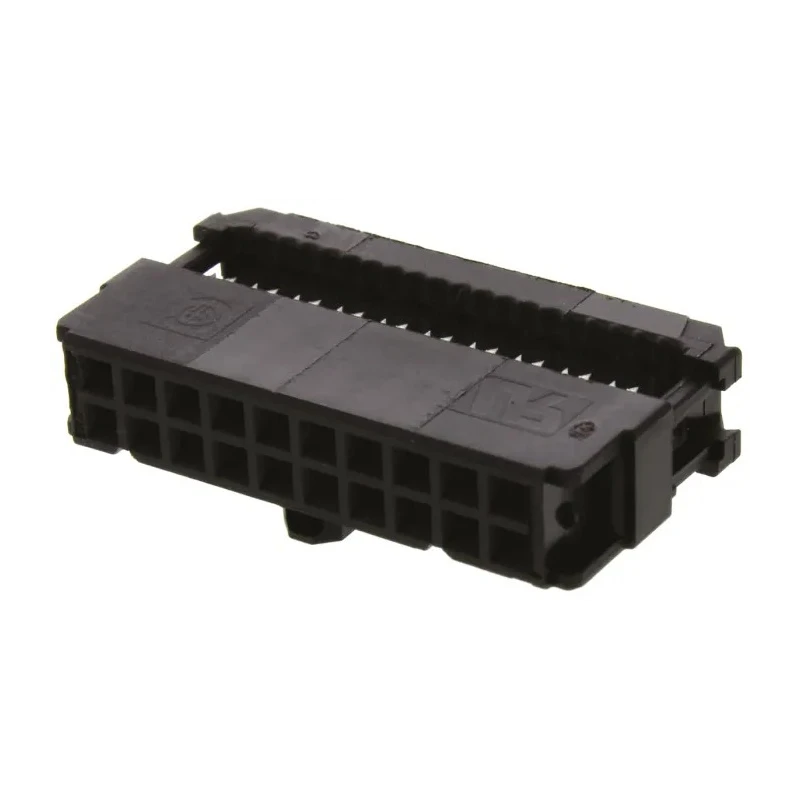

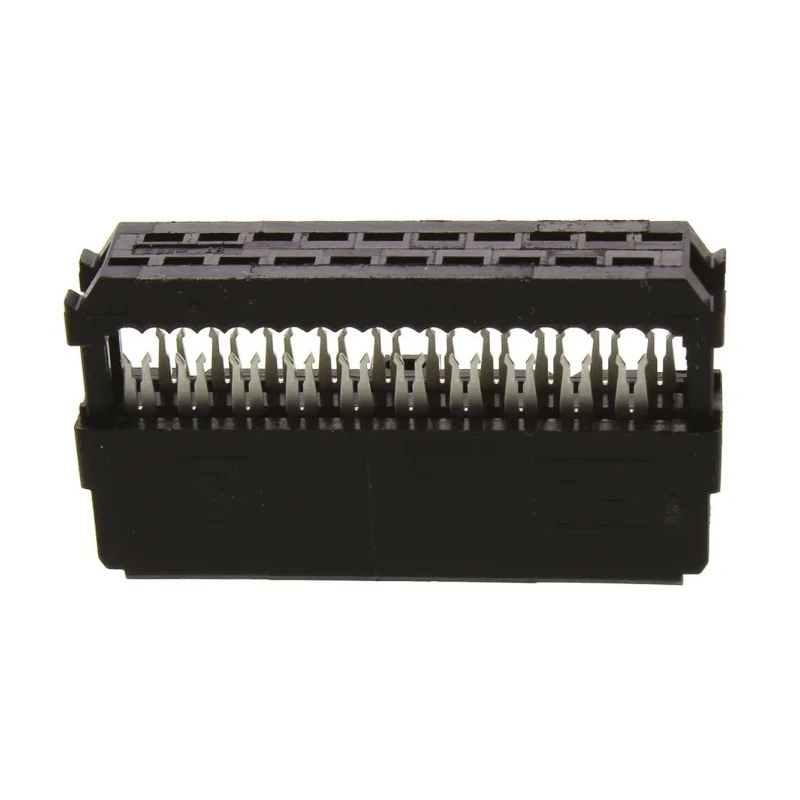

TE Connectivity 20-Way IDC Connector Female for Cable, 2 Row 1658621-4
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Cable |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | AMP-LATCH Novo |
| Termination Type | IDC |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 20 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shrouded/Unshrouded | Shrouded |
| HARTING 20-Way IDC Connector Female for Cable, 2 RowBrand | HARTING |
| TE Connectivity 20-Way IDC Connector Female for Cable, 2 RowBrand | TE Connectivity |
| 3M 20-Way IDC Connector Female for Cable, 2 RowBrand | 3M |
| RS PRO 20-Way IDC Connector Female for Cable, 2 RowBrand | RS PRO |
Key Features
- Features 20 contacts arranged in 2 rows for reliable connection.
- Operates at a voltage rating of 250V and current of 1A.
- Gold over nickel contact plating ensures durability and corrosion resistance.
- Phosphor bronze contact material with thermoplastic housing for robust construction.
- Supports wire sizes of 28-26 AWG with duplex plated tuning fork style contacts.
- Minimum operating temperature is -65°C and maximum is 105°C for harsh environment performance.
- Termination type is IDC providing quick and reliable cable assembly.
- Conforms to AMP-LATCH Novo series with military-approved contact design at an economic cost.
Product Description
TE Connectivity 1658621-4 20-Way IDC Connector Female for Cable, 2 Row is a shrouded, right angle insulation-displacement connector designed to create reliable cable assemblies. It features 20 phosphor bronze contacts arranged in two rows with duplex plated tuning fork style contacts suitable for 28-26 AWG wire sizes.
This AMP-LATCH Novo series connector offers military-approved tuning fork contact design, gold over nickel plating for enhanced durability, and thermoplastic housing made from UL 94V-0 material. It operates within a voltage rating of 250V and a current rating of 1 ampere, supporting a wide temperature range from -65°C to 105°C, making it suitable for demanding industrial and electronic applications.
The connector's right angle orientation enables flexible mounting options for cable to board connections. The IDC termination type provides efficient installation without the need to strip the cable insulation manually. Its design fully complies with DIN 41651 and DIN EN 60352-3/4 standards, ensuring high-quality performance and reliability.
These connectors are predominantly used in telecommunications, electronic components assemblies, and industrial automation for wire-to-board connectivity. The robust construction and high-quality materials ensure long-term stability and electrical integrity under various operating conditions.
Connector system designed for wire-to-board cable connection. Durable tuning fork contacts with military approved design. Gold over nickel plating on contact mating areas for corrosion resistance. Rugged thermoplastic housing material for electrical insulation.
Wide operational temperature range from -65°C to 105°C. Compliant with key DIN industry standards for connectors. Right angle orientation suitable for space-constrained PCB layouts. Compatible with 2.54mm pitch ribbon cables of the AMP-LATCH Novo series.
Efficient insulation displacement termination type for quick assembly. Manufactured in China under TE Connectivity quality standards.
This TE Connectivity 20-Way IDC Connector female model 1658621-4 is ideal for industrial, telecommunications, manufacturing, and electronic assembly uses, where reliable and durable wire-to-board cable connectors are critical. Browse more IDC Connectors and related components in the Electronics category at EnvMart for professional installations.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates at a voltage rating of 250V and a current rating of 1A.
This model supports wire sizes of 28-26 AWG.
The contact material is phosphor bronze, and the housing is made from thermoplastic material.
It can operate within a temperature range of -65°C to 105°C.
It uses insulation displacement contact (IDC) termination for efficient installation without stripping cable insulation.
This model features 20 contacts arranged in 2 rows.
It has a right angle orientation, allowing flexible mounting options for cable to board connections.
The contact pitch is 2.54mm, making it compatible with standard ribbon cables.
The contacts are plated with gold over nickel for enhanced durability and corrosion resistance.
It conforms to the AMP-LATCH Novo series and complies with DIN 41651 and DIN EN 60352-3/4 standards.
It is manufactured in China under TE Connectivity quality standards.
It is suitable for telecommunications, electronic component assemblies, and industrial automation for wire-to-board connectivity.
