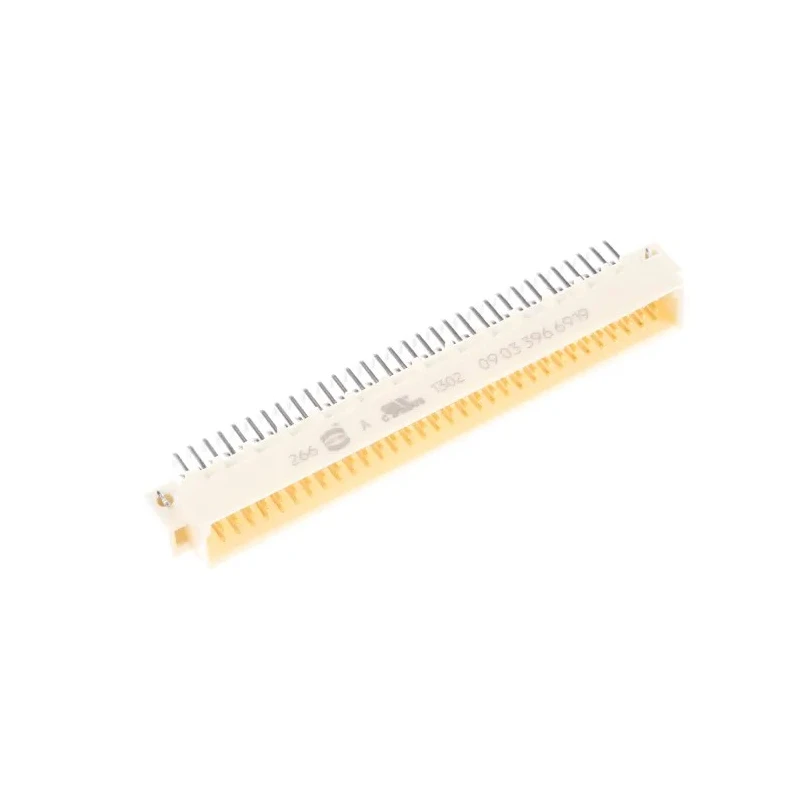

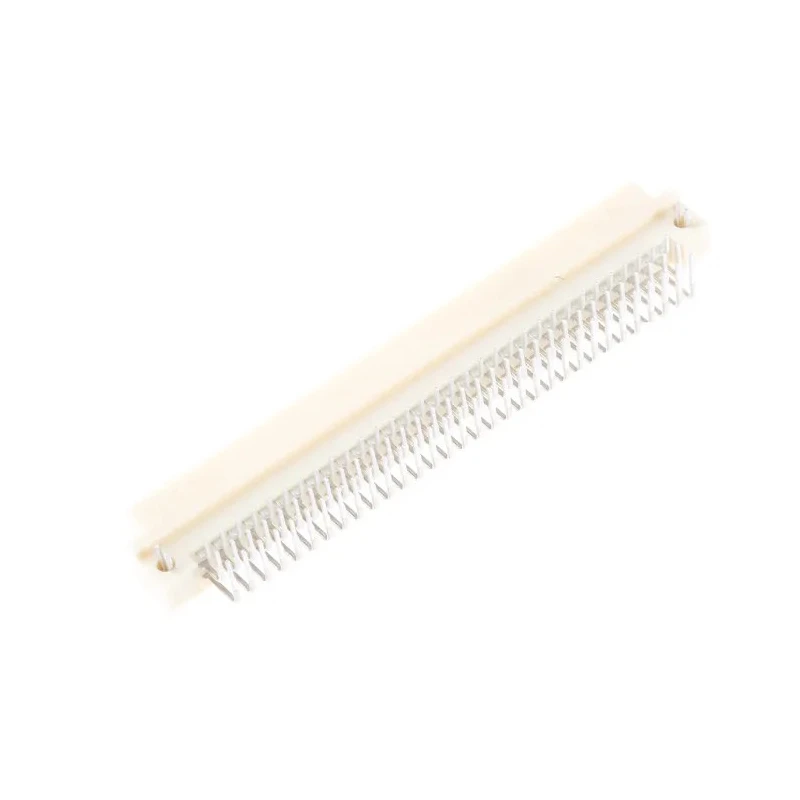

HARTING DIN 41612 96 Way 2.54 mm Pitch Through Hole, Type C/2, Solder Class C2, 3 Row Male Right Angle 09033966919
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | HARTING |
| Orientation | Right Angle |
| Current | 2A |
| Mount Type | Through Hole |
| Housing Material | Fibreglass Reinforced Thermoplastic |
| Contact Material | Copper Alloy |
| Series | DIN 41612 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | C/2 |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 3 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 96 |
| Contact Gender | Male |
| Connector Gender | Male |
| Maximum Contact Resistance | 20mΩ |
| Row Loading | A/B/C |
Key Features
- Through hole mount type ensures solid PCB attachment for durable assemblies.
- Type C/2 solder termination provides secure electrical connections.
- Comprised of three male rows with right angle orientation for compact layouts.
- Contact plating of gold over nickel improves conductivity and corrosion resistance.
- Operates safely between -55°C and 125°C with copper alloy contacts.
- Meets Class C2 and solder Class C2 standards for high temperature endurance.
- Housing made of fiberglass reinforced thermoplastic for mechanical strength.
- Maximum contact resistance is 20 milliohms ensuring minimal signal loss.
Product Description
HARTING 09033966919 DIN 41612 connector is a precision-engineered component designed for robust electronic connections in industrial, manufacturing, and electronic assembly applications.
This 96-way connector features a 2.54 mm pitch with three rows arranged as per Type C/2, ideal for dense PCB designs. It employs a through-hole mounting technique allowing secure and reliable soldered joints, enhanced by its solder termination classified as Class C2 for withstand to high temperature soldering processes, including compatibility with SMC reflow soldering.
The contacts are made from copper alloy and plated with gold over nickel to maximize conductivity and resistance to corrosion while maintaining electrical integrity over extensive usage. It has a male gender and a right-angle orientation which optimizes the connector’s spatial footprint in assemblies.
This connector operates efficiently within a temperature range of -55°C to 125°C, making it suitable for applications exposed to varied environmental conditions. The fiberglass reinforced thermoplastic housing provides durable mechanical protection and electrical insulation for the contact elements.
The maximum contact resistance of 20mΩ and a current rating of 2A per contact ensure reliable signal transmission and power delivery for electronic equipment. Manufactured to high standards in Germany, this DIN 41612 connector is used in rack interconnections, telecommunications, control systems, and industrial automation.
Through hole mount type ensures reliable PCB fixation. Gold over nickel contact plating improves durability and conductivity. Right angle 3-row male configuration aids compact design integration. Wide operational temperature span from -55°C to 125°C.
Class C2 solder termination suitable for high temperature processes. Housing constructed from fiberglass reinforced thermoplastic for strength. Maximum contact resistance of 20 milliohms ensuring signal integrity. Current rating of 2 amperes per contact for varied electronic uses.
Manufactured in Germany with high quality and reliability standards. Browse EnvMart’s Electronics & Electricals category for more reliable connectors and related components from leading brands like HARTING.
Explore more products in our DIN 41612 Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 125°C.
This connector features a pitch size of 2.54 mm.
It has a total of 96 contacts arranged in three rows.
The current rating per contact is 2A.
The contacts are made from copper alloy and are plated with gold over nickel.
It employs a through-hole mounting technique for secure PCB attachment.
The connector features a right-angle orientation, which aids in compact design integration.
The maximum contact resistance is 20 milliohms, ensuring minimal signal loss.
It uses a solder termination classified as Class C2, suitable for high temperature processes.
The minimum operating temperature is -55°C.
This connector is manufactured in Germany.
It is suitable for applications in rack interconnections, telecommunications, control systems, and industrial automation.
