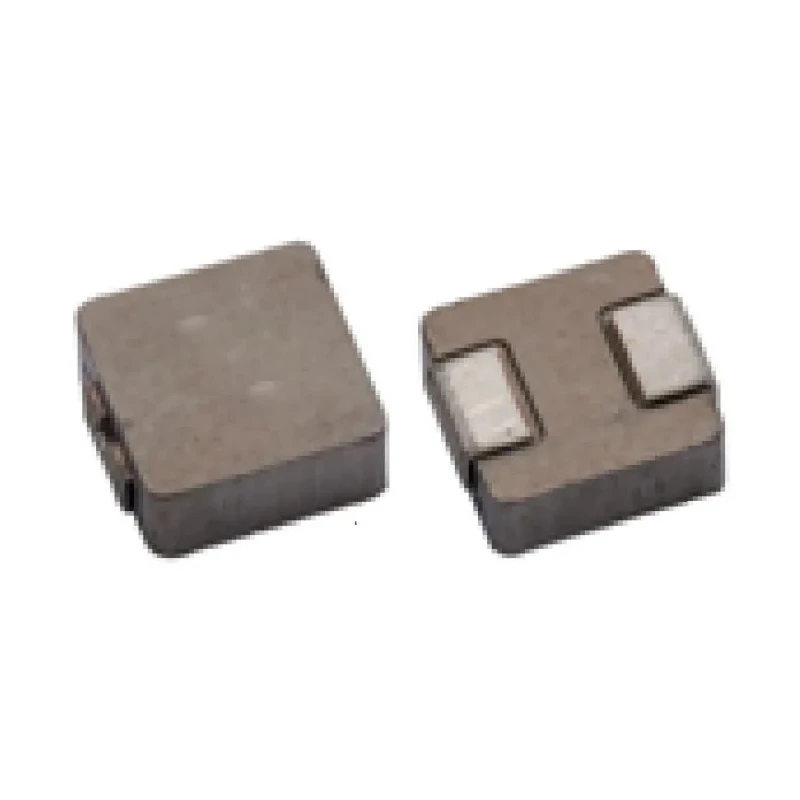

Abracon Shielded Surface Mount Inductor with Iron Core 1 μH Flat Wire Winding ±20% 19 A IDC ASPI-1040HI-1R0M-T05
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 4mm |
| Length | 11.5mm |
| Model | ASPI-1040HI-1R0M-T05 |
| Depth | 4mm |
| Packaging | Tape & Reel |
| Series | ASPI-1040HI |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Iron |
| Inductance | 1μH |
| Standards/Approvals | RoHS |
| Package/Case | Surface Mount |
| Maximum DC Current | 19A |
| Pin Count | 2 |
| Maximum DC Resistance | 3.3mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Inductor Construction | Flat Wire Winding |
Key Features
- The inductor features a shielded structure with flat wire winding construction.
- Operating temperature range from -55°C to 125°C ensures reliability in various environments.
- Surface mount package with tape and reel packaging style facilitates automated assembly.
- Offers a low maximum DC resistance of 3.3 milliohms for minimal power loss.
- Inductance tolerance is ±20 percent, suitable for power supply filtering and DC/DC converter use.
- Compact size with length 11.5mm, height 4mm, and depth 4mm fits in dense PCB layouts.
- The iron core material enhances saturation current capability and stability.
- RoHS compliant and molded design ensures durability and environmental compliance.
Product Description
Abracon ASPI-1040HI-1R0M-T05 is a shielded surface mount inductor with an iron core featuring 1 μH inductance and a maximum DC current rating of 19 A. Its flat wire winding construction delivers low DC resistance, making it ideal for power applications. The compact design measures 11.5mm in length, 4mm in height, and 4mm in depth, fitting seamlessly into tight electronic assemblies.
This inductor operates reliably within a temperature range of -55°C to 125°C, suitable for demanding electronic components including DC/DC converters in notebooks, desktops, servers, and high current power supplies. The package style is surface mount with tape & reel packaging, supporting high volume manufacturing and automated assembly lines.
Its iron core and shielded construction reduce EMI and provide high saturation current capacity, ensuring efficient power filtering and energy storage in electronic circuits. The ±20% inductance tolerance balances performance with manufacturing cost-effectiveness.
The Abracon ASPI-1040HI series is known for low loss due to minimal DC resistance (3.3 milliohms) and a molded, RoHS-compliant package, making it a reliable choice for modern electronics manufacturing.
The inductor features shielded construction for reduced electromagnetic interference. Flat wire winding enhances current carrying capacity and performance. Compact dimensions allow use in space-constrained PCB layouts. Suitable for a variety of industrial and commercial electronics applications.
Provides stable inductance with ±20% tolerance over temperature range.
This product is well-suited for industrial, laboratory, construction, HVAC, manufacturing, water treatment, agricultural, and commercial electronic applications requiring robust and efficient inductors.
Discover more electronic components and Surface Mount Inductors at EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 1 μH.
This inductor has a maximum DC current rating of 19 A.
The maximum DC resistance is 3.3 milliohms, which helps minimize power loss.
The dimensions of this inductor are 11.5 mm in length, 4 mm in height, and 4 mm in depth.
It operates reliably within a temperature range of -55°C to 125°C.
The inductor is packaged in a tape and reel format, facilitating automated assembly.
This model features a flat wire winding construction, which enhances its current carrying capacity.
Yes, this inductor is RoHS compliant, ensuring it meets environmental standards.
The core material of this inductor is iron, which enhances its saturation current capability.
The inductance tolerance is ±20%, which balances performance and manufacturing cost-effectiveness.
It is suitable for various applications including power supply filtering and DC/DC converters in electronic devices.
This inductor has a pin count of 2.
