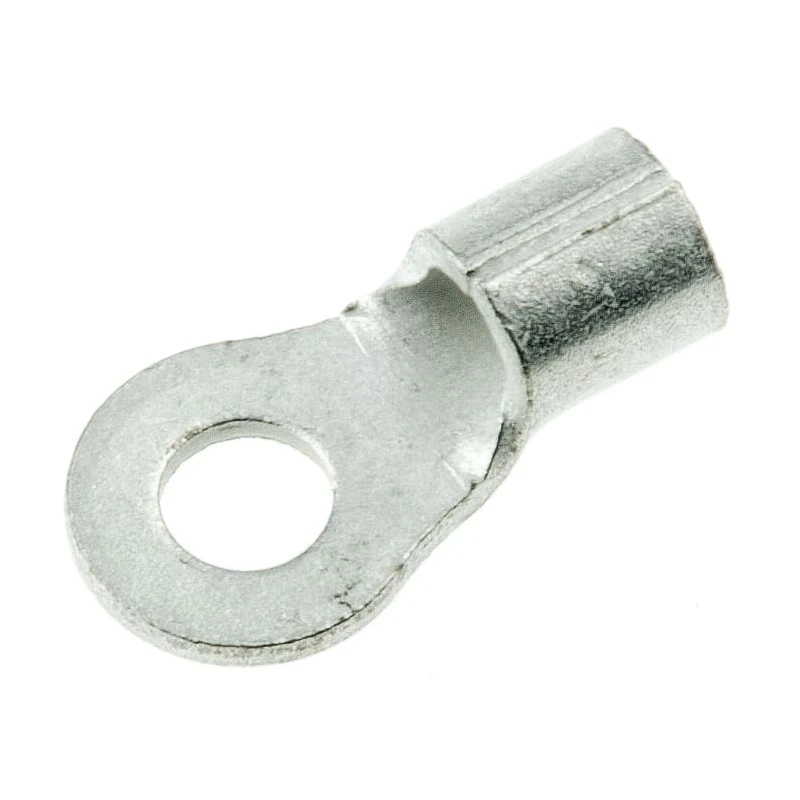

TE Connectivity Solistrand Uninsulated Ring Terminal 2.84 mm Stud Size 16 AWG 14 AWG Wire Size 34119

TE Connectivity 34119 Solistrand Uninsulated Ring Terminal is engineered for terminating solid and stranded wires as well as irregular shaped conductors. This ring terminal features a robust design that maintains superior performance characteristics even in the most demanding industrial environments. Constructed from fine grade high conductivity copper, it guarantees optimal electrical conductivity, while electro tin plating delivers excellent resistance against corrosion.

The barrel includes brazed seams which increase metal strength, enhancing durability under harsh conditions. Its inner serrated surface improves tensile strength and electrical contact after crimping, ensuring secure connectivity. The bell shaped barrel entrance simplifies wire insertion, reducing installation time.

Designed to support wire sizes from 16 AWG to 14 AWG and a stud size of 2.84 mm, this terminal has an overall length of 12.2 mm with an outer ring diameter of 6.35 mm. The contact material is copper with a tin plating, and the terminal thickness is 0.79 mm.

It is rated for a maximum operating temperature of 170°C making it suitable for standard applications requiring high thermal endurance. Compliance with RoHS, UL, and CSA ensures it meets international quality and safety standards.

These Ring Terminals are ideal for applications such as materials handling equipment, motors, heavy equipment, pad and pole mount transformers, switchgear, telecommunications, household appliances, panel boxes, power supplies, and instrumentation and control systems.

Constructed from fine grade high conductivity copper for optimal electrical performance. Electro tin plating provides excellent corrosion resistance. Robust design ideal for harsh industrial environments. Inner serrated barrel ensures maximum tensile strength and electrical contact.

Brazed seams enhance barrel strength for durability. Bell shaped barrel entrance allows quick and easy wire insertion. Rated for maximum operating temperature of 170°C. Suitable for terminating solid, stranded, and irregular shaped conductors.

Complies with RoHS, UL, and CSA standards. Broad application across industrial, telecommunication, and electrical equipment. Explore a wide range of TE Connectivity products at EnvMart for reliable and high-performance electrical components and connectors.
