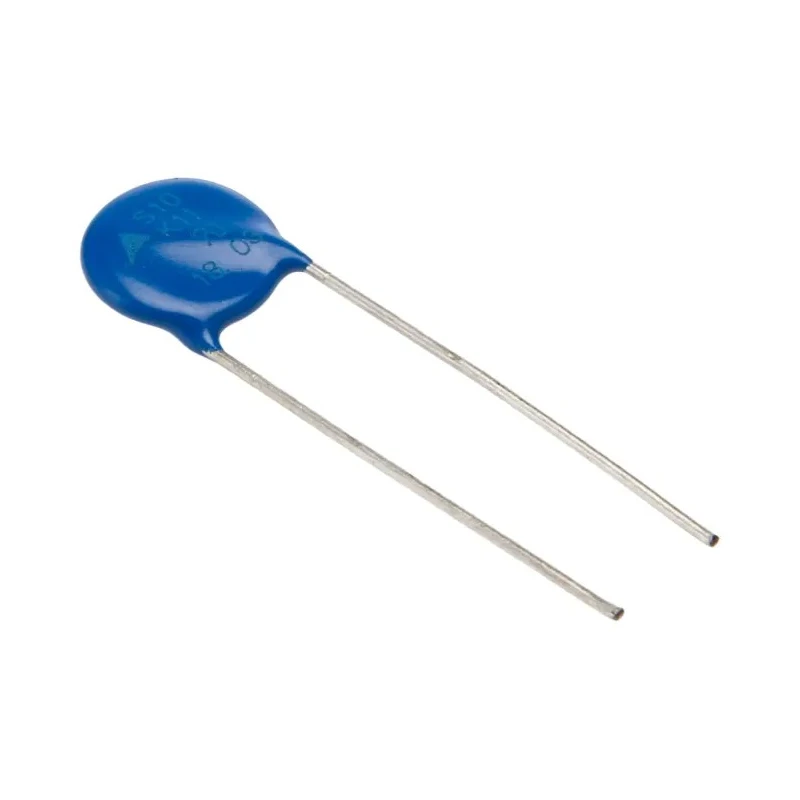

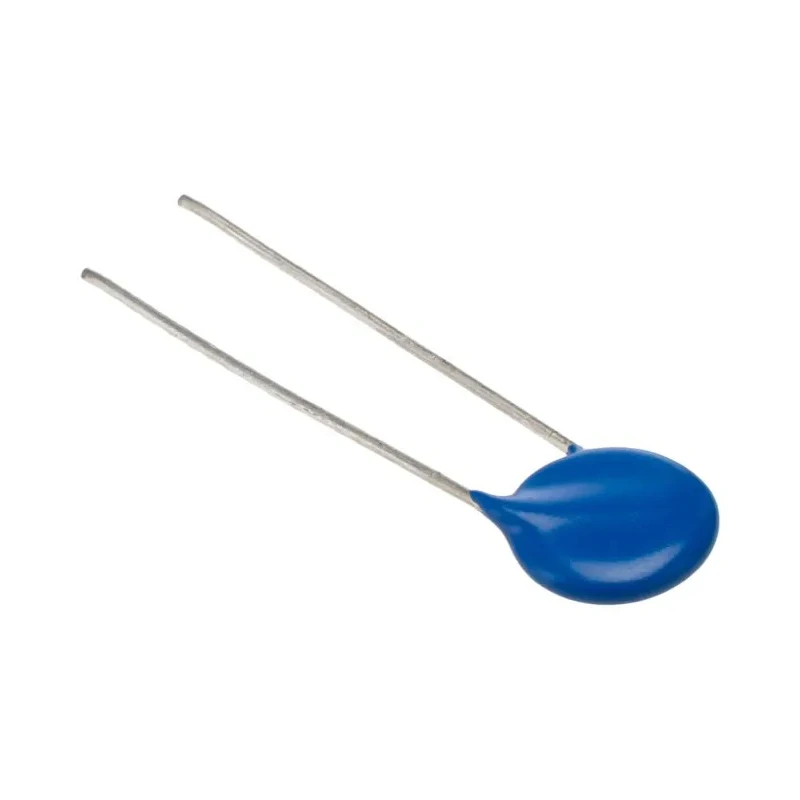

TDK Standard Metal Oxide Varistor 6.25 nF 5 A Clamping 36 V Varistor 18 V B72210S0110K101

Free Delivery in India | Lowest Global Shipping Charges

TDK Standard Metal Oxide Varistor 6.25 nF 5 A Clamping 36 V Varistor 18 V B72210S0110K101



Category Varistor Brand TDK Condition New

Specifications

Country of Origin	India
Diameter	12mm
Brand	TDK
Material	Metal
THICKNESS	4mm
Length	14.5mm
Model	B72210S0110K101
Packaging	Bulk
Series	Standard
Energy Rating	1.7J
Maximum Operating Temperature	85°C
Capacitance	6.25nF
Minimum Operating Temperature	-40°C
Maximum dc Voltage	14V dc
Standards/Approvals	CSA, EC, UL, VDE, CQC
Pin Count	2
Termination Style	Solder
Lead Pitch	7.5mm
Maximum AC Voltage	11V ac
Clamping Voltage VC	36V
Clamping Current	5A
Maximum Surge Current	500A
Varistor Voltage	18 V

Key Features

Standard epoxy-coated ceramic body with tinned copper leads provides durability.
Rated clamping voltage of 36 V and varistor voltage of 18 V for effective voltage protection.
Capacitance value of 6.25 nanofarads ensures energy absorption in transient events.
Designed for maximum surge current handling of 500 A with 1.7 Joules energy rating.
Operating temperature range from -40°C to 85°C suitable for varied environments.
Compact dimensions with 12 mm diameter, 14.5 mm length, and 4 mm thickness for easy PCB integration.
Two-pin solder termination with 7.5 mm lead pitch for secure installation.
Complies with standards and approvals including UL, CSA, VDE, and CQC for assured quality.

Product Description

TDK B72210S0110K101 is a Standard Metal Oxide Varistor featuring a 6.25 nF capacitance and a 5 A clamping current rating, designed to protect electronic circuits from voltage surges. It operates with a varistor voltage of 18 V and clamps at 36 V, effectively suppressing transient voltage spikes and safeguarding sensitive components.

This varistor employs a ceramic body epoxy-coated for enhanced electrical insulation and mechanical strength, with tinned copper wire leads allowing for reliable solder termination. The compact radial design measures 12 mm in diameter, 14.5 mm in length, and 4 mm in thickness, making it suitable for compact PCB layouts.

Rated for a maximum surge current of 500 A (8/20 µs waveform) and an energy absorption of 1.7 Joules, this component offers robust protection in industrial, commercial, and consumer electronics. Its operating temperature range spans from -40°C to 85°C, ensuring reliable performance across environmental conditions.

Lead pitch is 7.5 mm, facilitating easy mounting in bulk packaging for manufacturing integration. The product meets multiple international standards and approvals, including UL, CSA, VDE, and CQC, confirming its quality and safety compliance.

Standard metal oxide varistor with epoxy-coated ceramic body and tinned copper leads. Capacitance: 6.25 nF, suitable for transient voltage suppression. Clamping voltage of 36 V with a varistor voltage rating of 18 V. Handles surge currents up to 500 A with an energy rating of 1.7 Joules.

Temperature range: -40°C to 85°C for wide environmental adaptability. Compact size ensures easy PCB integration with 7.5 mm lead pitch. Complies with UL, CSA, VDE, and CQC approvals for quality assurance. Bulk packaging facilitates efficient production use.

This TDK metal oxide varistor is suitable for electrical and electronic circuits requiring reliable voltage surge protection. Its robust construction and international certifications make it ideal for industrial, commercial, and laboratory surge protection applications. Browse EnvMart’s Electronics Components > Varistors category for related surge protection devices and TDK brand products.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The clamping voltage of this model is 36 V, which helps protect circuits from voltage surges.

This varistor can handle a maximum surge current of 500 A, making it suitable for protecting sensitive components from transient voltage spikes.

The capacitance value of this model is 6.25 nanofarads, which aids in energy absorption during transient events.

This unit has a diameter of 12 mm, a length of 14.5 mm, and a thickness of 4 mm, allowing for easy integration into PCBs.

It operates effectively within a temperature range of -40°C to 85°C, suitable for various environmental conditions.

This model features a two-pin solder termination style with a lead pitch of 7.5 mm for secure installation.

The energy absorption rating of this varistor is 1.7 Joules, providing effective protection against voltage surges.

It complies with multiple international standards and approvals including UL, CSA, VDE, and CQC, ensuring quality and safety.

The varistor voltage rating is 18 V, which is essential for effective voltage protection in electronic circuits.

The varistor features a standard epoxy-coated ceramic body and tinned copper leads for durability and reliable soldering.

This model is available in bulk packaging, facilitating efficient integration into manufacturing processes.

This varistor is designed for use in electrical and electronic circuits requiring reliable voltage surge protection, suitable for industrial, commercial, and consumer electronics.
