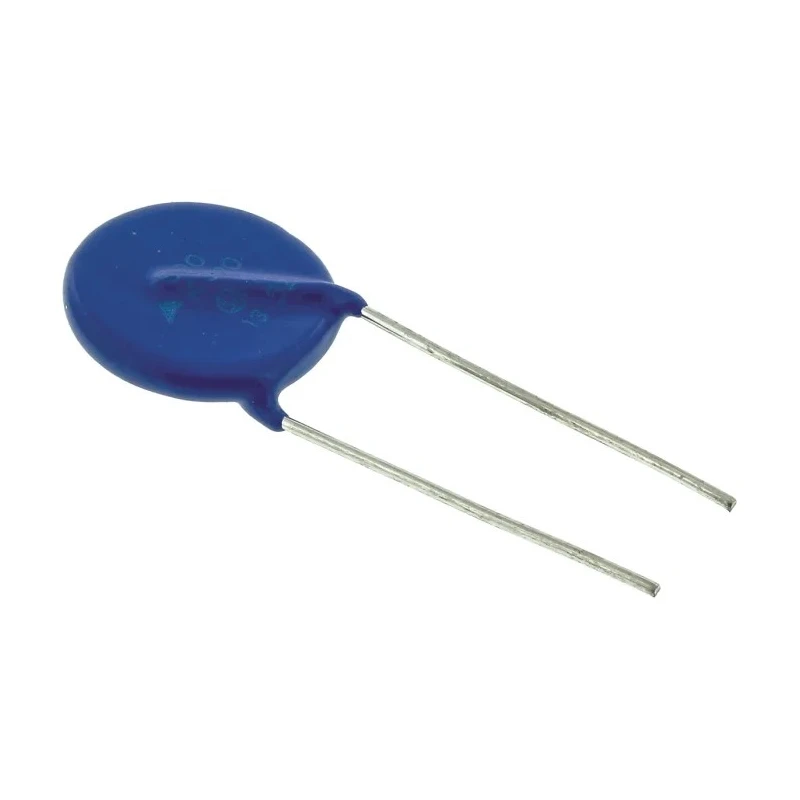

TDK Standard Metal Oxide Varistor 780 pF 100 A Clamping 2970 V Lead Mount B72220S0301K101

Free Delivery in India | Lowest Global Shipping Charges

TDK Standard Metal Oxide Varistor 780 pF 100 A Clamping 2970 V Lead Mount B72220S0301K101



Category Varistor Brand TDK Condition New

Specifications

Country of Origin	China
Diameter	21.5mm
Brand	TDK
Material	Metal
THICKNESS	5.6mm
Length	50.5mm
Model	B72220S0301K101
Depth	5.6mm
Mount Type	Lead
Series	Standard
Energy Rating	1J
Maximum Operating Temperature	85°C
Capacitance	780pF
Minimum Operating Temperature	-40°C
Maximum dc Voltage	1465V dc
Standards/Approvals	IEC, VDE, CSA, CQC, UL
Lead Pitch	10mm
Maximum AC Voltage	1100V ac
Clamping Voltage VC	2970V
Clamping Current	100A
Maximum Surge Current	8kA
Varistor Voltage	470 V
Panasonic, V Surge Absorber 900 pF 100 A, Clamping 40 V, Varistor 470 VBrand	Panasonic

Key Features

Standard series metal oxide varistor designed for industrial and electronic applications.
Capacitance of 780 pF enables effective energy absorption during transient voltage spikes.
Clamping voltage of 2970 V ensures safe operation under surge conditions.
Lead mount type with tinned copper wire leads and epoxy-coated ceramic body.
Operational temperature range from -40°C to 85°C for reliable performance.
Maximum AC voltage rating of 1100 V and maximum DC voltage of 1465 V.
Tinned copper leads with 10 mm lead pitch for easy PCB mounting.
Complies with IEC, VDE, CSA, CQC, and UL standards for quality and safety.

Product Description

TDK B72220S0301K101 Standard Metal Oxide Varistor features a capacitance of 780 pF and a clamping current of 100 A, designed for effective surge protection in electronics and industrial equipment. It is lead mounted, constructed with a ceramic body coated in epoxy resin and tinned copper wire leads, optimized to absorb transient voltage spikes safely and reliably.

This varistor maintains a clamping voltage of 2970 V and a varistor voltage of 470 V, suitable for protecting sensitive components from high-energy electrical surges. It supports maximum AC and DC voltage ratings of 1100 V and 1465 V respectively, and can withstand surge currents up to 8 kA (8/20 μs), ensuring robust protection in demanding environments.

Engineered for durability, this device operates effectively within a temperature range of -40°C to 85°C. Its compact dimensions include a diameter of 21.5 mm, length of 50.5 mm, thickness and depth of 5.6 mm, making it suitable for various electronic assemblies. The lead pitch of 10 mm facilitates easy and secure PCB attachment.

The TDK standard metal oxide varistor conforms to IEC, VDE, CSA, CQC, and UL approvals, guaranteeing compliance with international safety and performance standards. With an energy rating of 1 Joule, it effectively handles surge energies common in industrial, power supply, and electronic component applications.

Typical applications include surge protection in electronic circuits, power supplies, and industrial control systems requiring reliable voltage spike suppression. This Varistor is ideal for laboratory, manufacturing, industrial automation, and power control environments.

The product is manufactured in China and maintains a New product condition. The packaging ensures safe delivery without damage to the delicate ceramic body and leads. Standard series metal oxide design for surge protection applications.

780 pF capacitance suitable for transient voltage suppression. 2970 V clamping voltage protects equipment from high voltage surges. Lead mount with epoxy coating for durability and insulation. Temperature range from -40°C to 85°C for broad operating conditions.

Certified to multiple international safety and quality standards. High surge current rating of 8 kA ensures heavy-duty protection. Compact size with precise lead pitch for PCB mounting. Energy rating of 1 Joule for effective energy dissipation.

Explore more electronic components and surge protection devices in EnvMart's comprehensive catalog for industrial and laboratory use.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The capacitance of this varistor is 780 pF, which enables effective energy absorption during transient voltage spikes.

The maximum clamping voltage for this model is 2970 V, ensuring safe operation under surge conditions.

This varistor has a maximum surge current rating of 8 kA, which provides robust protection against high-energy electrical surges.

The maximum AC voltage rating is 1100 V, and the maximum DC voltage rating is 1465 V.

The operational temperature range for this model is from -40°C to 85°C, allowing for reliable performance in various conditions.

The varistor has a diameter of 21.5 mm, a length of 50.5 mm, and a thickness of 5.6 mm.

This model features a lead mount type with tinned copper wire leads, facilitating easy PCB mounting with a lead pitch of 10 mm.

The energy rating of this varistor is 1 Joule, which allows it to effectively handle surge energies common in various applications.

This model complies with IEC, VDE, CSA, CQC, and UL standards, ensuring quality and safety in its applications.

The varistor voltage for this device is 470 V, which helps protect sensitive components from high-energy electrical surges.

This varistor is suitable for surge protection in electronic circuits, power supplies, and industrial control systems requiring reliable voltage spike suppression.

This varistor is manufactured in China, ensuring compliance with international safety and performance standards.
