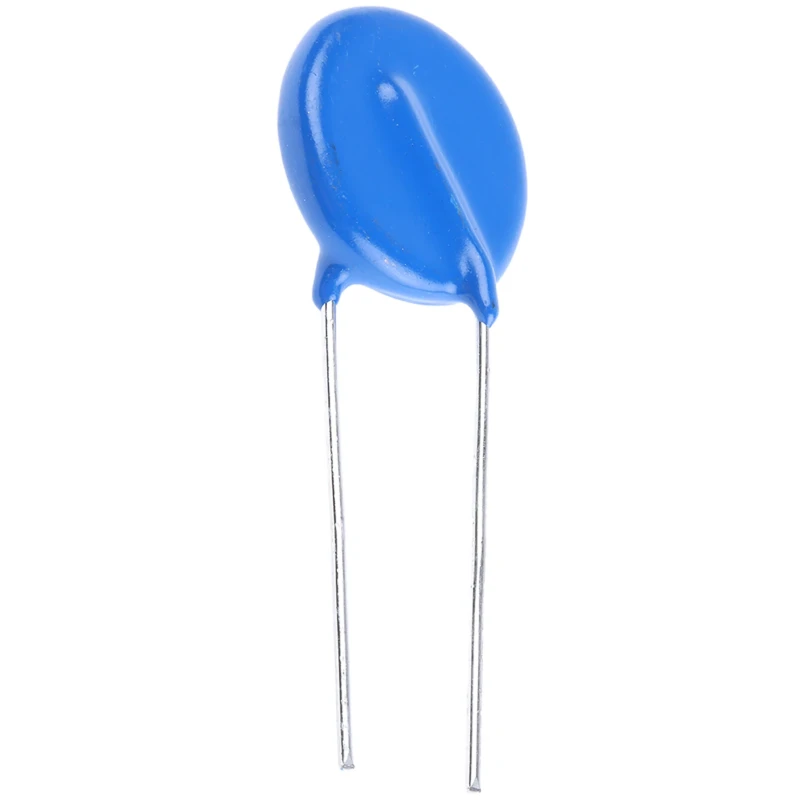

TDK Standard Metal Oxide Varistor 750 V Varistor Voltage 500 pF Capacitance 100 A Clamping Current 2970 V B72220S0461K101

Free Delivery in India | Lowest Global Shipping Charges

TDK Standard Metal Oxide Varistor 750 V Varistor Voltage 500 pF Capacitance 100 A Clamping Current 2970 V B72220S0461K101



Category Varistor Brand TDK Condition New

Specifications

Country of Origin	India
Diameter	21.5mm
Brand	TDK
Material	Metal
THICKNESS	6.8mm
Length	51mm
Model	B72220S0461K101
Depth	6.8mm
Mount Type	Lead
Series	Standard
Energy Rating	1J
Maximum Operating Temperature	85°C
Capacitance	500pF
Minimum Operating Temperature	-40°C
Maximum dc Voltage	1465V dc
Standards/Approvals	IEC, CQC, UL, VDE, CSA
Pin Count	2
Lead Pitch	10mm
Maximum AC Voltage	1100V ac
Clamping Voltage VC	2970V
Clamping Current	100A
Maximum Surge Current	8kA
Varistor Voltage	750 V

Key Features

Rated clamping voltage of 2970 V for effective voltage surge control.
Capacitance of 500 pF to meet high-frequency requirements.
Maximum clamping current of 100 A for reliable protection during transient surges.
Constructed with epoxy-coated ceramic body and tinned copper leads for durability.
Lead mount type with 2 pins and 10 mm lead pitch for easy PCB mounting.
Operates reliably at temperatures from -40°C to 85°C.
Complies with IEC, CQC, UL, VDE, and CSA standards for quality assurance.
Energy rating of 1 J suitable for moderate energy surges.

Product Description

TDK B72220S0461K101 Standard Metal Oxide Varistor is engineered for surge protection in electronic and electrical circuits. With a varistor voltage of 750 V and a clamping voltage of 2970 V, it efficiently absorbs transient voltage surges, safeguarding sensitive components from damage.

The varistor features a capacitance of 500 pF, which makes it suitable for circuits requiring low capacitance to maintain signal integrity at high frequencies. Its maximum clamping current of 100 A ensures robust protection against current spikes.

Constructed with a ceramic core coated with epoxy resin and equipped with tinned copper leads, the device provides mechanical strength and reliable electrical connections. The lead mount type with a 10 mm lead pitch and two pins allows easy integration into printed circuit boards (PCB).

Operating within a temperature range of -40°C to 85°C, this device is suitable for various industrial, commercial, and residential electronic applications, including power supplies, control panels, and surge protection equipment.

The varistor complies with several international standards - IEC, CQC, UL, VDE, and CSA - ensuring high quality and safety in operation. Its dimensions include a diameter of 21.5 mm, length of 51 mm, and thickness/depth of 6.8 mm.

Rated clamping voltage of 2970 V for effective voltage surge control. Capacitance of 500 pF to meet high-frequency requirements. Maximum clamping current of 100 A for reliable protection during transient surges. Constructed with epoxy-coated ceramic body and tinned copper leads for durability.

Lead mount type with 2 pins and 10 mm lead pitch for easy PCB mounting. Operates reliably at temperatures from -40°C to 85°C. Complies with IEC, CQC, UL, VDE, and CSA standards for quality assurance. Dimensions: 21.5 mm diameter, 51 mm length, 6.8 mm thickness and depth.

Energy rating of 1 J suitable for moderate energy surges. Standard series model suitable for various electronic component and power applications.

This TDK metal oxide Varistor is ideal for industrial electronics, power distribution systems, and surge protection in consumer electronics. It ensures extended device life and reduced downtime due to voltage transients.
