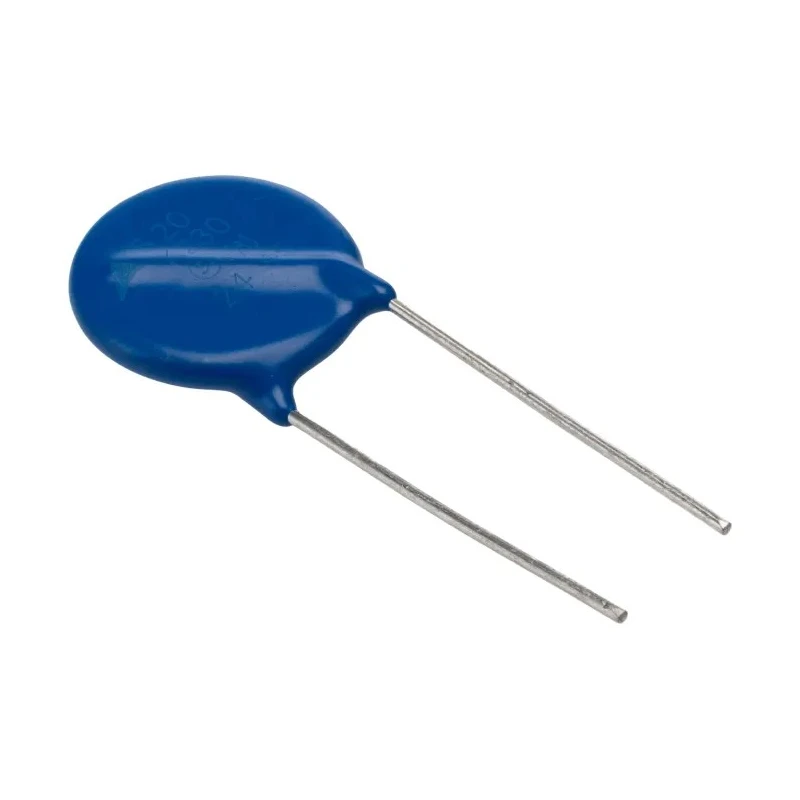

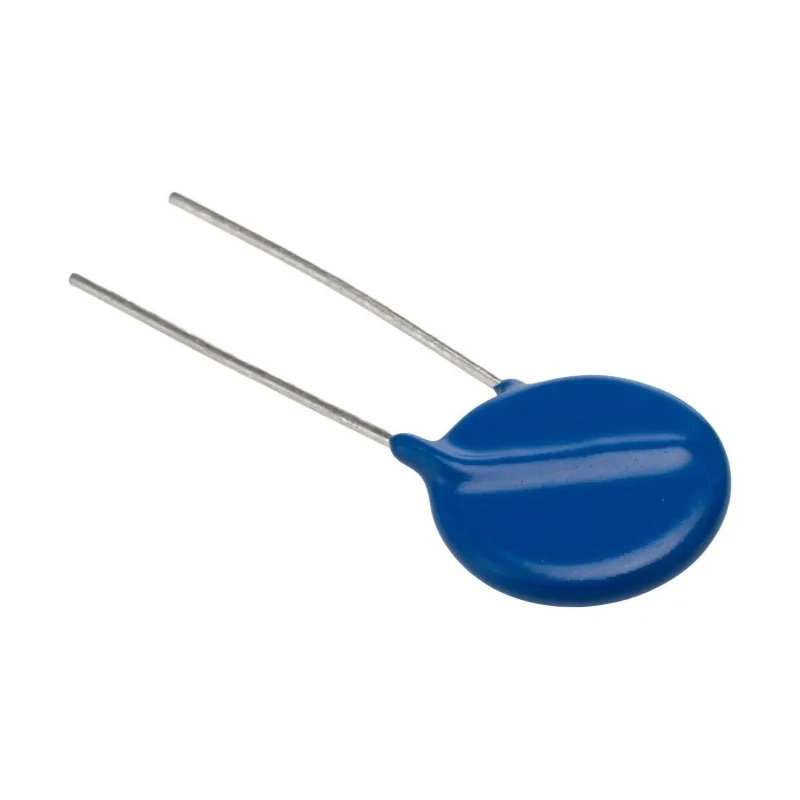

TDK Metal Oxide Varistor Standard Series 1 nF 100 A Clamping 595 V Diameter 21.5 mm B72220S0231K101

TDK B72220S0231K101 Metal Oxide Varistor standard series is designed for efficient surge protection in electronic components and power supply circuits. It features a capacitance of 1 nF and a high clamping current rating of 100 A, making it suitable for absorbing transient voltages and protecting delicate electronics.

This varistor operates reliably at a maximum AC voltage of 230 V and a maximum DC voltage of 300 V, with a clamping voltage of 595 V to limit excessive voltage spikes. The metal oxide material offers robust performance, withstanding surge currents up to 8 kA, and an energy rating of 130 Joules to handle significant surge events.

Its radial epoxy-coated ceramic body, with a diameter of 21.5 mm and thickness of 5.1 mm, provides excellent mechanical and electrical stability. The varistor includes solder terminations with a 10 mm lead pitch, facilitating straightforward PCB mounting and integration. It supports a wide operating temperature range from -40°C to 85°C, ensuring reliability under varied environmental conditions.

Designed according to industry standards such as VDE, UL, IEC, CSA, and CQC, this component meets stringent safety and quality requirements for industrial, manufacturing, and electronic applications. Typical uses include surge protection in power supplies, consumer electronics, and industrial control systems.

Capacitance of 1 nF ensures effective energy absorption in transient voltage conditions. Clamping voltage rated at 595 V provides reliable overvoltage protection. Maximum AC voltage operation up to 230 V AC for various electronic applications.

Metal oxide varistor material offers excellent durability and performance. Epoxy-coated radial ceramic body ensures high mechanical stability and insulation. Solder termination style with 10 mm lead pitch for easy PCB mounting.

Operating temperature range from -40°C to 85°C supports diverse environments. Energy rating of 130 Joules suitable for handling typical surge events. Diameter of 21.5 mm and length of 25.5 mm for compact installation space.

Compliance with VDE, UL, IEC, CSA, and CQC standards guarantees quality and safety.

This product is ideal for applications in electronics manufacturing, power supply units, industrial automation, and equipment requiring surge protection to ensure longevity and safety. For more technical components and protection devices, explore the comprehensive selection available in the Electronic Components category on EnvMart.
