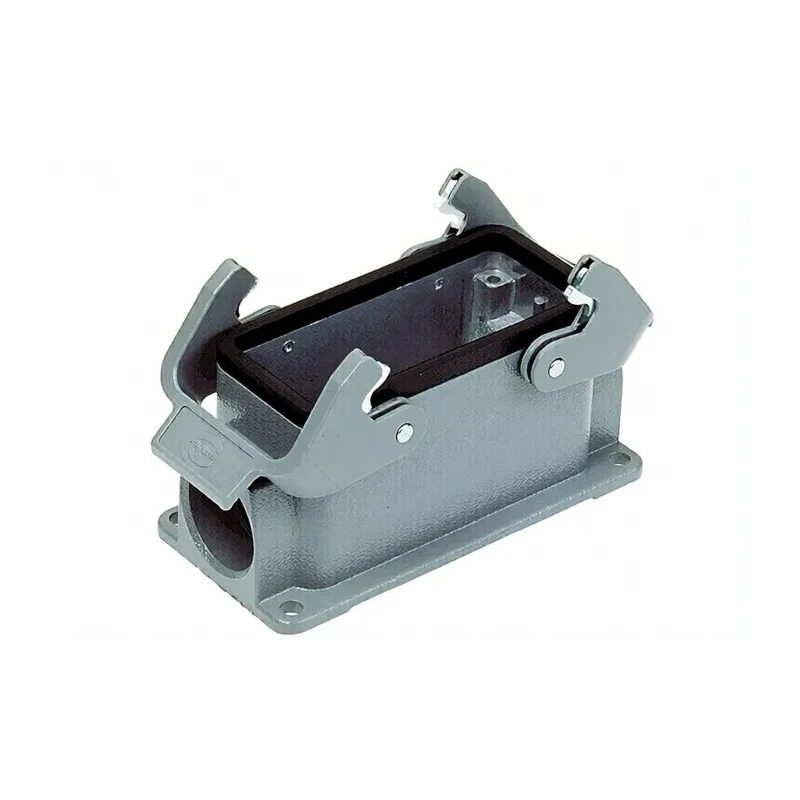

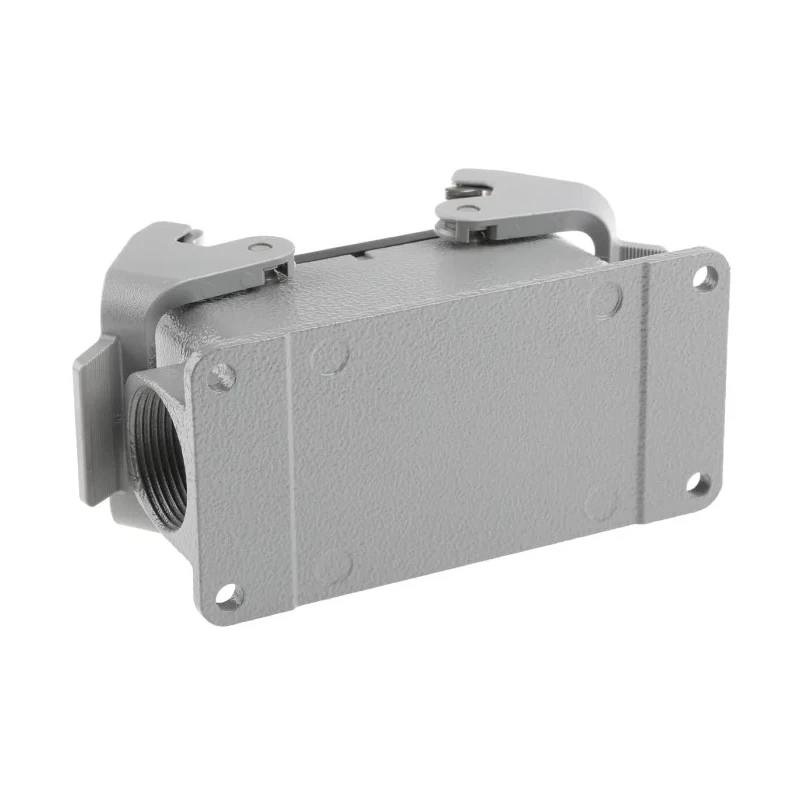

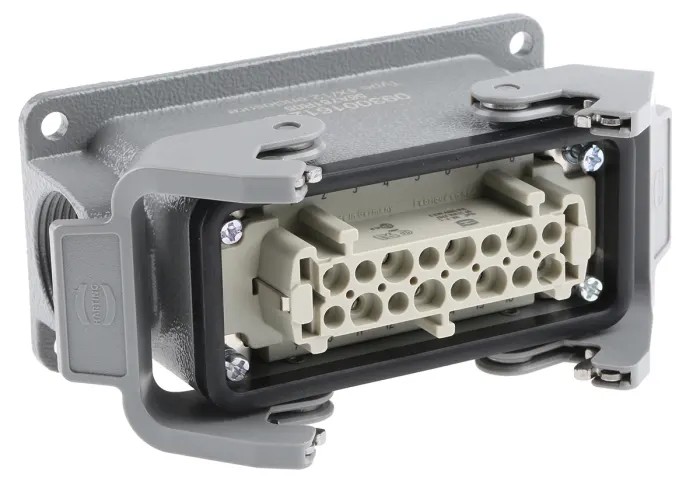

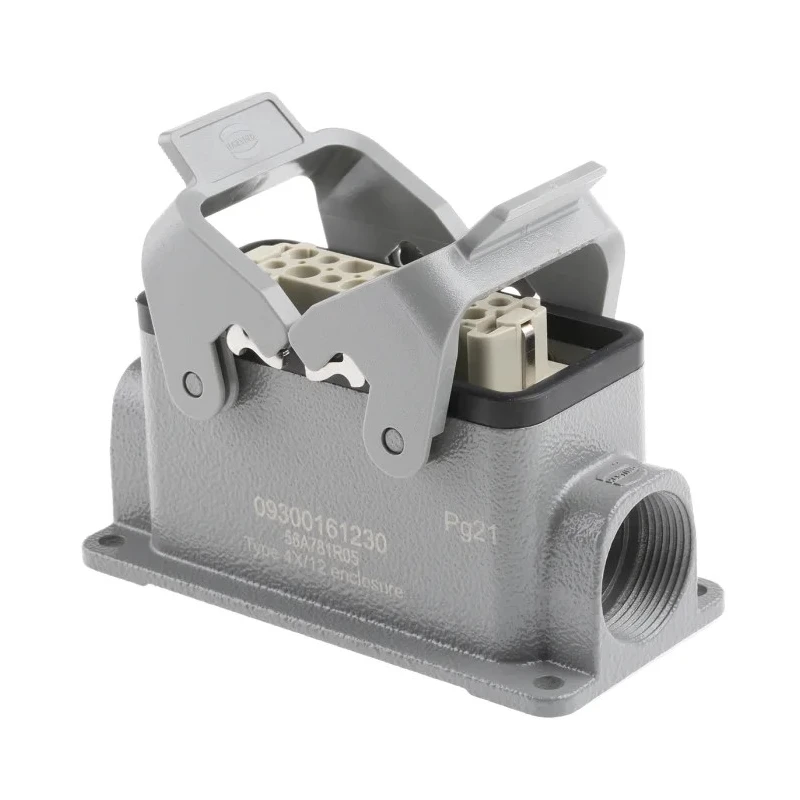

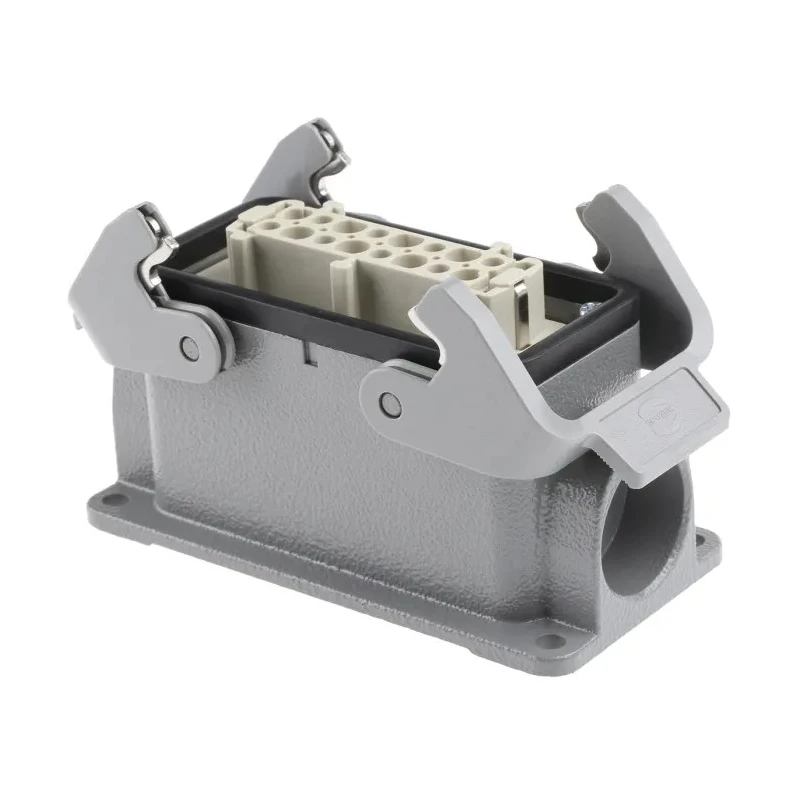

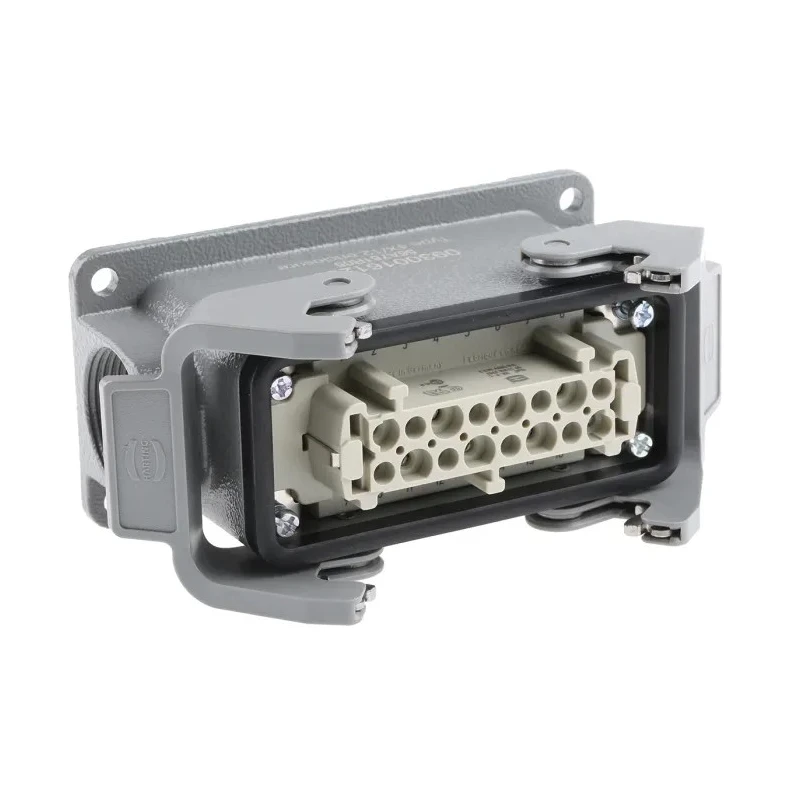

HARTING Heavy Duty Power Connector Panel Screw 16 Way 16A Han E Female 500V 09300161230+09330162701
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 500V |
| Brand | HARTING |
| Orientation | Straight |
| Current | 16A |
| Model | 09300161230+09330162701 |
| IP Rating | IP44 |
| Mount Type | Panel |
| Contact Material | Copper Alloy |
| Series | Han E |
| Termination Type | Screw |
| Maximum Operating Temperature | 125°C |
| Thread Size | PG21 |
| Minimum Operating Temperature | -40°C |
| Pole Format | 16+PE |
| Contact Plating | Silver |
| Number of Contacts | 16 |
| Contact Gender | Female |
| Connector Gender | Female |
Key Features
- The connector features 16 contacts with a 16+PE pole format to support power applications.
- It operates at 16A current and 500V voltage ensuring reliable electric performance.
- The Han E series design ensures a straight orientation with female contact gender and silver-plated copper alloy contacts.
- The housing is rated IP44 for dust and splash resistance and supports wide operating temperatures from -40°C to 125°C.
- The termination methods use secure screw connections for durable panel mounting applications.
- It features a PG21 thread size for cable entry and is suitable for harsh industrial environments.
- The connector is manufactured in Germany, ensuring premium build quality and reliability.
- The powder-coated aluminium body provides corrosion resistance and mechanical strength.
Product Description
HARTING 09300161230+09330162701 Heavy Duty Power Connector, Panel Mount with Screw Termination, 16 Way, 16A Current Rating, and 500V Voltage.
This connector is engineered for heavy-duty industrial power transmission, designed for surface-mounted installations requiring reliable environmental protection and frequent mating cycles. The connector combines a low-profile aluminium housing with a single side cable entry featuring a PG21 threaded gland interface, providing excellent sealing and mechanical resilience.
The IP44-rated housing ensures protection against dust and water splashes, suitable for use in harsh industrial environments. Operating temperature ranges from -40°C to +125°C, making it adaptable for various demanding applications. Its contacts are made of silver-plated copper alloy to maintain high conductivity and corrosion resistance.
Han‑Easy Lock® double lever system enables fast, secure mating and unmating, rated for over 500 mating cycles, supporting frequent maintenance schedules. The powder-coated aluminium body reduces corrosion, enhancing product longevity.
Typical applications include power feed to automated assembly machinery, connection panels in electrical control cabinets, heavy-current distribution in factories, rail vehicle interior power interfaces, and wiring in harsh-environment plant and equipment. Its straight orientation and female contact gender cater to versatile industrial power connection needs.
The sealing is performed using NBR elastomer, while polycarbonate locking levers with stainless-steel components provide mechanical strength. The connector is manufactured in Germany ensuring top-notch quality and reliability.

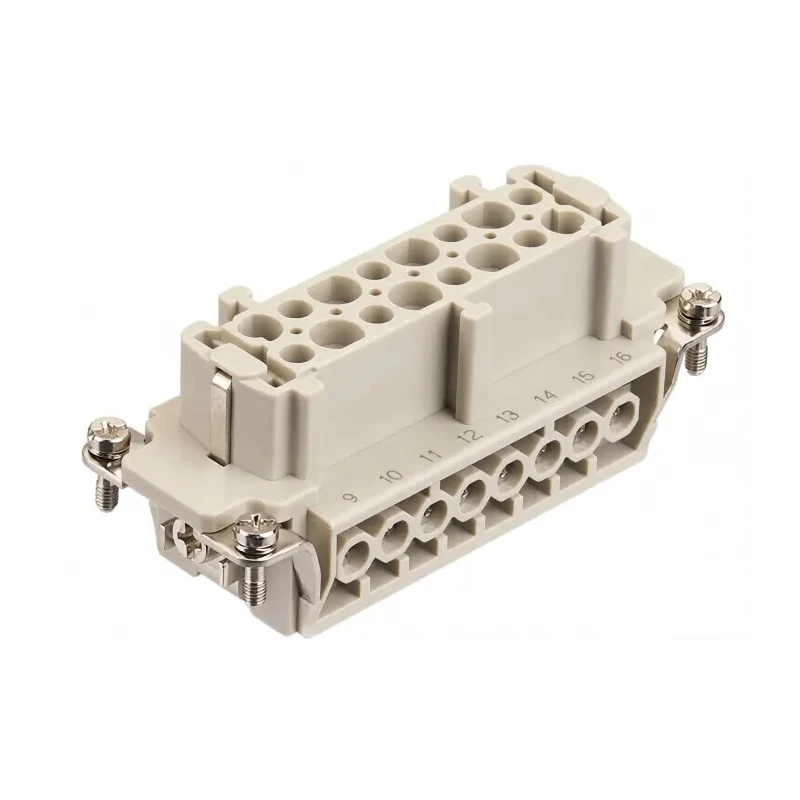

The product consists of a housing and insert supplied together for ready installation. Double lever locking mechanism provides robust and secure connections. Designed for applications requiring frequent maintenance and durability.
Powder-coated aluminum body minimizes corrosion risk in harsh environments. Complies with recognized environmental and electrical industrial standards for safety and reliability. Explore the Electronics & Electricals Power Connectors category for more high-quality Heavy Duty Power Connectors and related industrial components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates at a current rating of 16A and a voltage rating of 500V.
The connector has an IP44 rating, providing protection against dust and water splashes.
It can operate within a temperature range of -40°C to +125°C.
This model features 16 contacts with a 16+PE pole format.
It utilizes screw termination for secure connections.
The contacts are made of silver-plated copper alloy, ensuring high conductivity and corrosion resistance.
It features a PG21 thread size for cable entry.
The connector has a straight orientation with female contact gender.
It is manufactured in Germany, ensuring quality and reliability.
Typical applications include power feed to automated machinery, connection panels in control cabinets, and heavy-current distribution in factories.
It features a Han‑Easy Lock® double lever system for fast and secure mating and unmating.
The housing is made of powder-coated aluminum, providing corrosion resistance and mechanical strength.
