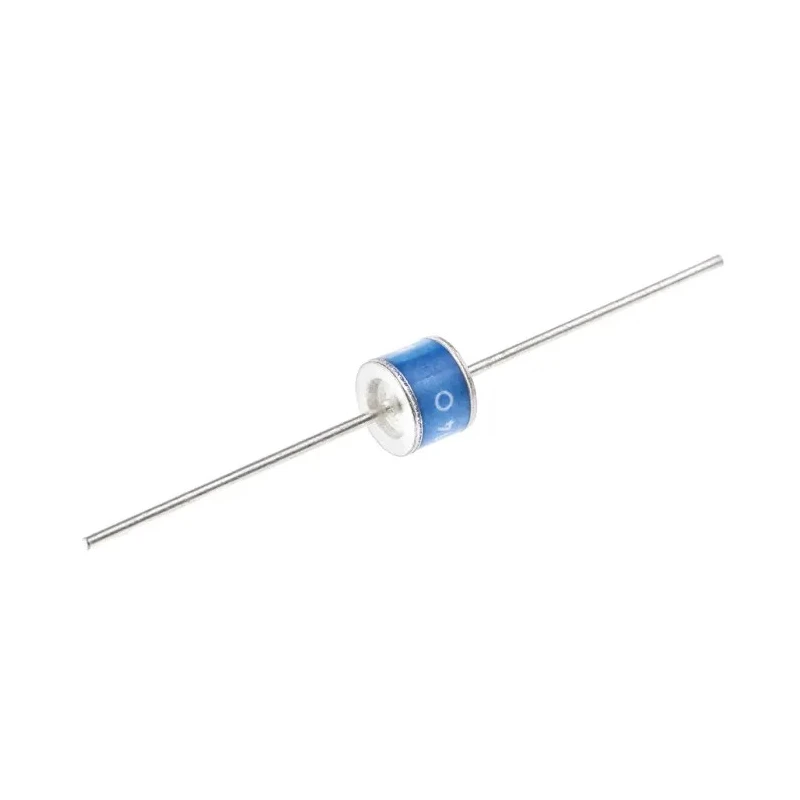

TDK Gas Discharge Tube Through Hole 2 Electrode Arrester 90 V DC 20 kA B88069X1380S102
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Length | 6.05mm |
| Model | B88069X1380S102 |
| Mount Type | Through Hole |
| Series | EHV |
| Maximum Operating Temperature | 90°C |
| Capacitance | 1.5pF |
| Minimum Operating Temperature | -40°C |
| Suppressor Type | 2 Electrode Arrester |
| Maximum Voltage | 90V dc |
| Maximum Surge Current | 20kA |
| DC Spark Over Voltage | 90V dc |
| Impulse Spark Over Voltage | 550V |
| TDK, EHV 230 V 20 kA, Through Hole 2 Electrode Arrester Gas Discharge TubeBrand | TDK |
| EPCOS, EHV 90V 20kA, SMD 2 Electrode Arrester Gas Discharge TubeBrand | EPCOS |
Key Features
- Miniature gas filled 2 electrode arrester tube designed for surge protection applications.
- Maximum surge current capacity of 20 kA to handle high transient surges.
- Spark over voltage rated at 90 V DC for protection against transient voltages.
- Impulse spark over voltage of 550 V ensures reliable operation under transient impulses.
- Through hole mount type for easy PCB integration in telecommunication and subscriber equipment.
- Operating temperature range from -40°C to 90°C suitable for harsh environments.
- Low capacitance of 1.5 pF for minimal signal interference in sensitive circuits.
- Compliant with UL 497B, ITU-T Rec. K.12, IEC 60068-1, IEC 61643-311 and RoHS standards.
Product Description
TDK B88069X1380S102 gas discharge tube is a precision miniature, gas filled surge protection component designed to protect telecommunication equipment and subscriber-end devices from transient overvoltages with a 20 kA surge current rating and a spark over voltage of 90 V DC.
This 2 electrode arrester through hole gas discharge tube is engineered to withstand impulse voltages up to 550 V, ensuring reliable safeguarding of sensitive electronic systems in industrial, laboratory, telecommunications, and HVAC applications.
The device features a low capacitance of 1.5 pF, minimizing signal distortion, and supports a wide operating temperature range from -40°C to 90°C, suitable for various environmental conditions. Its compact 6.05 mm length allows easy integration into printed circuit boards using through hole mount technology, typical in distribution frames and subscriber equipment setups.
Certified to standards including UL 497B, ITU-T Rec. K.12, IEC 60068-1, IEC 61643-311, and RoHS compliant, the B88069X1380S102 ensures high quality and environmentally responsible manufacturing.
Miniature gas filled 2 electrode arrester tube designed for surge protection applications. Maximum surge current capacity of 20 kA to handle high transient surges. Spark over voltage rated at 90 V DC for protection against transient voltages.
Impulse spark over voltage of 550 V ensures reliable operation under transient impulses. Through hole mount type for easy PCB integration in telecommunication and subscriber equipment. Operating temperature range from -40°C to 90°C suitable for harsh environments.
Low capacitance of 1.5 pF for minimal signal interference in sensitive circuits. Compliant with UL 497B, ITU-T Rec. K.12, IEC 60068-1, IEC 61643-311 and RoHS standards. Length of 6.05 mm enables compact installation in distribution frames and telecommunication systems.
This gas discharge tube is ideal for industrial and commercial telecommunications equipment, serving as a critical component in protecting electronic circuits from damage caused by voltage surges and transient pulses.
Explore more electronic protection devices in the Electronics Components category at EnvMart for diverse industrial and laboratory applications.
Explore more products in our Surge Protection Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum surge current capacity of this model is 20 kA, designed to handle high transient surges effectively.
The spark over voltage rating for this gas discharge tube is 90 V DC, providing protection against transient voltages.
This model operates within a temperature range of -40°C to 90°C, making it suitable for harsh environmental conditions.
The length of this gas discharge tube is 6.05 mm, allowing for compact installation in various applications.
This unit has a low capacitance of 1.5 pF, which minimizes signal interference in sensitive circuits, ensuring reliable operation.
It uses a through hole mount type, facilitating easy integration into printed circuit boards (PCBs).
The impulse spark over voltage for this gas discharge tube is rated at 550 V, ensuring reliable operation under transient impulses.
This model is compliant with UL 497B, ITU-T Rec. K.12, IEC 60068-1, IEC 61643-311, and RoHS standards.
It is designed for surge protection in telecommunication equipment and subscriber-end devices, as well as in industrial and laboratory applications.
The suppressor type of this model is a 2 electrode arrester, specifically designed for surge protection applications.
The country of origin for this gas discharge tube is India.
This model belongs to the EHV series, which is known for its surge protection capabilities.
