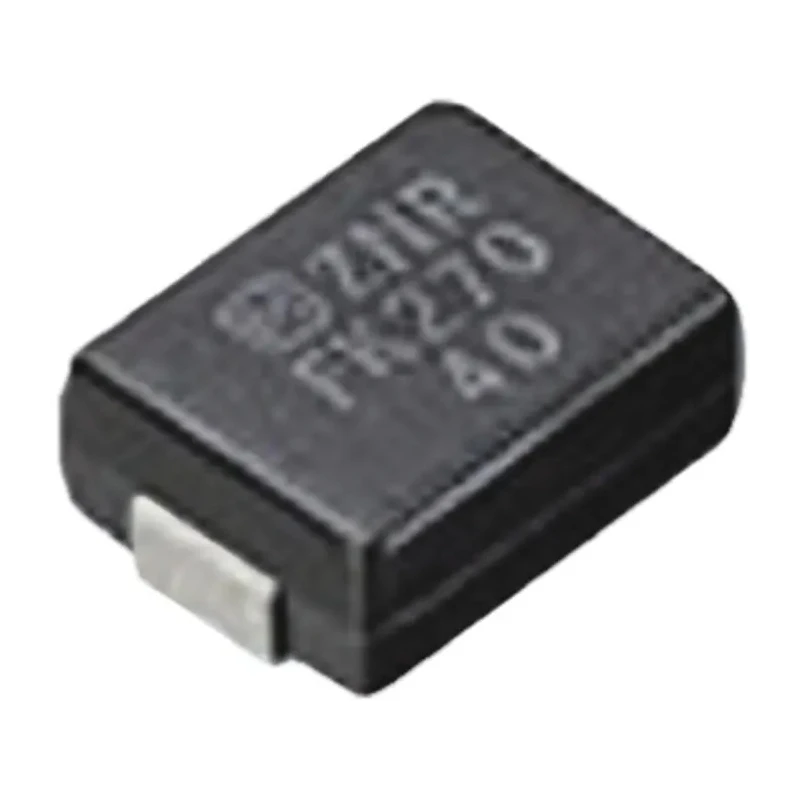

Panasonic VF Surge Absorber Surface Mount, Clamping Voltage 340 V, Clamping Current 10 A, Energy Rating 8J ERZVF2M201

Panasonic ERZVF2M201 VF Surge Absorber is a high-performance metal oxide varistor designed for surface mount technology (SMT) applications. Featuring a low clamping voltage of 340 V and a clamping current capability of 10 A, this device provides effective surge voltage suppression to protect sensitive electronic components.

Its compact dimensions (8 mm length, 6 mm depth, 3.2 mm height) and surface mount packaging make it ideal for space-constrained circuit boards. The surge absorber can withstand peak surge currents up to 600 A and has an energy rating of 8 joules, offering reliable protection against transient voltage spikes from switching surges or lightning-induced surges.

The device operates continuously at temperatures up to 85°C, ensuring durability in demanding industrial, telecommunications, and consumer electronics environments. Panasonic VF surge absorbers replace bulky configurations by offering the functionality of two back-to-back zener diodes with a parallel capacitor in a single compact package, which saves board space and cost.

Compliant with CQC and RoHS standards, the ERZVF2M201 ensures both safety and environmental compliance. Typical uses include protecting communication modules like terminal adapters, modems, and xDSL equipment from voltage surges, as well as safeguarding a wide range of consumer and industrial electronic devices.

Designed for surface mounting on PCBs with compact sizing. Low clamping voltage at 340 V improves protection efficiency. Capable of withstanding surge currents up to 600 A. Energy rating of 8 joules ensures reliable absorption of transient surges.

Maximum operating temperature up to 85°C for versatile applications. Metal oxide varistor construction provides robust and stable performance. Complies with CQC and RoHS standards for safety and environmental regulations.

Typical applications include protection of communication modules, modems, and industrial equipment. Compact dimensions measuring 8 mm length, 6 mm depth, and 3.2 mm height minimize board space usage. Manufactured in Japan ensuring high quality and consistency.

This Panasonic surge absorber is suitable for industrial, telecommunications, and commercial electronics applications requiring dependable transient voltage protection. It is part of a highly reliable Zinc-oxide Non-Linear Resistor (ZNR) series, providing cost-effective and space-saving surge protection solutions.
