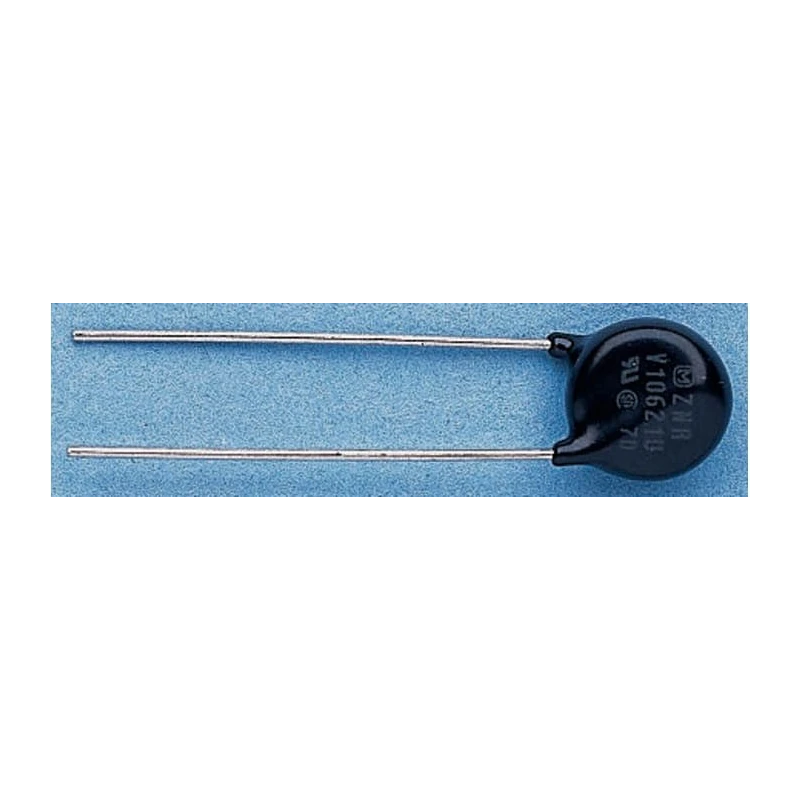

Panasonic V Surge Absorber Varistor 25nF 10A Clamping 1650V ERZV14D180
Specifications
| Country of Origin | Japan |
|---|---|
| Diameter | 15.5mm |
| Brand | Panasonic |
| THICKNESS | 4.6mm |
| Length | 34.5mm |
| Model | ERZV14D180 |
| Depth | 4.6mm |
| Series | V |
| Energy Rating | 25J |
| Maximum Operating Temperature | 85°C |
| Capacitance | 25nF |
| Minimum Operating Temperature | -40°C |
| Maximum dc Voltage | 385V dc |
| Pin Count | 2 |
| Termination Style | Crimped Lead |
| Lead Pitch | 7.5mm |
| Maximum AC Voltage | 300V ac |
| Clamping Voltage VC | 1650V |
| Clamping Current | 10A |
| Maximum Surge Current | 2kA |
| Varistor Voltage | 18 V |
| EPCOS, Standard Metal Oxide Varistor 12.1nF 10A, Clamping 36V, Varistor 18VBrand | EPCOS |
Key Features
- Metal Oxide Varistor with 14mm diameter for compact size.
- Clamping voltage of 1650V ensuring effective voltage limitation.
- Capacitance of 25nF suitable for transient voltage suppression.
- Maximum surge current capacity of 2kA provides robust protection.
- Operating temperature range from -40°C to 85°C for wide environment tolerance.
- Crimped lead termination style for ease of PCB mounting.
- Compliance with multiple international standards including IEC60950-1 and UL1449.
- Manufactured in Japan ensuring high quality and reliability.
Product Description
Panasonic ERZV14D180 is a high-performance surge absorber varistor designed to protect electronic circuits from voltage surges and transient spikes. Featuring a capacitance of 25nF and a clamping current of 10A, it offers robust surge protection while maintaining a compact 14mm diameter form factor.
This varistor operates at a clamping voltage of 1650V and can withstand maximum surge currents up to 2kA, making it suitable for industrial and electronic applications requiring reliable voltage suppression. The device is designed to operate effectively within temperature extremes from -40°C to 85°C, ensuring durability in diverse environments.
The product features a crimped lead termination style, facilitating secure and easy mounting on printed circuit boards. It complies with multiple international safety and quality standards such as IEC60950-1 Annex Q, GB8898, CSA C22.2 No.1, and UL1449, assuring compliance and performance consistency.
Manufactured in Japan, this varistor guarantees outstanding quality and long-lasting performance. Its compact size and large surge current handling capacity make it ideal for applications in telecommunications, power supplies, industrial machinery, consumer electronics, and other surge-sensitive equipment.
Metal Oxide Varistor with 14mm diameter for compact size. Clamping voltage of 1650V ensuring effective voltage limitation. Capacitance of 25nF suitable for transient voltage suppression. Maximum surge current capacity of 2kA provides robust protection.
Operating temperature range from -40°C to 85°C for wide environment tolerance. Crimped lead termination style for ease of PCB mounting. Compliance with multiple international standards including IEC60950-1 and UL1449. Manufactured in Japan ensuring high quality and reliability.
Perfect for use in Industrial, Electronic Components, Electronics Manufacturing, and Power Supply applications requiring transient voltage surge suppression. Explore similar Panasonic Surge Protection Components and varistors for a comprehensive electrical protection solution at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The clamping voltage of this varistor is 1650V, ensuring effective voltage limitation during surges.
This model has a capacitance of 25nF, suitable for transient voltage suppression.
It can withstand a maximum surge current of 2kA, providing robust protection against voltage spikes.
The operating temperature range is from -40°C to 85°C, allowing it to function effectively in diverse environments.
This unit features a crimped lead termination style, which facilitates secure and easy mounting on printed circuit boards.
The varistor has a diameter of 15.5mm, a thickness of 4.6mm, and a length of 34.5mm.
It complies with multiple international standards, including IEC60950-1, UL1449, GB8898, and CSA C22.2 No.1.
The maximum DC voltage rating is 385V, which helps in ensuring safe operation under specified conditions.
The maximum AC voltage rating is 300V, suitable for various electronic applications.
This varistor has a pin count of 2, which is standard for many PCB applications.
The energy rating of this model is 25J, indicating its capacity to absorb energy during surges.
It is manufactured in Japan, ensuring high quality and reliability in performance.
