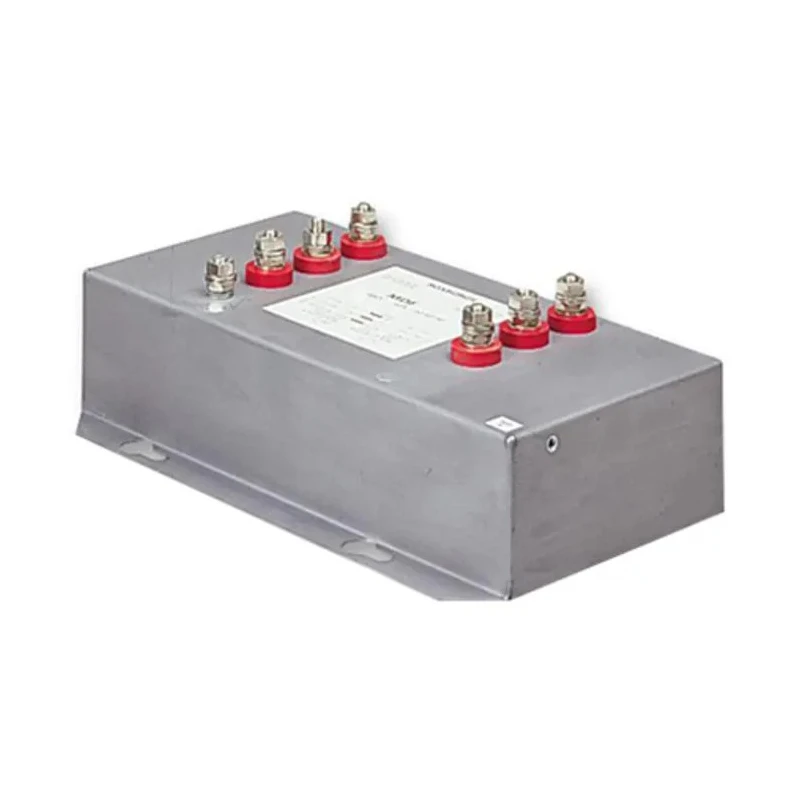

Roxburgh EMC 50A 480V AC 60Hz Flange Mount Single Phase RFI Filter MDF350

Roxburgh EMC MDF350 is a high-performance single phase flange mounted RFI filter designed for industrial electromagnetic interference suppression in motor drive systems. Rated for 50A current and 480V AC operating voltage at 60Hz frequency, this filter uses a stud termination style to offer secure and robust connections.

The filter features a capacitance of 2.2μF and inductance of 550μH which combine to provide efficient attenuation of conducted interference. It has a low leakage current of 14.5mA making it suitable for demanding industrial applications where leakage current limits are critical. With compact physical dimensions (230mm length, 147mm depth, and 55mm height), it installs easily into control panels with flange mounting.

Operating temperature ranges from -25°C to 85°C allow use in various industrial environments, ensuring reliability under both cold startup conditions and elevated temperature operations. Power loss is kept low at 4.5 watts, contributing to energy efficiency.

Designed to meet international safety and EMC standards including IEC950, VDE0871, EN55011 for industrial emissions, and EN55022 for domestic emissions compliance, the MDF350 filter helps equipment meet regulatory requirements while enhancing system performance.

Single phase RFI filter suitable for industrial motor drives. Flange mount with stud termination for secure connection. Operates at 50A maximum current and 480V AC voltage. Low leakage current of 14.5mA to limit unwanted emissions.

Compact size facilitates integration into tight spaces. Capacitance of 2.2μF and inductance of 550μH. Wide operating temperature range from -25°C to 85°C. Power loss of only 4.5W ensures efficient operation. Certified to IEC950, VDE0871, EN55011, and EN55022 standards.

This RFI filter is ideal for applications in industrial motor drives, manufacturing equipment, and electronic systems requiring reliable noise suppression and compliance with electromagnetic compatibility regulations. Roxburgh EMC product range is known for quality and compliance, making the MDF350 a trustworthy component in industrial electronic assemblies.
