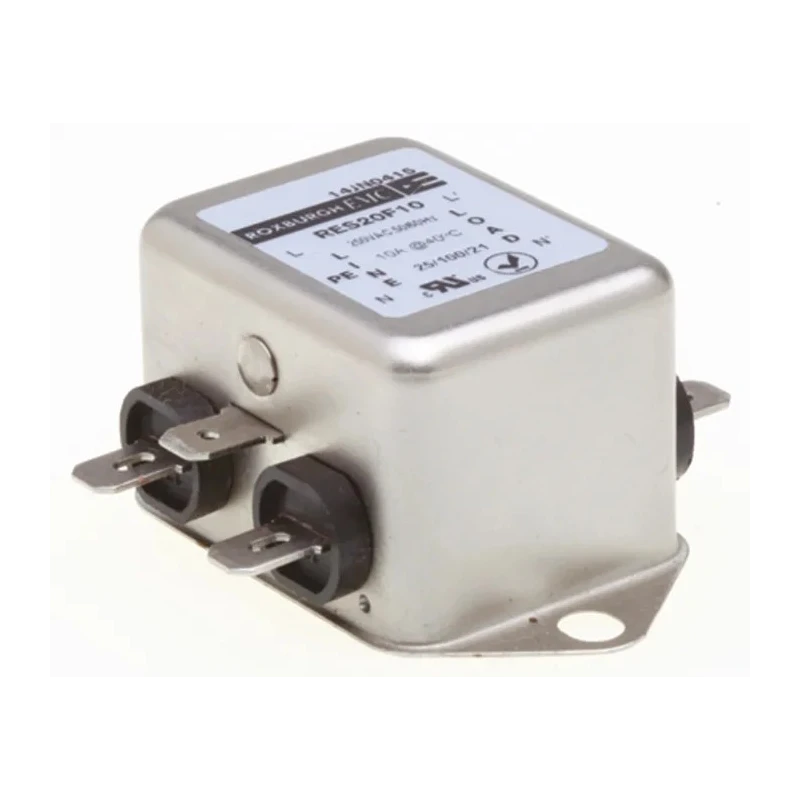

Roxburgh EMC Chassis Mount RFI Filter 10A 250V AC 400Hz Fast-On 1 Phase RES20

Roxburgh EMC RES20F10 is a high-performance single-phase RFI filter designed for chassis mounting to reduce conducted radio frequency interference effectively. Rated at 10 amperes and 250 volts AC with a frequency operation up to 400Hz, it provides excellent attenuation for general-purpose filtering applications requiring higher differential mode attenuation.

This compact filter measures 64mm in length, 35mm in depth, and 29.3mm in height, fitting efficiently into limited spaces often found in industrial and commercial electrical setups. Its fast-on termination style offers quick and reliable installation, enhancing serviceability in electrical systems.

The filter boasts a capacitance of 300nF and an inductance of 800μH, delivering an effective suppression of noise and interference in sensitive electronics. The leakage current is limited to 740μA to maintain energy efficiency and reduce power loss during operation.

Engineered to operate reliably across a broad temperature range from -25°C to 100°C, this RFI filter withstands varied environmental conditions, making it suitable for demanding industrial, laboratory, HVAC, manufacturing, and commercial applications. The 1mΩ resistance value ensures operational efficiency with minimal impact on electrical performance.

Roxburgh EMC RES20 series filters are recognized for their compliance with international standards including UL 1283 and CSA 22.2 No. 8, guaranteeing safety and quality performance in electrical and electronic equipment, household appliances, building automation systems, machinery, data communication, and office automation environments.

Manufactured in India, this filter embodies robust quality control and is ideal for users seeking reliable noise attenuation in electrical circuits. Its compact size also allows for versatile usage in a range of electronic components and power line filtering applications.

Designed for chassis mounting with fast-on termination for easy installation. High attenuation over a wide frequency range from DC to 400Hz. Compact size for 10A rated current applications. Capacitance: 300nF and Inductance: 800μH optimize noise suppression.

Low leakage current of 740μA improves energy efficiency. Wide operating temperature range from -25°C to 100°C. Complies with UL 1283 and CSA 22.2 No. 8 standards. Minimal resistance of 1mΩ reduces voltage drop. Suitable for industrial, laboratory, HVAC, manufacturing, commercial and household electrical applications.

Quality manufacturing origin: India. Explore the Electronics Components category at EnvMart for high-quality RFI Filters and similar products from trusted brands like Roxburgh EMC.
