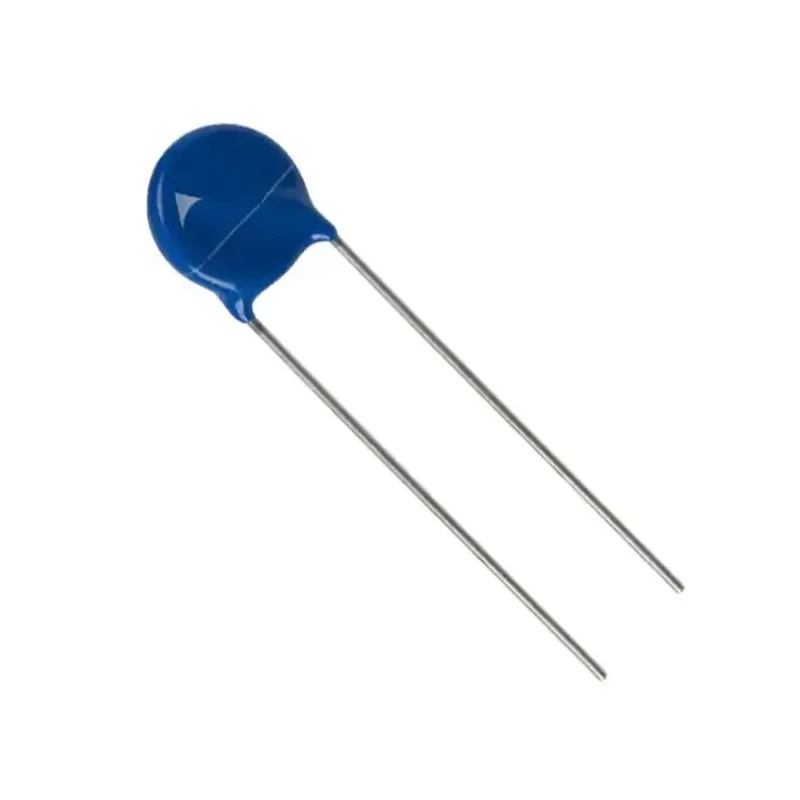

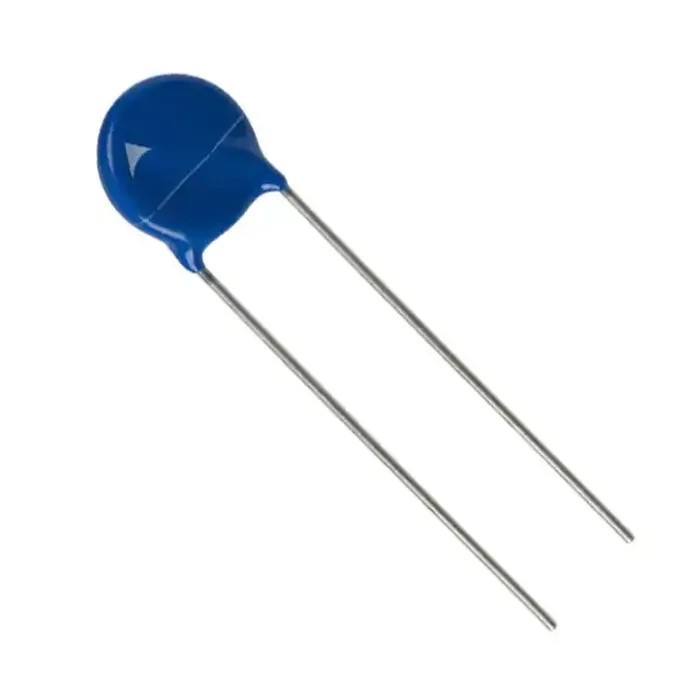

TDK AdvancedD Metal Oxide Varistor 410 pF 100 A Clamping 1500 V Model B72220S2551K101
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 21.5mm |
| Brand | TDK |
| THICKNESS | 9mm |
| Length | 26mm |
| Model | B72220S2551K101 |
| Packaging | Tape & Reel |
| Mount Type | Through Hole |
| Series | AdvancedD |
| Maximum Operating Temperature | 105°C |
| Capacitance | 410pF |
| Minimum Operating Temperature | -40°C |
| Maximum dc Voltage | 745V dc |
| Standards/Approvals | IEC, VDE, CSA, UL |
| Pin Count | 2 |
| Maximum AC Voltage | 550V ac |
| Clamping Voltage VC | 1500V |
| Clamping Current | 100A |
| Maximum Surge Current | 10kA |
| Varistor Voltage | 910 V |
Key Features
- High surge current rating up to 10 kA suitable for demanding applications.
- Clamping voltage of 1500 V ensures effective voltage suppression.
- Varistor voltage rated at 910 V for robust voltage handling.
- Through hole mount type compatible with standard PCB layouts.
- Epoxy resin flame-retardant coating with UL 94 V-0 rating for safety.
- Operating temperature range from -40°C up to 105°C for diverse environments.
- Compact dimensions with 21.5 mm diameter, 26 mm length, and 9 mm thickness.
- Complies with IEC, VDE, CSA, and UL standards for quality assurance.
Product Description
TDK B72220S2551K101 AdvancedD Metal Oxide Varistor is a high-energy metal oxide varistor designed for surge protection in electronic circuits. Featuring a capacitance of 410 pF and a clamping current rating of 100 A, it provides reliable protection against voltage spikes in industrial and commercial electronic systems.
This varistor has a clamping voltage of 1500 V and a varistor voltage of 910 V, making it suitable for suppressing transient voltages effectively. It supports a maximum AC voltage of 550 V and maximum DC voltage of 745 V, withstanding surge currents up to 10 kA for enhanced durability.
The device employs a through-hole mounting style with robust terminals made from tinned wire, ensuring secure and stable connections on printed circuit boards. Its epoxy resin coating is flame-retardant compliant with UL 94 V-0 standards, adding safety and protection in demanding applications.
With compact physical dimensions of 21.5 mm diameter, 26 mm length, and 9 mm thickness, this varistor fits efficiently in constrained PCB layouts. It operates reliably in temperatures ranging from -40°C to 105°C, supporting a wide range of environmental conditions.
Certified to IEC, VDE, CSA, and UL standards, this TDK AdvancedD series varistor is designed for use in industrial, laboratory, and commercial electronics requiring surge safeguard components. Its packaging in tape and reel format facilitates efficient automated assembly processes.
High surge current rating up to 10 kA suitable for demanding applications. Clamping voltage of 1500 V ensures effective voltage suppression. Varistor voltage rated at 910 V for robust voltage handling. Through hole mount type compatible with standard PCB layouts.
Epoxy resin flame-retardant coating with UL 94 V-0 rating for safety. Operating temperature range from -40°C up to 105°C for diverse environments. Compact dimensions with 21.5 mm diameter, 26 mm length, and 9 mm thickness.
Complies with IEC, VDE, CSA, and UL standards for quality assurance. Packaging in tape and reel facilitating automated assembly processes. Terminals made from tinned wire for reliable electrical connection. Explore more Surge Protection Components and related electronic parts on EnvMart for advanced industrial and laboratory solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The varistor has a maximum surge current rating of 10 kA, making it suitable for demanding applications.
The clamping voltage for this model is 1500 V, ensuring effective voltage suppression.
This varistor features a capacitance of 410 pF.
It has a diameter of 21.5 mm, a length of 26 mm, and a thickness of 9 mm.
This model uses a through-hole mounting type, compatible with standard PCB layouts.
It can withstand a maximum AC voltage of 550 V and a maximum DC voltage of 745 V.
It complies with IEC, VDE, CSA, and UL standards for quality assurance.
The varistor voltage is rated at 910 V, providing robust voltage handling capabilities.
It is packaged in tape and reel format, facilitating efficient automated assembly processes.
The terminals are made from tinned wire, ensuring secure and stable connections.
This varistor is designed for use in industrial, laboratory, and commercial electronics requiring surge protection components.
