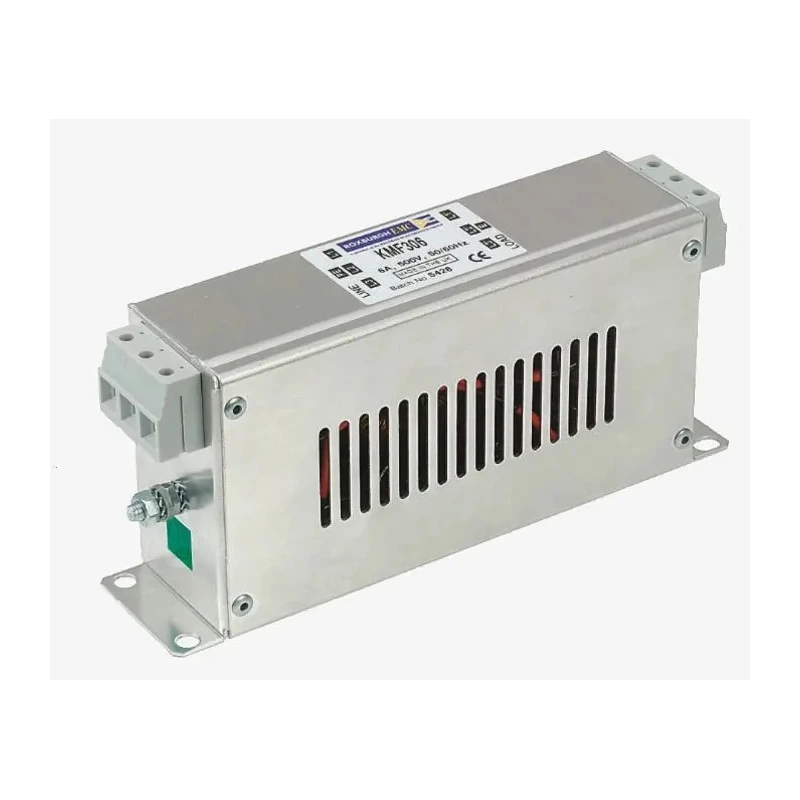

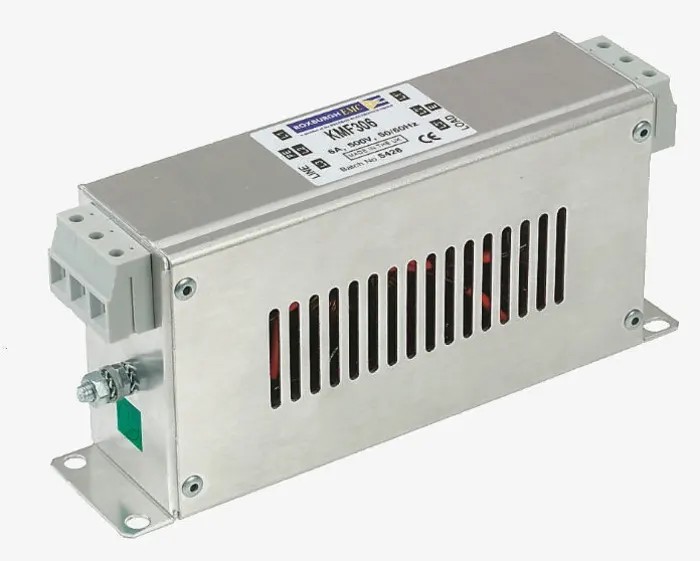

Roxburgh EMC 36A 500V AC 60Hz Flange RFI Filter Stud 3 Phase KMF336

Free Delivery in India | Lowest Global Shipping Charges

Roxburgh EMC 36A 500V AC 60Hz Flange RFI Filter Stud 3 Phase KMF336

Name: Roxburgh EMC 36A 500V AC 60Hz Flange RFI Filter Stud 3 Phase KMF336
Brand: Roxburgh EMC
SKU: 291959
Price: 277.09 USD
Availability: InStock



Category RFI Filter Brand Roxburgh EMC Condition New

Specifications

Country of Origin	United Kingdom
Brand	Roxburgh EMC
Height	161mm
Length	272mm
Model	KMF336
Depth	74mm
Mount Type	Flange
Operating Frequency	60Hz
Series	KMF
Maximum Operating Temperature	100°C
Number Of Stages	1
Resistance	4.12mΩ
Capacitance	1μF
Minimum Operating Temperature	-25°C
Maximum Current	36A
Number of Phases	3
Leakage Current	6.8mA
Maximum Voltage	500V ac
Inductance	7μH
Standards/Approvals	UL1283
Termination Style	Stud
Power Loss	5.34W
Roxburgh EMC, KMF 50 A 500V ac 60Hz, Flange RFI Filter, Stud 3 PhaseBrand	Roxburgh EMC

Key Features

Maximum current rating of 36 amperes ensuring robust power handling.
Flange mount type with stud termination style for secure installation.
Single stage filter with inductance of 7μH and capacitance of 1μF for effective noise suppression.
Leakage current of 6.8mA with a power loss of 5.34 watts during operation.
Operating temperature range from -25°C to 100°C for versatile environmental usage.
Resistance of 4.12 milliohms ensuring minimal power loss.
Industry standard UL1283 certification for safety and EMC compliance.
Designed for use in machine tools, industrial controls, process controls, mechanical and handling equipment, and UPS systems.

Product Description

Roxburgh EMC KMF336 Flange RFI Filter is a durable and efficient 3 Phase power line filter rated at 36A and 500V AC, operating at 60Hz. It is designed to provide reliable electromagnetic interference (EMI) suppression in demanding industrial environments.

This filter features a flange mount type with a stud termination style, enabling secure and stable installation in control panels, machines, and drives. It is a single-stage filter incorporating 7μH inductance and 1μF capacitance, which together effectively reduce noise and disturbances on power lines.

With a leakage current of just 6.8mA and power loss of 5.34 watts, this filter ensures efficient operation while complying with industrial standards. It operates reliably across a temperature range of -25°C to 100°C, making it suitable for various climatic conditions.

The physical footprint of the filter is compact with dimensions measuring 272mm in length, 161mm in height, and 74mm in depth, making it ideal for space-constrained applications. Its low resistance of 4.12 milliohms contributes to minimized power loss and heat generation.

Maximum current rating of 36 amperes for robust power handling capability. Voltage rating of 500V AC tailored for industrial power line use. Flange mounting and stud termination for easy integration. Single stage design with specified inductance and capacitance values for EMI noise reduction.

Low leakage current and power loss enhance energy efficiency. Wide operating temperature range ensures suitability in diverse environments. Compact size facilitates installation in tight spaces. Low electrical resistance optimizes performance.

UL1283 safety and EMC certification compliance. Ideal for machine tools, industrial controls, process automation, mechanical equipment, handling equipment, and UPS applications.

Made in the United Kingdom, this RFI Filter from Roxburgh EMC offers quality, reliability, and compliance with international industrial standards. It is a trusted component for engineering applications requiring effective EMI filtration and power line noise suppression.
