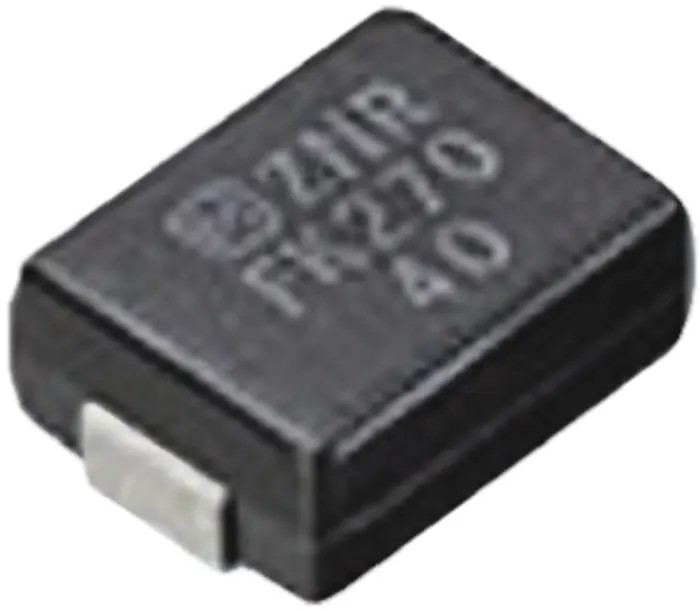

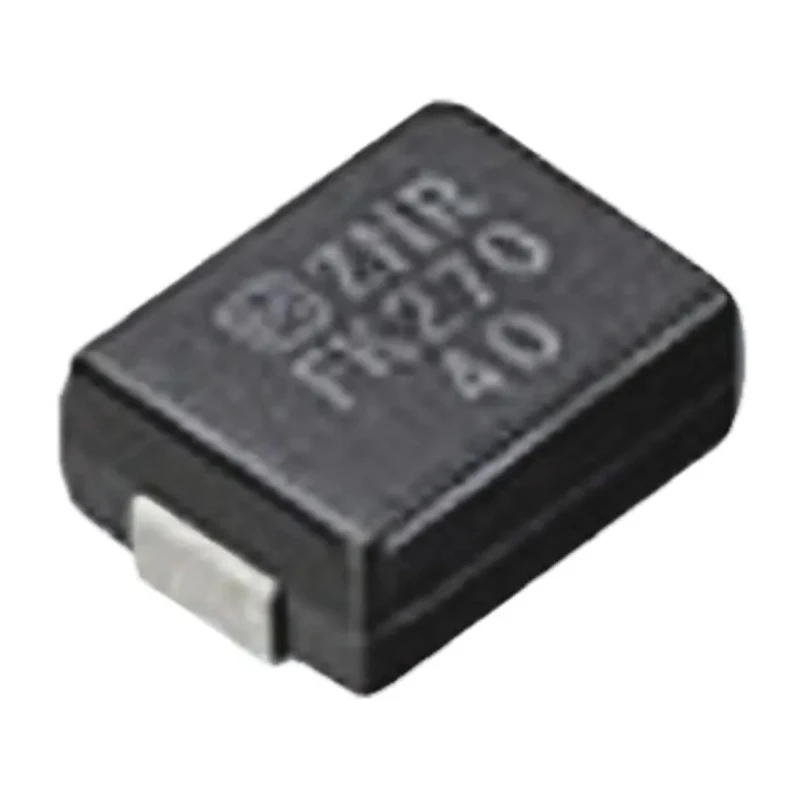

Panasonic VF Surge Absorber 10 A Clamping 340 V Surface Mount Zinc Oxide Varistor ERZVF2M201

Free Delivery in India | Lowest Global Shipping Charges

Panasonic VF Surge Absorber 10 A Clamping 340 V Surface Mount Zinc Oxide Varistor ERZVF2M201

Name: Panasonic VF Surge Absorber 10 A Clamping 340 V Surface Mount Zinc Oxide Varistor ERZVF2M201
Brand: Panasonic
SKU: 128489
Price: 0.88 USD
Availability: InStock



Category Surge Protection Components Brand Panasonic Condition New

Specifications

Country of Origin	Japan
Brand	Panasonic
Height	3.2mm
Length	8mm
Model	ERZVF2M201
Depth	6mm
Mount Type	Surface
Series	VF
Energy Rating	8J
Maximum Operating Temperature	85°C
Maximum dc Voltage	170V dc
Standards/Approvals	CQC, RoHS
Maximum AC Voltage	130V ac
Clamping Voltage VC	340V
Clamping Current	10A
Maximum Surge Current	600A

Key Features

Features low clamping voltage and large surge current capability.
Compact surface-mount design saves board space.
Protects against switching surges in consumer and industrial equipment.
Suitable for communication modules such as terminal adapters and modems.
Withstands maximum surge current up to 600 A and energy rating of 8 J.
Maximum operating temperature of 85°C ensures reliability.
Compliant with CQC and RoHS standards.
Manufactured in Japan for quality assurance.

Product Description

Panasonic ERZVF2M201 VF Surge Absorber is a surface mount zinc-oxide varistor (ZNR series) designed for integration into modern electronic circuits. Featuring a clamping current of 10 A and a clamping voltage of 340 V, it offers robust surge protection for power and communication equipment.

This device operates with a maximum AC voltage of 130 V and a maximum DC voltage of 170 V, making it ideal for absorbing switching surges from relays and protecting sensitive components from voltage spikes. Its compact dimensions of 8 mm length, 3.2 mm height, and 6 mm depth allow high-density PCB assembly with space efficiency.

The VF surge absorber provides excellent large surge current capability (up to 600 A) and an energy rating of 8 joules, ensuring durability under transient conditions. It can replace two back-to-back Zener diodes and a parallel capacitor, resulting in cost and board space savings.

Typical applications include protecting consumer electronics, industrial equipment, and communication modules such as terminal adapters, modems, and xDSL technologies. The surge absorber is designed to withstand temperatures up to 85°C, conforming to CQC and RoHS certifications, confirming compliance with environmental and quality standards.

Low clamping voltage and high surge current capability ensure device protection. Surface mount technology enables compact and efficient PCB design. Suitable for a wide range of industrial, communication, and consumer electronics applications.

Protects against voltage spikes and switching surges to enhance equipment lifespan. Wear-resistant protective coating improves reliability and durability. Manufactured with high-quality materials in Japan, ensuring premium quality.

Compatible with reflow soldering processes for modern manufacturing. Energy rating of 8 joules supports robust performance under transient conditions.

This Panasonic VF Surge Absorber ERZVF2M201 is essential for industrial, laboratory, manufacturing, and communication equipment protection, providing reliable surge absorption and contributing to device longevity. Explore EnvMart's extensive Electronics Components category for more solutions.
