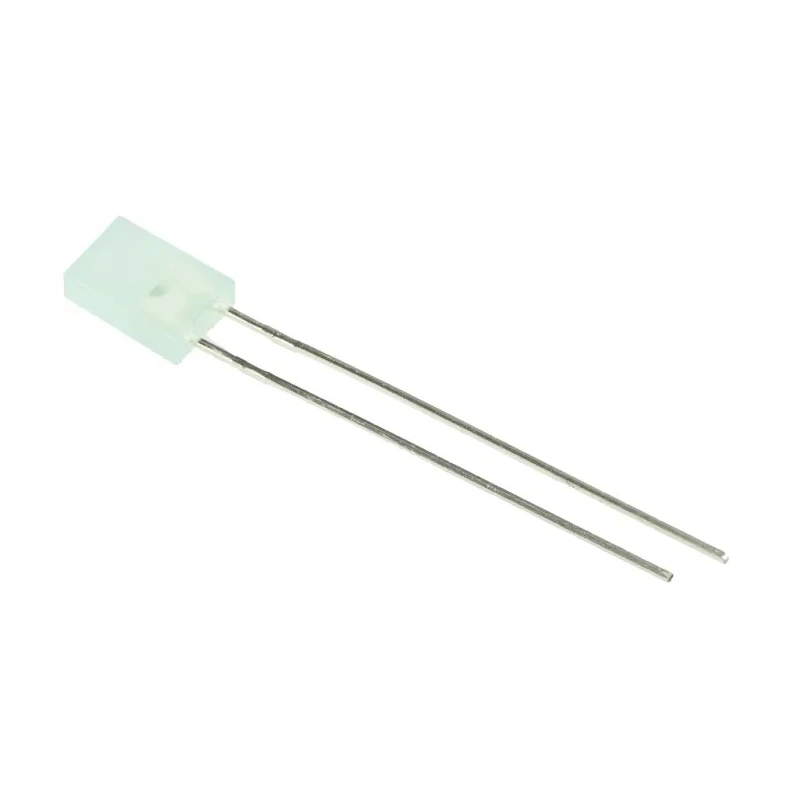

Broadcom Green LED Rectangular Through Hole 2.2 V 20 mA 8 mcd Diffused Lens HLMP-S501
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | HLMP-S501 |
| Packaging | Ammo |
| Mount Type | Through Hole |
| Series | HLMP |
| Maximum forward current | 20mA |
| Viewing angle | 110 ° |
| Package Type | Rectangular |
| Lens Colour | Green |
| Standards/Approvals | RoHS |
| LED Colour | Green |
| Dominant Wavelength | 569nm |
| Forward Voltage | 2.2V |
| Number of Pins | 2 |
| LED Luminosity | 8 mcd |
| Lens Dimensions | 2 x 5 x 8 mm |
| Lens Shape | Rectangular |
| Lens Finish | Diffused |
| - Long life time | solid state reliability |
Key Features
- Features a rectangular diffused green lens for uniform light output.
- Designed for through-hole mounting with 2 pins for easy PCB installation.
- Offers a viewing angle of 110 degrees suitable for panel indicators.
- Emits green light at a dominant wavelength of 569 nm with 8 mcd luminosity.
- Compact lens dimensions of 2 x 5 x 8 mm optimize space on assemblies.
- Complies with RoHS standards ensuring environmental safety.
- Encapsulated epoxy package suitable for stacking in arrays.
- Solid state design provides long operational life and reliability.
Product Description
Broadcom HLMP-S501 is a green LED designed for reliable rectangular through-hole applications requiring precise and uniform indicator lighting. Operating at a forward voltage of 2.2 V and a maximum forward current of 20 mA, this LED offers a luminous intensity of 8 millicandela with a diffused rectangular epoxy lens of 2 x 5 x 8 mm dimensions. The device supports a wide viewing angle of 110 degrees providing excellent visibility for electronic displays and status indicators in industrial and commercial equipment.
The epoxy-encapsulated rectangular package allows stacking in arrays or discrete front panel mounting, enhancing design flexibility. It features a diffused lens finish which ensures uniform light distribution and reduces glare, making it ideal for control panels, instrumentation, and other visual signalling applications.
This LED is compliant with RoHS environmental standards and is constructed with double heterojunction (DH) AlGaAs technology for excellent light output and reliability. It is engineered for through-hole mounting with two pins, simplifying circuit board assembly.
The HLMP series from Broadcom includes this model HLMP-S501 which offers long life and solid state reliability, making it suitable for sustained industrial use. Features a rectangular diffused green lens for uniform light output.
Designed for through-hole mounting with 2 pins for easy PCB installation. Offers a viewing angle of 110 degrees suitable for panel indicators. Emits green light at a dominant wavelength of 569 nm with 8 mcd luminosity. Compact lens dimensions of 2 x 5 x 8 mm optimize space on assemblies.
Complies with RoHS standards ensuring environmental safety. Encapsulated epoxy package suitable for stacking in arrays. Solid state design provides long operational life and reliability. Ideal for industrial electronic components, power and connector applications, displays, optoelectronics, and other electronic assemblies requiring reliable LED indicators.
Explore more lighting and LED components at EnvMart to enhance your industrial and commercial designs.
Explore more products in our LED - Light Emitting Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current for this LED is 20 mA.
The forward voltage of the HLMP-S501 is 2.2 V.
The lens dimensions of this LED are 2 x 5 x 8 mm.
It emits a luminous intensity of 8 millicandela.
The HLMP-S501 is designed for through-hole mounting with 2 pins for easy PCB installation.
The dominant wavelength of the emitted green light is 569 nm.
The lens finish is diffused, which ensures uniform light distribution and reduces glare.
Yes, it complies with RoHS standards, ensuring environmental safety.
This LED is packaged in an ammo type packaging.
The HLMP-S501 belongs to the HLMP series of LEDs by Broadcom.
This LED is suitable for control panels, instrumentation, and visual signaling applications in industrial and commercial equipment.
