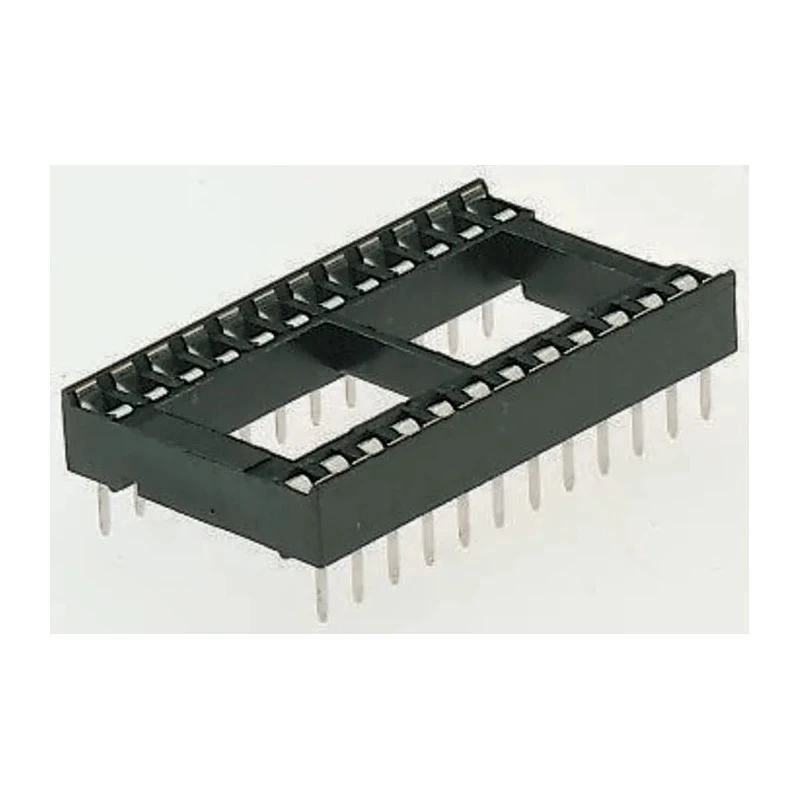

Winslow W3100 2.54 mm Pitch Vertical 24 Way Through Hole Stamped Pin Open Frame DIL Socket 10A W3124/3TRC
Specifications
| Country of Origin | India |
|---|---|
| Brand | Winslow |
| Orientation | Vertical |
| Current | 10A |
| Frame Type | Open Frame |
| Length | 30.35mm |
| Model | W3124/3TRC |
| Depth | 10.14mm |
| Width | 4.5mm |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | W3100 |
| Termination Type | Solder |
| Maximum Operating Temperature | 150°C |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 24 |
| Pin Type | Stamped |
| Row Width | 7.62mm |
Key Features
- This socket features an open frame design ideal for through-hole mountings.
- Constructed with phosphor bronze contacts plated with tin for reliable conductivity.
- The housing is made of robust polybutylene terephthalate for thermal and mechanical durability.
- Designed to operate within a temperature range up to 150°C for industrial applications.
- Its vertical orientation and 7.62 mm row width allow high-density PCB layouts.
- Termination is by solder, ensuring secure electrical connections.
- The W3100 series delivers low profile and side stackable configuration for space optimization.
- Contact wiping action maximizes contact retention with minimal cost.
Product Description
Winslow W3124/3TRC DIL Socket is a vertically oriented, 24 way, through-hole mounted connector with a 2.54 mm pitch. It features stamped phosphor bronze contacts plated with tin, housed in durable polybutylene terephthalate material designed for industrial use withstanding temperatures up to 150°C.
The open frame design allows ease of inspection and soldering while supporting high-density circuit board layouts with a 7.62 mm row width and overall dimensions of roughly 30.35 mm length, 10.14 mm depth, and 4.5 mm width. The socket's termination is via solder pins, making it compatible with standard through-hole PCB assembly techniques.
Its dual wipe contacts ensure maximum contact retention at minimal cost, enhancing reliability in critical electronic assembly applications. The design incorporates overstress protection and a 35-degree angled contact to prevent IC legs from bending during insertion, enhancing socket and IC longevity.
This product is suitable for Industrial Electronics, Manufacturing Equipment, Test Instruments, and other high-reliability electronics requiring robust IC socket solutions. This socket features an open frame design ideal for through-hole mountings.
Constructed with phosphor bronze contacts plated with tin for reliable conductivity. The housing is made of robust polybutylene terephthalate for thermal and mechanical durability. Designed to operate within a temperature range up to 150°C for industrial applications.
Its vertical orientation and 7.62 mm row width allow high-density PCB layouts. Termination is by solder, ensuring secure electrical connections. The W3100 series delivers low profile and side stackable configuration for space optimization.
Contact wiping action maximizes contact retention with minimal cost. The 35-degree angled contact protects IC legs during insertion and prevents overstress. Choose Winslow IC sockets for reliable, durable, and cost-effective DIL connector solutions. Explore more from Winslow and related DIL Socket products on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Winslow W3100 socket has a maximum current rating of 10A.
This model features a pitch size of 2.54 mm.
The housing is made of polybutylene terephthalate, and the contacts are constructed from phosphor bronze plated with tin for conductivity.
It is designed to operate within a maximum temperature of 150°C, making it suitable for industrial applications.
This socket has a total of 24 contacts.
The socket is designed for through-hole mounting, which is common in PCB assembly.
The overall dimensions are approximately 30.35 mm in length, 10.14 mm in depth, and 4.5 mm in width.
The row width of this model is 7.62 mm, allowing for high-density layouts on PCBs.
Termination is via solder pins, ensuring secure electrical connections during assembly.
The socket features dual wipe contacts that maximize contact retention while minimizing costs.
Yes, it is suitable for applications in industrial electronics, manufacturing equipment, and test instruments requiring robust IC socket solutions.
The pin type used in this socket is stamped, which contributes to its reliability and performance.
