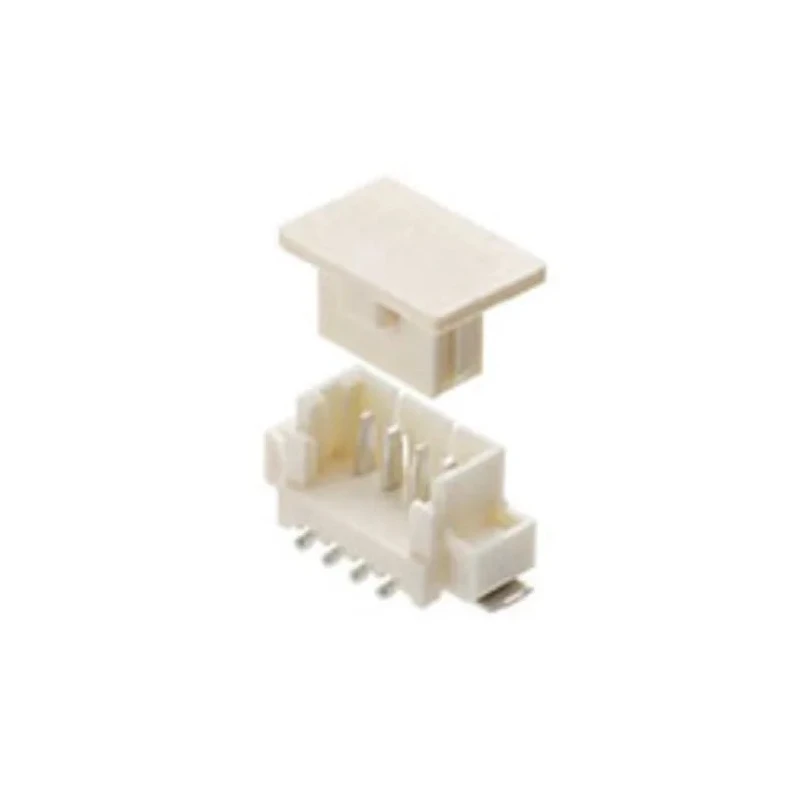

Molex PicoBlade Series Vertical Surface PCB Header 3 Contacts 1.25 mm Pitch 1 Row Shrouded 53398-0367

Molex 53398-0367 PicoBlade Series Vertical Surface PCB Header is a high-quality electronic component designed for surface mount PCB connections. This product features 3 contacts arranged in a single row with a 1.25 mm pitch, providing compact and reliable connectivity for electronic assemblies.

The header’s housing is made of natural nylon with a shrouded design that protects the connections and prevents accidental shorts. Its phosphor bronze contacts are plated with tin, enhancing conductivity and corrosion resistance. This connector system is rated for a voltage of 125V and a current of 1A, making it appropriate for low power electronic applications across various industries.

This component offers a vertical orientation for mounting on printed circuit boards, with a tail pin length of 0.60 mm and a mating pin length of 2 mm, optimized for precise mating and secure retention. The operating temperature range from -40°C to +85°C allows use in harsh environmental conditions, including industrial, manufacturing, and commercial electronics assemblies.

The Molex PicoBlade series conforms to UL E29179 standards, assuring compliance with global electrical safety requirements. This connector is designed to facilitate efficient PCB assembly with surface mount termination types compatible with modern soldering processes.

The header features a single row vertical mount PCB header design. 3 contacts ensure reliable electrical connectivity. Nylon housing provides durable insulation and shrouding protection. Phosphor bronze contacts with tin plating deliver excellent electrical performance.

Rated for 125V operating voltage and 1A current. Operates over a wide temperature range from -40°C to +85°C. Surface mount termination type supports standard PCB manufacturing. UL E29179 certification guarantees quality and safety standards.

Tail pin length of 0.60 mm and mating pin length of 2 mm for precise connections.

This Molex PicoBlade surface mount vertical PCB header is widely used in electronic components manufacturing, industrial equipment, and control systems applications. Its precise engineering and compliance with international standards make it ideal for electronics design engineers and manufacturers looking for reliable, compact PCB connectors.
