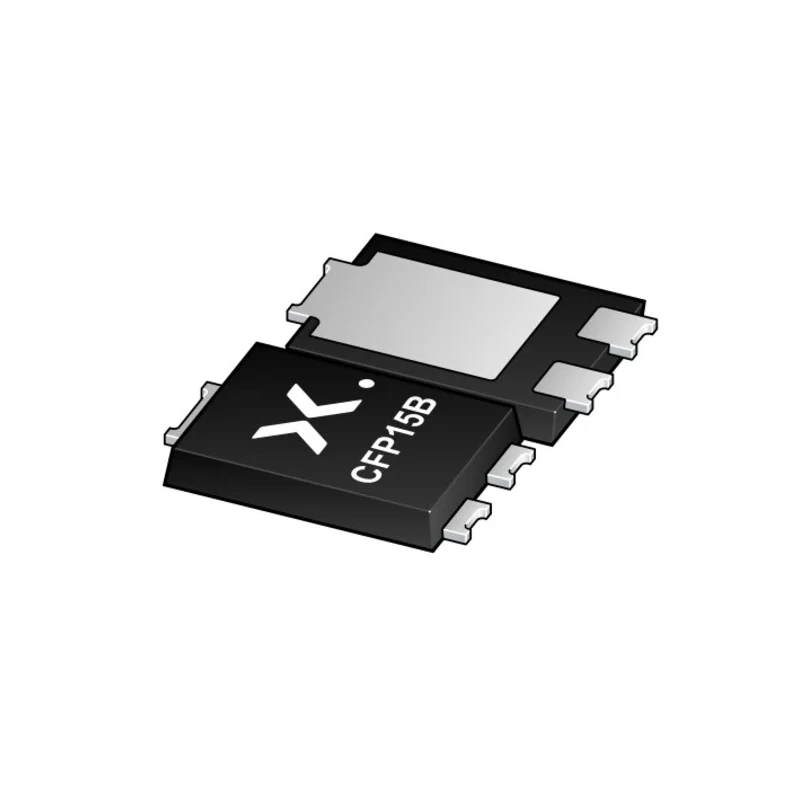

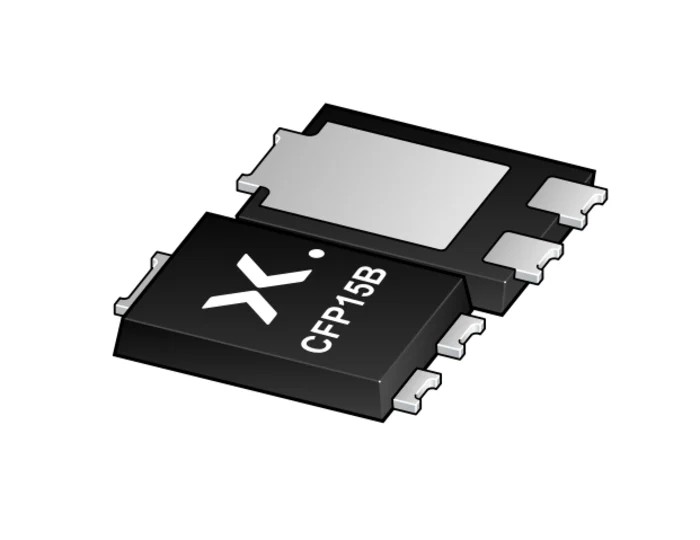

Nexperia 200 V 2 A Rectifier & Schottky Diode Dual Common Cathode 3-Pin CFP15B PNE20040CPE-QZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.95mm |
| Model | PNE20040CPE-QZ |
| Mount Type | Surface |
| Series | PNE20040CPE-Q |
| Maximum Operating Temperature | 175°C |
| Package Type | CFP15B |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | IEC60134, AEC-Q101 |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Dual Common Cathode |
| Peak Reverse Current Ir | 20μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 100A |
| Maximum Forward Voltage Vf | 980mV |
| Peak Reverse Recovery Time trr | 25ns |
Key Features
- Features a surface mount design with a compact CFP15B package and 3 pins.
- Maximum continuous forward current is 2 A per diode for reliable performance.
- Peak reverse repetitive voltage is 200 V suitable for demanding applications.
- Low maximum forward voltage of 980 mV which improves efficiency.
- Extremely fast switching with a peak reverse recovery time of 25 ns.
- Operates in temperatures ranging from -55°C minimum to a maximum of 175°C.
- Designed with low inductance and Pt doped life time control for enhanced durability.
- Complies with IEC60134 and AEC-Q101 automotive standards.
Product Description
Nexperia PNE20040CPE-QZ is a dual common cathode rectifier and Schottky diode in a compact 3-pin CFP15B surface mount package. It operates at a maximum continuous forward current of 2 A with a peak reverse repetitive voltage of 200 V. This diode integrates high power density and hyperfast switching time enabled by planar technology with clip-bond power delivery.
The device features a low maximum forward voltage of 980 mV, which allows for high efficiency in power rectification and switching circuits. It supports a wide operating temperature range from as low as -55°C up to 175°C, making it suitable for harsh environments.
Constructed with low inductance and platinum doped lifetime control, this diode provides robust performance under peak non-repetitive forward surge currents up to 100 A. It meets IEC60134 and automotive AEC-Q101 industry standards for safety and reliability.
This component is engineered for multiple industrial and automotive applications including general-purpose rectification, hyperfast switching, solenoid control circuits, piezo injection, and freewheeling duties.
Surface mount CFP15B plastic package with 3 pins. Dual common cathode diode configuration. Low inductance and planar die design for performance and durability. Peak reverse current limited to 20 µA ensuring minimal leakage.
Conforms to IEC60134 and AEC-Q101 quality standards. Suitable for use in industrial, automotive, power supply, and electronic component manufacturing sectors.
Choose Nexperia's PNE20040CPE-QZ diode for reliable, compact, and efficient rectification under demanding conditions. Browse our extensive semiconductor product category at EnvMart for more electronic components and Schottky diode options.
Explore more products in our Schottky Diodes & Rectifiers category.
