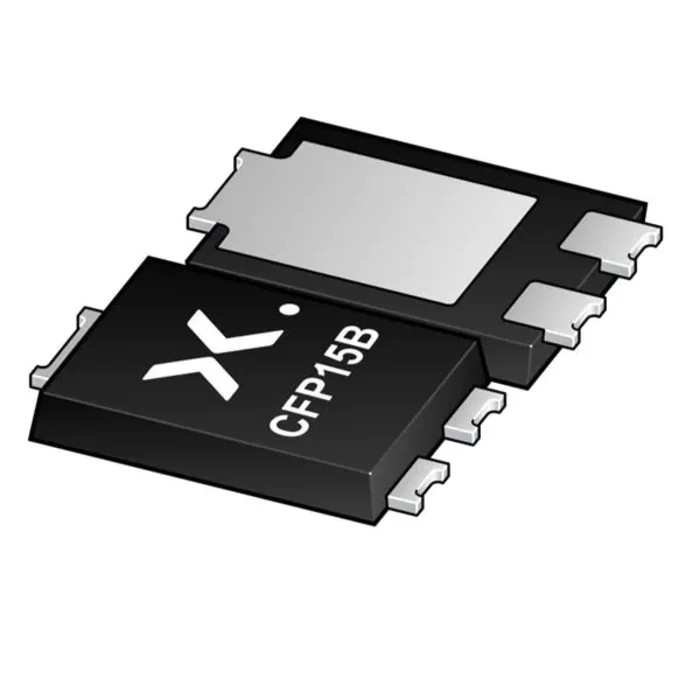

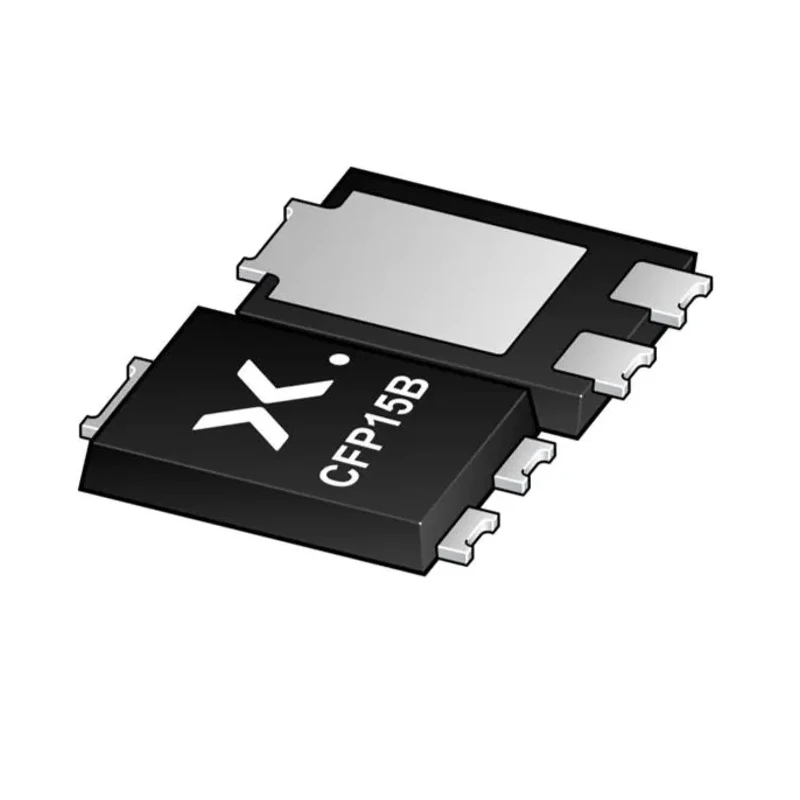

Nexperia 100 V 8 A Surface Mount Schottky Barrier Rectifier CFP15B Package PMEG100T080ELPE-QZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.95mm |
| Length | 5.8mm |
| Model | PMEG100T080ELPE-QZ |
| Width | 4.3mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 175°C |
| Package Type | CFP15B |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | AEC-Q101 |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 8A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 23mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 170A |
| Maximum Forward Voltage Vf | 810mV |
| Peak Reverse Recovery Time trr | 19ns |
Key Features
- Features a 100 V peak reverse voltage rating.
- Supports maximum continuous forward current of 8 A.
- Encapsulated in a compact CFP15B plastic package suitable for surface mounting.
- Offers low forward voltage drop of 810 mV at rated current.
- Equipped with a 3-pin single diode configuration optimized for low leakage and fast recovery.
- Meets AEC-Q101 automotive quality standard, suitable for harsh environments.
- Operating temperature range from -55°C up to 175°C.
- Low reverse current of 23 mA peak ensures high efficiency.
Product Description
Nexperia PMEG100T080ELPE-QZ is a 100 V, 8 A Schottky barrier rectifier designed for surface-mount applications. Packaged in a CFP15B small plastic housing with flat leads, this diode offers excellent efficiency due to its trench maximum efficiency general application (MEGA) technology.
This Schottky diode features a low forward voltage drop of 810 mV and low leakage current, enabling high power efficiency and thermal performance. The device supports a peak repetitive reverse voltage of 100 V and a peak reverse current of 23 mA, suitable for reliable operation in demanding environments.
With a maximum operating temperature of 175°C and minimum temperature rating of -55°C, the PMEG100T080ELPE-QZ is qualified to meet AEC-Q101 automotive standards, making it ideal for automotive LED lighting, DC-DC converters, reverse polarity protection, freewheeling, switch mode power supplies, and OR-ing diode functions.
The compact CFP15B package dimensions are 5.8 mm (length) x 4.3 mm (width) x 0.95 mm (height), facilitating high density PCB assembly. Clip-bonding technology within enhances power capability and durability.
Surface mount Schottky barrier rectifier with 3-pin CFP15B plastic package. Low forward voltage and leakage for efficient DC-to-DC conversion. High surge current capability of 170 A for transient protection. Qualified for automotive applications under AEC-Q101 standard.
Wide operating temperature range from -55°C to 175°C for harsh environments. Compact package suitable for space-constrained electronic designs.
This diode is an excellent choice for industrial, automotive electronics, power management, and high-frequency rectification tasks. Compatible with advanced PCB manufacturing and 3D design software tools, the device supports enhanced production efficiency and design flexibility.
Explore a broad selection of high-quality semiconductor components and power rectifiers at EnvMart, optimized for automotive and industrial electronics innovation.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak reverse voltage rating of this model is 100 V.
It supports a maximum continuous forward current of 8 A.
The forward voltage drop at the rated current is 810 mV.
This diode is encapsulated in a CFP15B plastic package suitable for surface mounting.
The operating temperature range is from -55°C to 175°C.
The peak reverse current is 23 mA.
It has a 3-pin single diode configuration.
The maximum non-repetitive forward surge current is 170 A.
Yes, it meets the AEC-Q101 automotive quality standard.
It is suitable for applications such as automotive LED lighting, DC-DC converters, and reverse polarity protection.
The dimensions are 5.8 mm in length, 4.3 mm in width, and 0.95 mm in height.
It utilizes trench maximum efficiency general application (MEGA) technology for enhanced efficiency.
