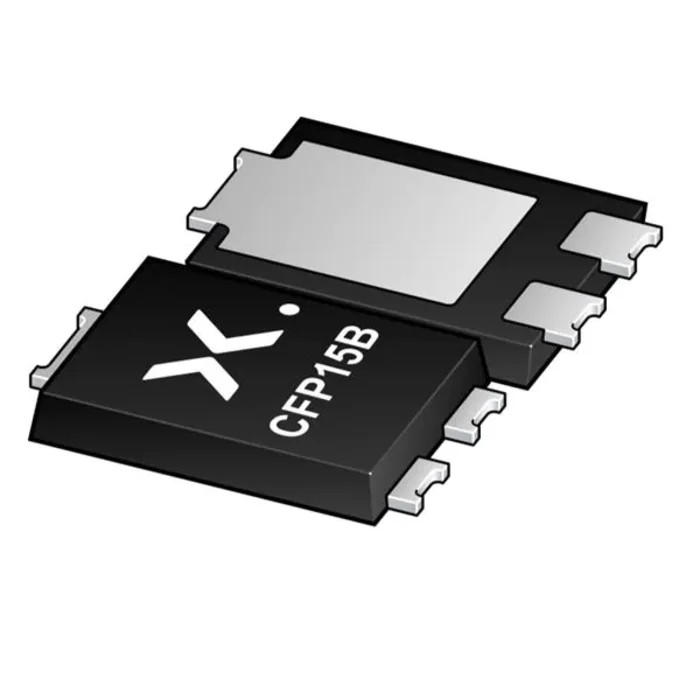

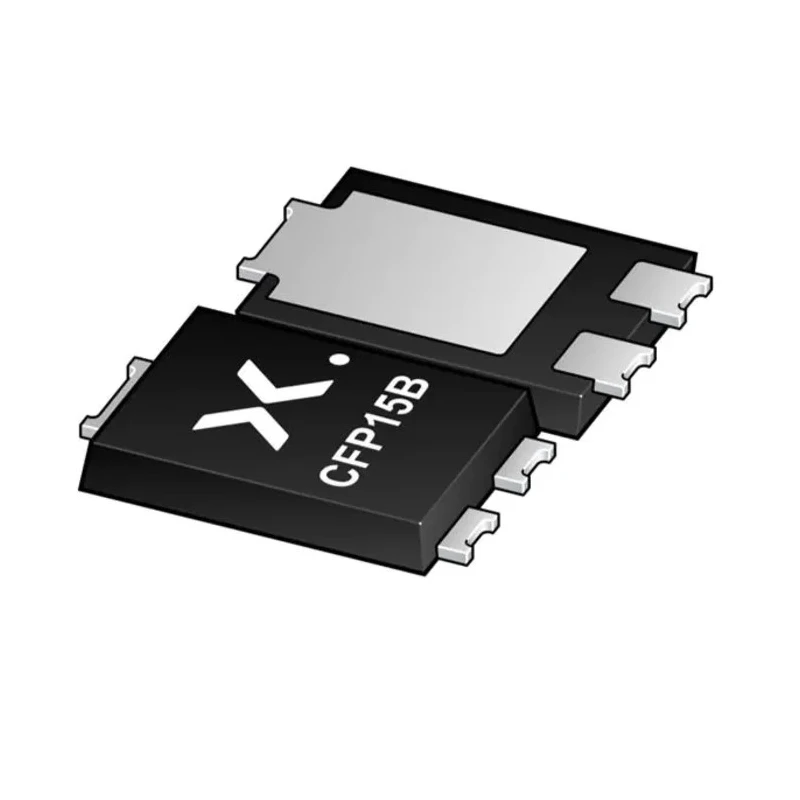

Nexperia 100 V 8 A Schottky Barrier Rectifier Surface Mount CFP15B Package PMEG100T080ELPE-QZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.95mm |
| Length | 5.8mm |
| Model | PMEG100T080ELPE-QZ |
| Width | 4.3mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 175°C |
| Package Type | CFP15B |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | AEC-Q101 |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 8A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 23mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 170A |
| Maximum Forward Voltage Vf | 810mV |
| Peak Reverse Recovery Time trr | 19ns |
Key Features
- Maximum continuous forward current of 8 A for reliable power handling.
- Peak reverse repetitive voltage rating of 100 V ensuring robust diode operation.
- Low forward voltage drop of 810 mV reducing power loss in circuits.
- Peak non-repetitive forward surge current up to 170 A for transient tolerance.
- Qualified for automotive applications under AEC-Q101 standard.
- Compact CFP15B plastic SMD package with 3 pins for easy PCB mounting.
- Wide operating temperature range from -55°C to 175°C.
- Low leakage current and fast reverse recovery time of 19 ns for efficiency.
Product Description
Nexperia PMEG100T080ELPE-QZ is a 100 V, 8 A Schottky barrier rectifier designed for surface mounting in a CFP15B plastic package with a 3-pin configuration. The device is optimized for high efficiency with low forward voltage and leakage current, making it suitable for automotive and general power applications.
This rectifier handles a maximum continuous forward current of 8 A and a peak repetitive reverse voltage of 100 V. It supports a peak non-repetitive forward surge current of 170 A, enabling it to withstand transient power spikes reliably.
Its compact CFP15B package is ideal for space-constrained PCB designs, offering a low-profile form factor with dimensions 5.8 mm length, 4.3 mm width, and 0.95 mm height. The device operates reliably over a wide temperature range from -55°C to 175°C, making it suited for harsh automotive environments.
The PMEG100T080ELPE-QZ is qualified according to the AEC-Q101 automotive standard, ensuring quality and reliability needed for automotive LED lighting, switch mode power supplies, DC-to-DC converters, freewheeling diodes, reverse polarity protection, and OR-ing circuits. The diode’s low Qrr and IRM values contribute to reducing electromagnetic interference and energy loss.
The surface mount CFP15B package features clip-bonding technology to enhance thermal performance and power capability. Maximum continuous forward current of 8 amperes. Peak reverse repetitive voltage of 100 volts. Low forward voltage drop of 810 millivolts.
Surge current capacity up to 170 amperes. Automotive-grade qualification AEC-Q101. Compact and flat 3-pin plastic CFP15B package. Operates in temperature range from -55 to 175 degrees Celsius. Fast reverse recovery time of 19 nanoseconds.
This semiconducting device is ideal for industrial, automotive, telecommunications, and power electronics applications requiring efficient Schottky rectification and robust performance.
Explore additional semiconductor products and Schottky diode solutions in the EnvMart catalog for your electronic design and manufacturing needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 8 A.
It has a peak reverse repetitive voltage rating of 100 V.
The forward voltage drop is 810 mV, which helps reduce power loss in circuits.
This rectifier can handle a peak non-repetitive forward surge current of up to 170 A.
The CFP15B package has dimensions of 5.8 mm in length, 4.3 mm in width, and 0.95 mm in height.
It operates reliably over a wide temperature range from -55°C to 175°C.
Yes, it is qualified according to the AEC-Q101 automotive standard.
The reverse recovery time is 19 ns, contributing to its efficiency.
The CFP15B package features a 3-pin configuration for easy PCB mounting.
The peak reverse current is specified at 23 mA.
This model is a Schottky barrier rectifier, optimized for high efficiency.
It is suitable for automotive LED lighting, switch mode power supplies, DC-to-DC converters, and reverse polarity protection.
