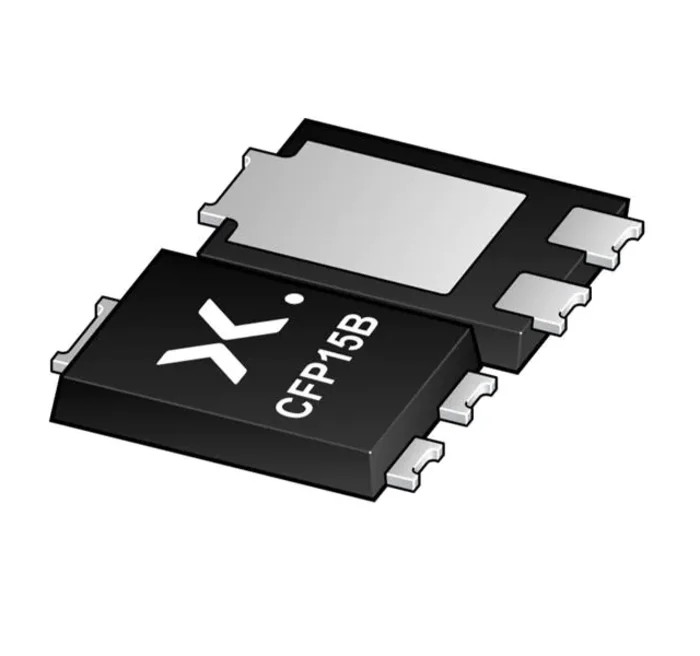

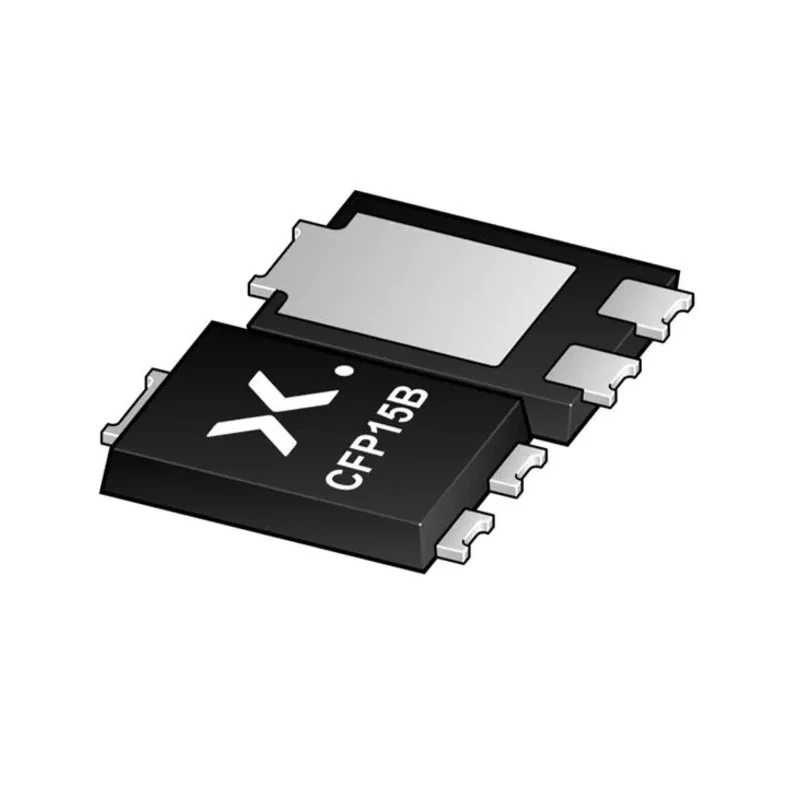

Nexperia 100 V 5 A Schottky Barrier Rectifier PCB Mount 3-Pin CFP15B PMEG100T050ELPEZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.95mm |
| Length | 5.8mm |
| Model | PMEG100T050ELPEZ |
| Width | 4.3mm |
| Mount Type | PCB |
| Series | PMEG100T50ELPE |
| Maximum Operating Temperature | 175°C |
| Package Type | CFP15B |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | IEC 60134 |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 5A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky Barrier |
| Peak Reverse Current Ir | 3mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 100A |
| Maximum Forward Voltage Vf | 810mV |
| Peak Reverse Recovery Time trr | 12ns |
Key Features
- Encapsulated in a CFP15B plastic power package suitable for surface mounting.
- Low forward voltage of 810 mV ensures energy-efficient operation.
- Supports peak reverse repetitive voltage of 100 V for reliable performance.
- High peak non-repetitive surge current capability of 100 A enhances durability.
- Operates effectively across a wide temperature range from -55°C to 175°C.
- Low leakage current and low reverse recovery time of 12 ns improve switching efficiency.
- Conforms to IEC 60134 standards and automotive-grade AEC-Q101 certification.
- Compact dimensions of 5.8 mm length, 4.3 mm width, and 0.95 mm height for space-saving design.
Product Description
The Nexperia PMEG100T050ELPEZ Schottky Barrier Rectifier is a highly reliable electronic component designed for efficient power rectification in demanding industrial applications. Featuring a maximum continuous forward current of 5A and a peak reverse repetitive voltage of 100V, this device is encapsulated in a compact CFP15B plastic surface mount package optimized for PCB mounting.
Its low forward voltage drop of 810 mV minimizes power losses, making it suitable for high-efficiency DC-to-DC converters and automotive electronics such as LED lighting systems. The device exhibits a fast peak reverse recovery time of 12 ns and low leakage currents, enhancing overall switching performance and energy efficiency.
Designed to operate within a broad temperature range from -55°C to 175°C, this Schottky rectifier meets IEC 60134 standards and automotive AEC-Q101 certification, ensuring durability and compliance for automotive and industrial electronic designs.
The device's flat lead surface mount configuration and clip-bonding technology provide robust mechanical strength and excellent thermal performance. With compact dimensions (5.8 mm x 4.3 mm x 0.95 mm), it saves valuable PCB space, supporting high-density circuit designs.
Applications include automotive LED lighting, freewheeling diodes, reverse polarity protection, OR-ing functions, and switch mode power supplies, providing versatile usage in industrial and automotive environments.
Encapsulated in a plastic CFP15B power package suitable for surface mounting. Low forward voltage of 810 mV for efficient power conversion. Maximum forward current of 5A with peak surge of 100A for high power capability.
Compact 3-pin design allows easy integration in PCB layouts. Wide operating temperature range from -55°C to 175°C for harsh environments. Compliant with IEC 60134 and automotive standard AEC-Q101 for quality assurance. Low leakage current and quick recovery improve switching efficiency.
Flat lead and clip-bonding technology enhance thermal and mechanical reliability. Ideal for automotive, industrial power supplies, and LED lighting applications. Explore more Nexperia semiconductor components at EnvMart for trusted quality and performance.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 5A.
It supports a peak reverse repetitive voltage of 100V.
This unit has dimensions of 5.8 mm in length, 4.3 mm in width, and 0.95 mm in height.
The forward voltage drop is 810 mV, which ensures energy-efficient operation.
It has a high peak non-repetitive surge current capability of 100A.
It operates effectively across a wide temperature range from -55°C to 175°C.
This model is designed for PCB mounting and comes in a CFP15B plastic power package.
The peak reverse recovery time is 12 ns, which improves switching efficiency.
It conforms to the automotive standard AEC-Q101.
This model conforms to IEC 60134 standards.
It is suitable for applications such as automotive LED lighting, freewheeling diodes, reverse polarity protection, and switch mode power supplies.
This rectifier has a 3-pin configuration.
