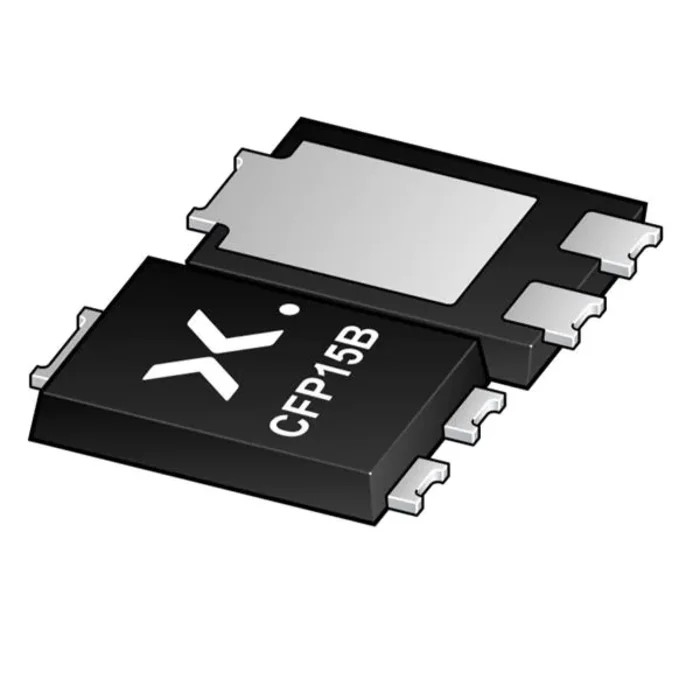

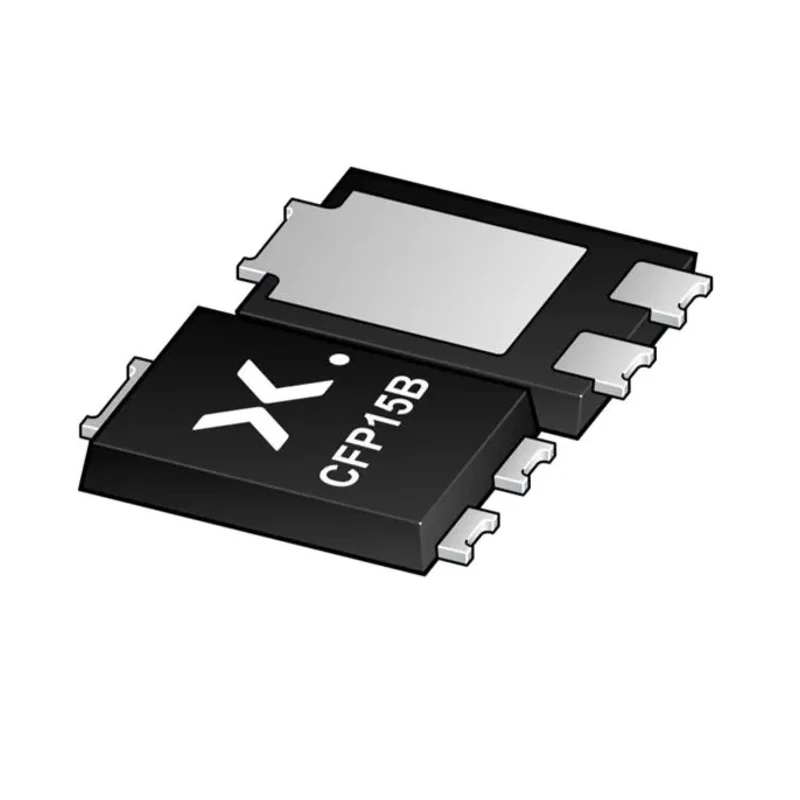

Nexperia 100 V 5 A Rectifier & Schottky Diode Schottky Barrier 3-Pin Surface Mount CFP15B PMEG100T050ELPE-QZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Model | PMEG100T050ELPE-QZ |
| Mount Type | Surface |
| Series | PMEG100T50ELPE |
| Maximum Operating Temperature | 175°C |
| Package Type | CFP15B |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | AEC-Q101 |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 5A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky Barrier |
| Peak Reverse Current Ir | 3mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 100A |
| Maximum Forward Voltage Vf | 810mV |
| Peak Reverse Recovery Time trr | 12ns |
Key Features
- Maximum continuous forward current rating of 5 amperes for reliable performance.
- Peak reverse repetitive voltage of 100 volts supporting high-voltage applications.
- Low leakage current enhancing efficiency and reducing power loss.
- Fast peak reverse recovery time of 12 nanoseconds enabling high-speed switching.
- Rugged plastic package with clip-bonding technology for high power capability.
- Qualifies for AEC-Q101 automotive standard ensuring suitability for automotive electronics.
- Compatible with high-temperature operation up to 175°C for robust environments.
- Designed for low forward voltage drop of 810 millivolts minimizing conduction losses.
Product Description
The Nexperia PMEG100T050ELPE-QZ is a high-efficiency Schottky barrier rectifier diode tailored for surface mount applications in electronic and automotive devices. Encapsulated in a CFP15B compact plastic package, it features a low forward voltage drop of 810 mV and a maximum continuous forward current of 5 A, making it suitable for power-sensitive circuits.
This diode supports a peak reverse repetitive voltage of 100 V and a peak non-repetitive forward surge current of 100 A, accommodating transient conditions without damage. The device's peak reverse recovery time of 12 ns allows fast switching, critical in DC-to-DC converters, automotive LED lighting, and switch mode power supplies.
Constructed using clip-bonding technology, it ensures high power dissipation and durability under demanding conditions. It provides low leakage and low Qrr (reverse recovery charge) characteristics, leading to high efficiency and reduced electromagnetic interference.
This product complies with the AEC-Q101 automotive qualification standard and is recommended for automotive applications involving freewheeling diodes, reverse polarity protection, and OR-ing circuits. Operating temperature range spans from -55°C to 175°C, making it reliable for harsh industrial environments.
Applications include industrial automation, automotive electronics, power management modules, and general electronic circuits requiring Schottky barrier rectifiers with robust surface mount packaging and high electrical performance.
Maximum continuous forward current: 5 A. Peak reverse repetitive voltage: 100 V. Low forward voltage drop of 810 mV. Fast recovery time of 12 ns. AEC-Q101 certified for automotive use. Compact 3-pin CFP15B surface mount package.
Supports high surge currents up to 100 A. Wide operating temperature from -55°C to 175°C. Low leakage current and high efficiency.
Explore the Electronics & Electricals category at EnvMart for a wide range of semiconductor devices including Schottky diodes and rectifiers for professional industrial and automotive applications.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of this model is 5 amperes.
It supports a peak reverse repetitive voltage of 100 volts.
The forward voltage drop is 810 millivolts.
The peak reverse recovery time is 12 nanoseconds, allowing for fast switching.
The operating temperature range spans from -55°C to 175°C.
It is encapsulated in a CFP15B compact plastic package.
Yes, it qualifies for the AEC-Q101 automotive standard, ensuring its suitability for automotive electronics.
The peak non-repetitive forward surge current is 100 amperes.
This model is a Schottky barrier rectifier.
The peak reverse current is 3 milliamperes.
It uses a surface mount configuration.
This diode is suitable for applications in industrial automation, automotive electronics, and power management modules.
