Nexperia Resistor-Equipped Transistor 100 mA NPN, 50 V, 3-Pin DFN1412D-3 PDTC124EQCZ

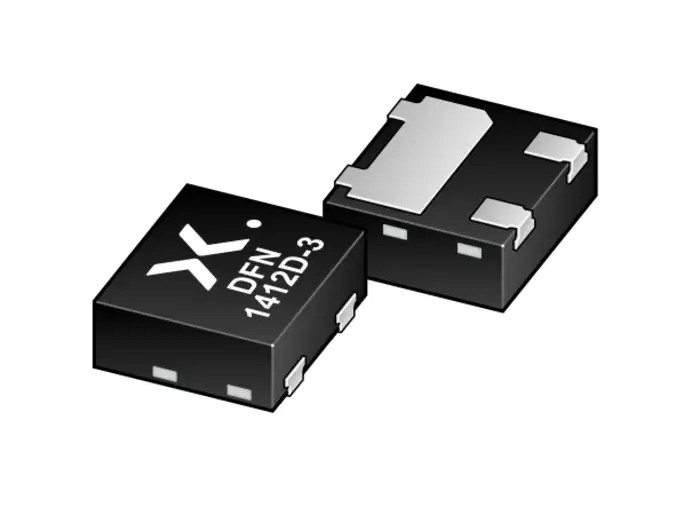

Nexperia PDTC124EQCZ resistor-equipped transistor is an ultra-small surface-mount NPN transistor packaged in a 3-pin DFN1412D-3 (SOT8009) plastic device with side-wettable flanks, enabling automatic optical inspection of solder joints.

Its maximum DC collector current rating is 100 mA with a maximum collector emitter voltage of 50 V, suitable for a variety of electronic switching and amplification applications.

Built-in resistors reduce component count and simplify circuit design, making it an efficient, cost-saving alternative to traditional transistors like the BC857 in digital applications, including controlling IC inputs and switching loads.

The device operates over a robust temperature range of -55°C to 150°C and supports a maximum transition frequency of 230 MHz for responsive high-speed operation.

Compliant with RoHS and the AEC-Q101 automotive standard, this transistor is ideal for industrial, automotive, and consumer electronic uses requiring compact, reliable switching devices.

100 mA output current capability. Built-in resistors simplifying design and reducing cost. Low package height of 0.5 mm suitable for automated assembly. Automotive standard AEC-Q101 compliant. RoHS compliant for environmental safety.

Optimized for digital switching and IC control applications. Surface mount package with side-wettable flanks for AOI inspection. This transistor supports various electronic and industrial applications including digital circuit switching, automotive electronic controls, and compact consumer device designs.
