| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Model | PDTC114EQBZ |
| Mount Type | Surface |
| Series | PDTC114E |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1110D-3 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 30 |
| Maximum Collector Emitter Voltage Vceo | 50V |
| Minimum DC Current Gain hFE | 30 |
| Transistor Polarity | NPN |
| Maximum Emitter Base Voltage VEBO | 10V |
| Maximum Collector Base Voltage VCBO | 50V |
| Automotive Standard | AEC-Q101 |
| Maximum DC Collector Current Idc | 100mA |
| Transistor Configuration | NPN |
| Maximum Transition Frequency ft | 250MHz |

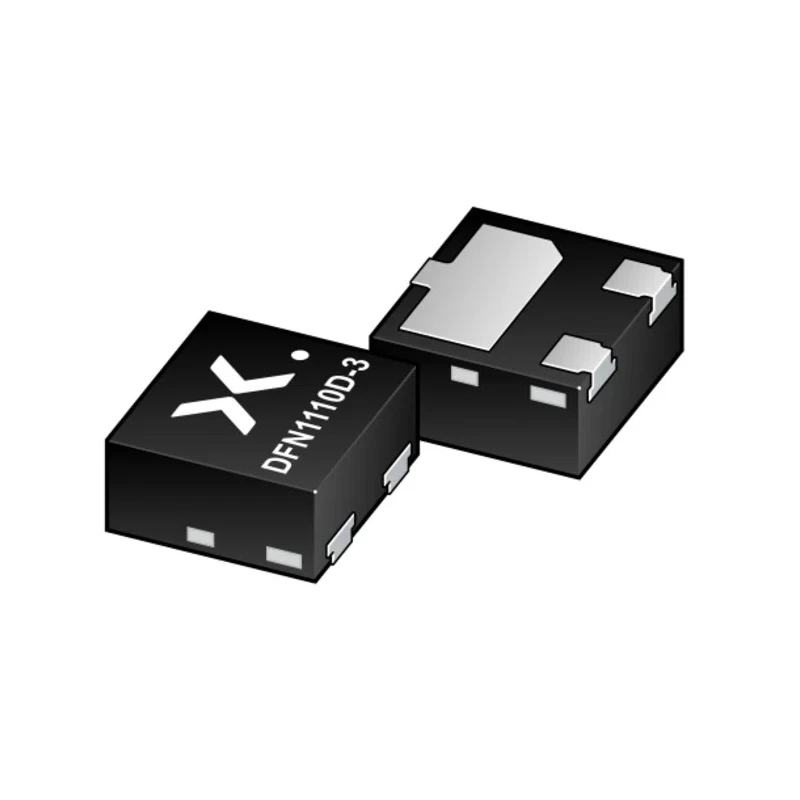

Nexperia PDTC114EQBZ resistor-equipped transistor is an NPN bipolar transistor designed for surface mount technology in an ultra-small DFN1110D-3 plastic package with side-wettable flanks. It offers a maximum DC collector current of 100 mA and a maximum collector emitter voltage of 50 V, making it suitable for robust switching and amplification tasks in various electronic circuits.
This transistor integrates built-in resistors which reduce the total component count required in circuit design and lowers overall system cost. Its low profile height of 0.5 mm facilitates compact PCB assembly and is compatible with automatic optical inspection (AOI) methods, enhancing manufacturing quality control.
With operational temperature range from -55°C to 150°C, it is suitable for demanding environments including automotive and industrial applications, certified to meet AEC-Q101 automotive standard.
The device's maximum transition frequency of 250 MHz supports high-speed switching applications commonly found in digital electronics, control IC inputs, and switching loads. It serves as a cost-effective replacement for the BC857 series in digital designs.
Typical use cases include industrial electronic manufacturing, automotive electronics, digital signal processing, and precision control circuits. The robust design minimizes pick and place costs and simplifies PCB layout.
The transistor features built-in resistors simplifying analysis and assembly. 30-pin DFN1110D-3 package provides compact footprint with high reliability. Surface mount technology (SMT) compatible with automatic optical inspection (AOI).
Conforms to RoHS standards ensuring environmental compliance. Compliant with AEC-Q101 automotive quality standards. High transition frequency for fast switching capabilities. Wide operating temperature range suitable for harsh environments.
Maximum DC collector current of 100 mA for versatile power handling. Maximum collector emitter and collector base voltage ratings of 50 V. Applications include digital circuits, controlling IC inputs, and automotive electronics.
