| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Model | PDTC124EQBZ |
| Mount Type | Surface |
| Series | PDTC124E |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1110D-3 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Collector Emitter Voltage Vceo | 50V |
| Minimum DC Current Gain hFE | 60 |
| Transistor Polarity | NPN |
| Maximum Emitter Base Voltage VEBO | 10V |
| Maximum Collector Base Voltage VCBO | 50V |
| Automotive Standard | AEC-Q101 |
| Maximum DC Collector Current Idc | 100mA |
| Transistor Configuration | NPN |
| Maximum Transition Frequency ft | 230MHz |

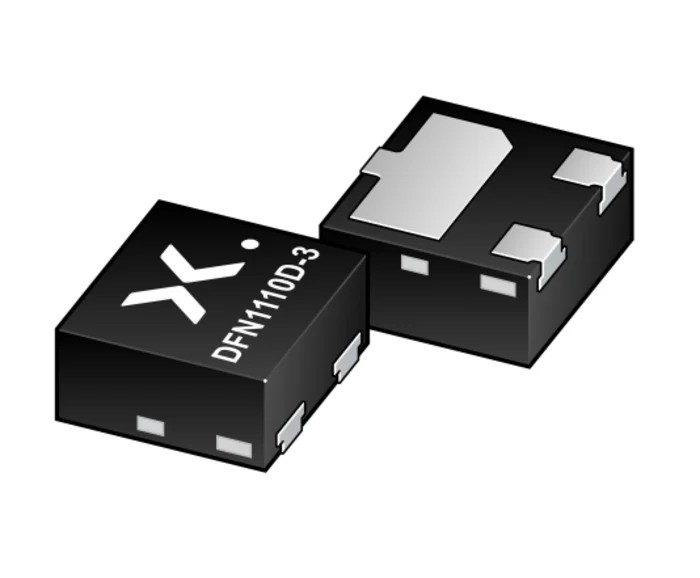

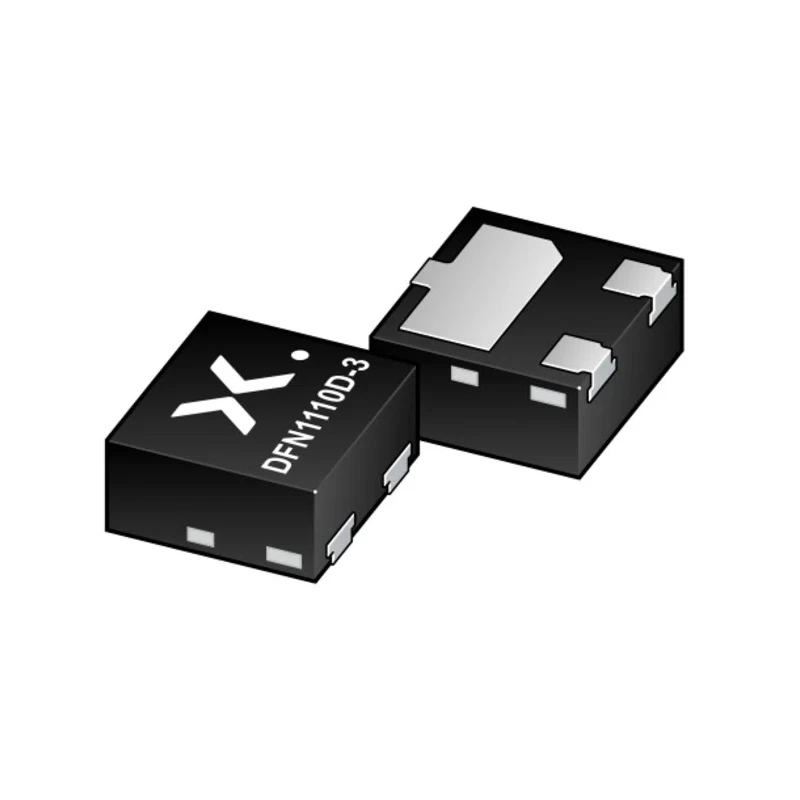

Nexperia PDTC124EQBZ is a new resistor-equipped NPN transistor designed for compact electronic applications with a maximum DC collector current of 100 mA and a maximum collector-emitter voltage of 50 V. Its ultra-small DFN1110D-3 surface-mount package, with a height of just 0.5 mm and side-wettable flanks, facilitates low-profile assembly and automated optical inspection (AOI).
This transistor integrates built-in resistors, which simplifies circuit design and reduces the number of discrete components required. It operates within a temperature range of -55°C to 150°C and offers a high transition frequency of 230 MHz, making it suitable for digital switching and controlling IC inputs in a variety of industrial, commercial, and automotive electronic systems.
The PDTC124EQBZ transistor is a cost-saving alternative to the BC857 series, suitable for use in digital applications requiring efficient switching and signal amplification. It meets RoHS compliance and the automotive standard AEC-Q101, ensuring reliability in automotive grade applications.
Built-in resistors simplify design and reduce component count. DFN1110D-3 3-pin surface mount package with side-wettable flanks. Maximum collector current of 100 mA and voltage ratings tailored for digital applications. Wide operating temperature range from -55°C to 150°C.
High-frequency operation up to 230 MHz. Applicable in industrial, automotive, and general-purpose digital circuits.
Choose Nexperia PDTC124EQBZ for efficient transistor switching solutions in compact electronic assemblies. Explore more semiconductor components in the EnvMart catalog for your engineering design needs.
