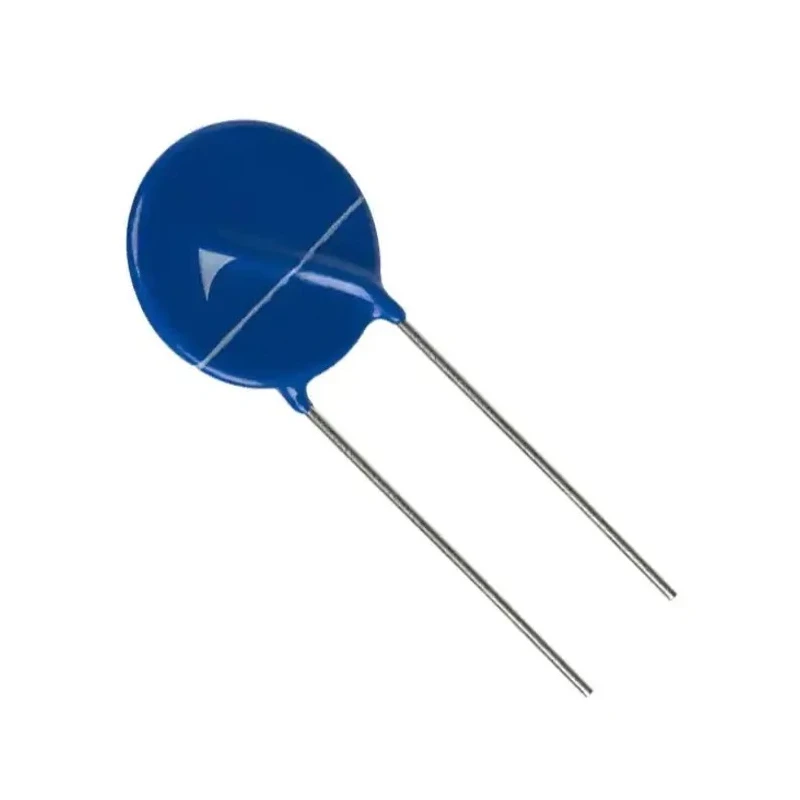

TDK StandardD Metal Oxide Varistor 210 pF Capacitance 100 A Clamping 2970 V Varistor Voltage 1800 V B72220S0102K101
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 21.5mm |
| Brand | TDK |
| THICKNESS | 11.4mm |
| Length | 28.5mm |
| Model | B72220S0102K101 |
| Packaging | Tape & Reel |
| Mount Type | Through Hole |
| Series | StandardD |
| Maximum Operating Temperature | 105°C |
| Capacitance | 210pF |
| Minimum Operating Temperature | -40°C |
| Maximum dc Voltage | 1465V dc |
| Standards/Approvals | IEC, VDE, CSA, UL |
| Pin Count | 2 |
| Maximum AC Voltage | 1100V ac |
| Clamping Voltage VC | 2970V |
| Clamping Current | 100A |
| Maximum Surge Current | 6.5kA |
| Varistor Voltage | 1800 V |
Key Features
- This varistor features a clamping voltage of 2970 V ensuring effective surge protection.
- It is designed with through-hole mounting for reliable PCB installation.
- Maximum AC voltage is rated at 1100 V with DC voltage rating up to 1465 V.
- Wide operating temperature range from -40°C to 105°C allows for diverse application environments.
- Constructed with epoxy resin flame-retardant coating compliant to UL 94 V-0 standards.
- Terminals made of tinned wire ensure durable electrical connection.
- Compact dimensions include a diameter of 21.5 mm, length of 28.5 mm, and thickness of 11.4 mm.
- Suitable for industrial electronic surge protection applications requiring high reliability and performance.
Product Description
TDK B72220S0102K101 StandardD Metal Oxide Varistor is engineered to provide robust surge protection in electronic circuits. It features a capacitance of 210 pF and supports a high clamping current of 100 A with a varistor voltage of 1800 V, optimized for reliable defense against voltage spikes.
The varistor has a clamping voltage of 2970 V, allowing it to clamp transient voltage surges effectively. Its through-hole mounting design facilitates secure and stable PCB mounting, ideal for electronic component assemblies.
With maximum AC and DC voltages of 1100 V and 1465 V respectively, this varistor suits a broad range of power applications. It operates reliably within a temperature range of -40°C to 105°C, supporting durability in challenging industrial and commercial environments.
Manufactured with a flame-retardant epoxy resin coating that meets UL 94 V-0 fire safety standards, the component ensures safe operation. The tinned wire terminals enhance electrical connectivity and resilience.
Measuring 21.5 mm in diameter, 28.5 mm in length, and 11.4 mm in thickness, this compact varistor fits well in dense board layouts requiring efficient surge suppression.
These properties make it suitable for use in industrial electronics, HVAC controls, manufacturing equipment, power distribution modules, and other laboratory or commercial surge protection systems.
This Varistor features a clamping voltage of 2970 V ensuring effective surge protection. It is designed with through-hole mounting for reliable PCB installation. Maximum AC voltage is rated at 1100 V with DC voltage rating up to 1465 V.
Wide operating temperature range from -40°C to 105°C allows for diverse application environments. Constructed with epoxy resin flame-retardant coating compliant to UL 94 V-0 standards. Terminals made of tinned wire ensure durable electrical connection.
Compact dimensions include a diameter of 21.5 mm, length of 28.5 mm, and thickness of 11.4 mm. Suitable for industrial electronic surge protection applications requiring high reliability and performance. Explore our Electronics Components category for more reliable surge protection components and industrial-grade electronic parts at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The clamping voltage of this varistor is 2970 V, which ensures effective surge protection against voltage spikes.
This model has a maximum AC voltage rating of 1100 V and a maximum DC voltage rating of 1465 V.
The capacitance value of this varistor is 210 pF.
It operates within a temperature range of -40°C to 105°C, making it suitable for diverse application environments.
This varistor is designed for through-hole mounting, which facilitates reliable PCB installation.
The varistor has a diameter of 21.5 mm, a length of 28.5 mm, and a thickness of 11.4 mm.
It can handle a maximum surge current of 6.5 kA.
This model complies with IEC, VDE, CSA, and UL standards, ensuring safety and reliability.
It is constructed with an epoxy resin flame-retardant coating that meets UL 94 V-0 standards.
This varistor has a pin count of 2.
It is suitable for industrial electronic surge protection applications, including HVAC controls and power distribution modules.
The clamping current rating for this varistor is 100 A, providing robust surge protection.
