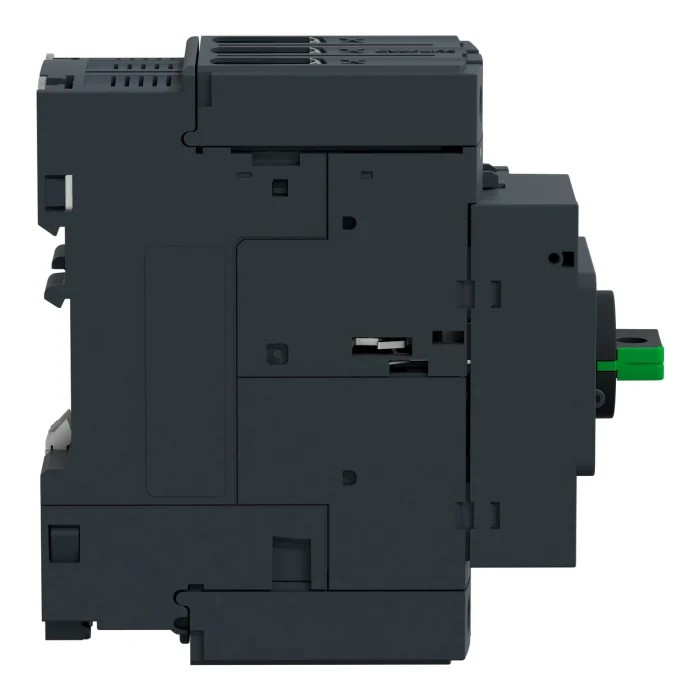

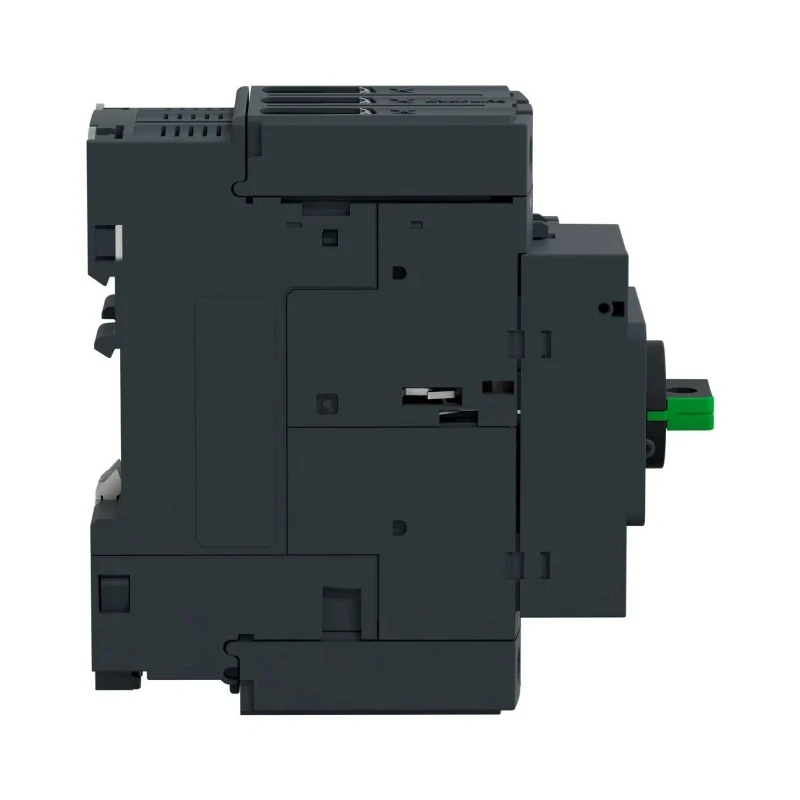

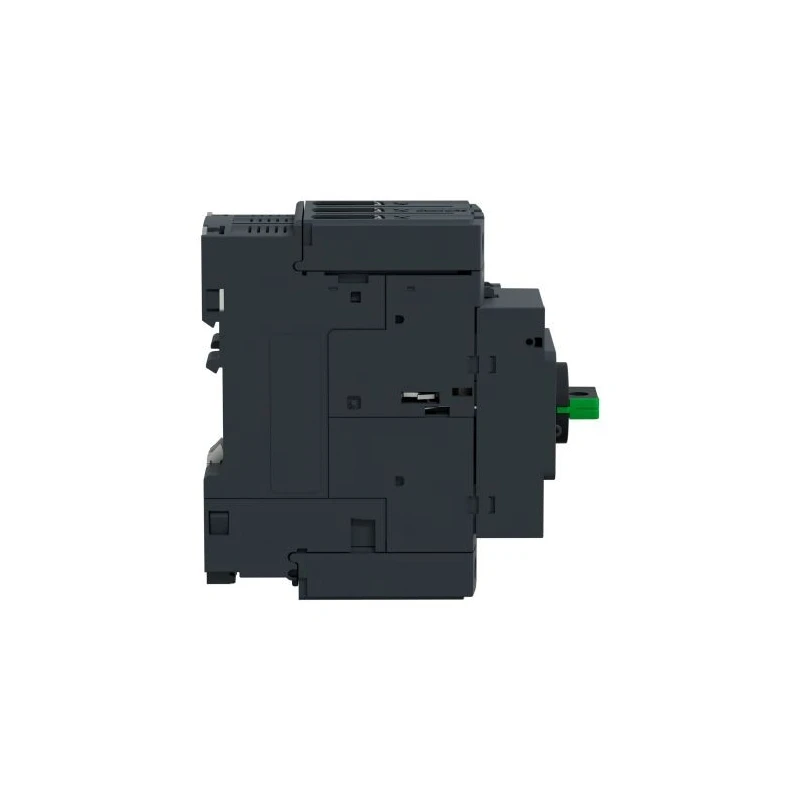

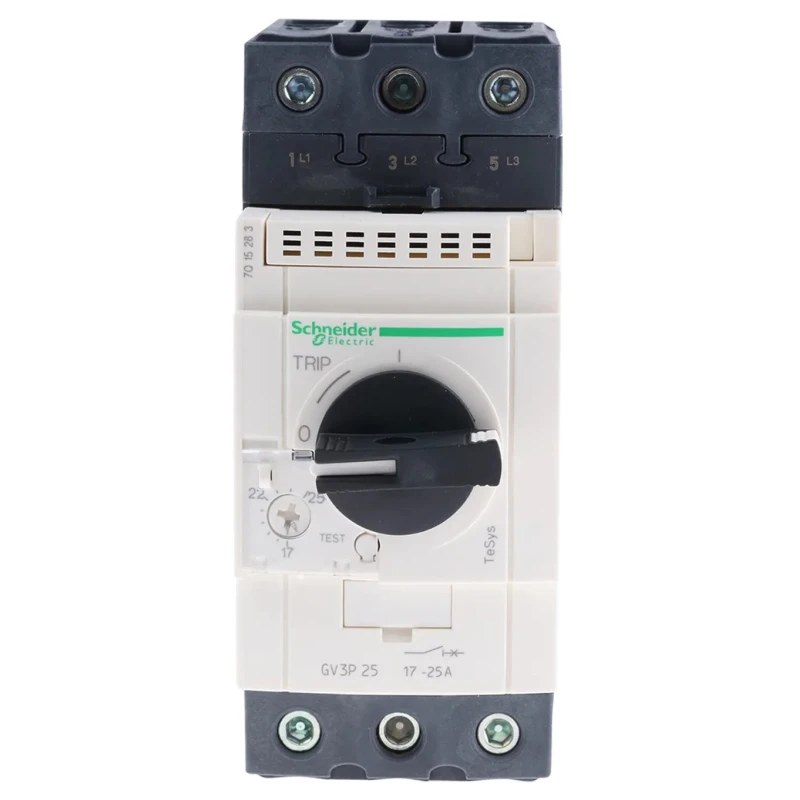

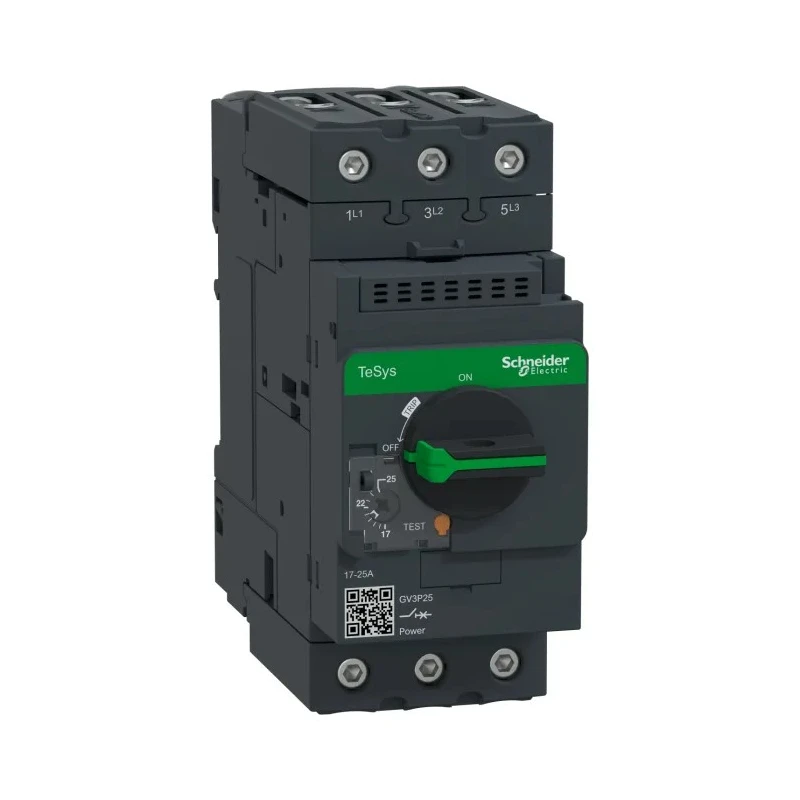

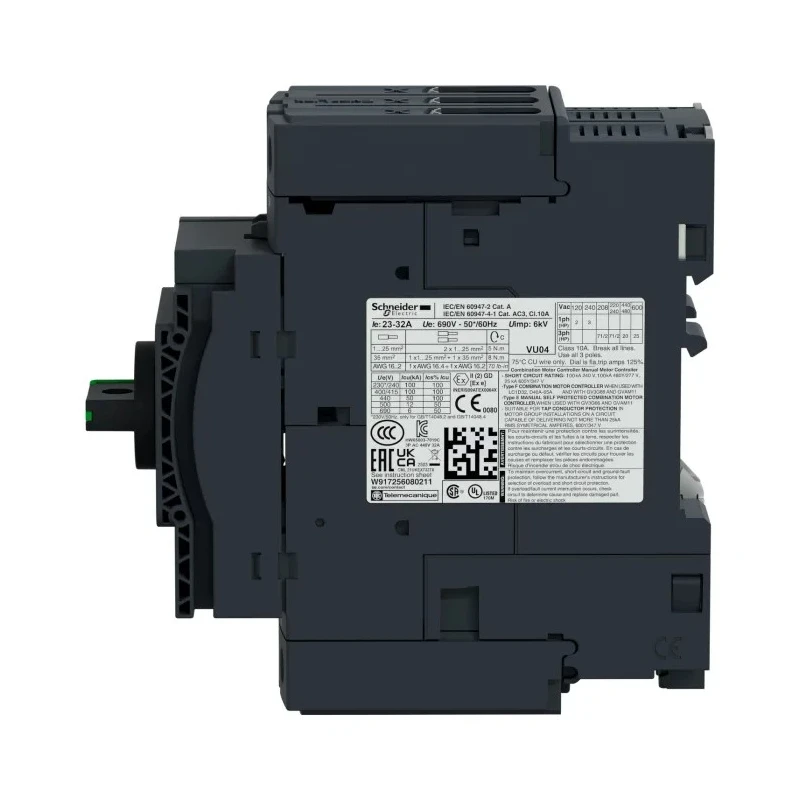

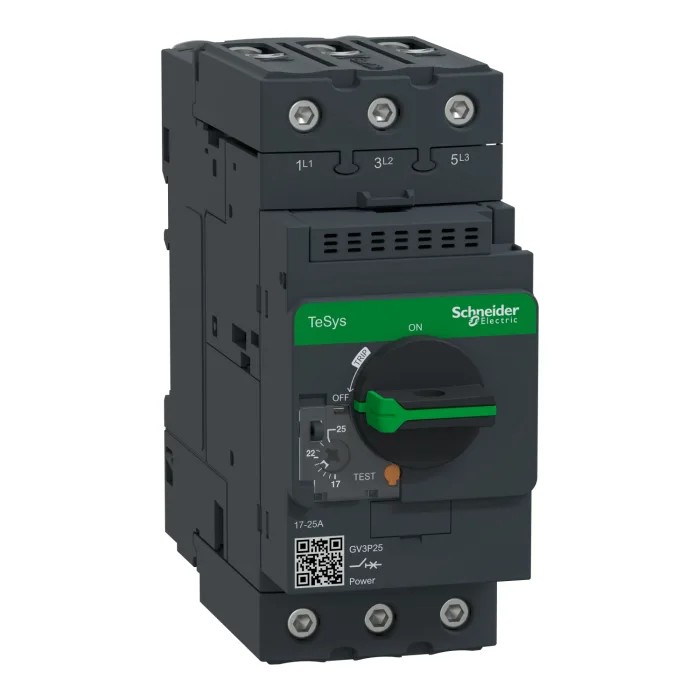

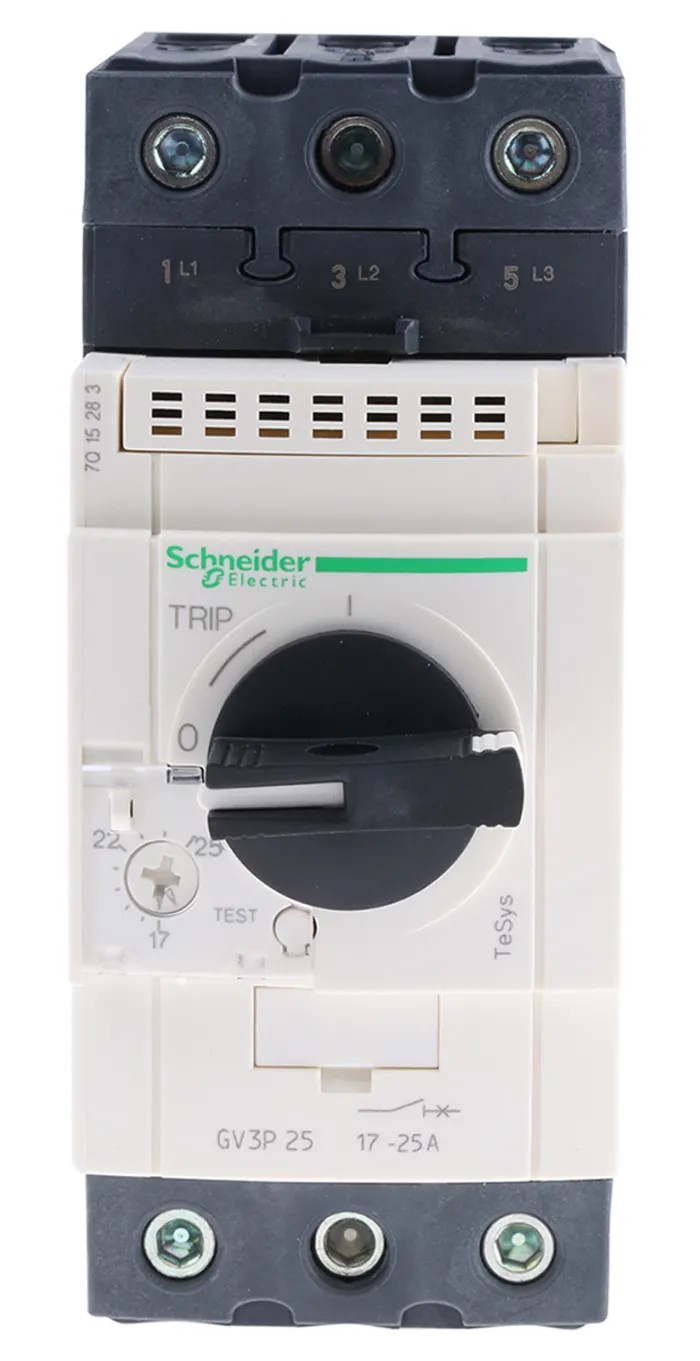

Schneider Electric TeSys GV Thermal Circuit Breaker 23A Current Rating 3-Pole Direct Mount GV3P25
Specifications
| Country of Origin | France |
|---|---|
| Range | TeSys |
| Brand | Schneider Electric |
| Height | 132mm |
| Model | GV3P25 |
| Depth | 136mm |
| Width | 55mm |
| Mount Type | Direct |
| Current Rating | 23A |
| Series | TeSyS GV |
| Terminal type | Screw |
| Breaking Capacity | 6kA |
| Number of Poles | 3 |
| Standards/Approvals | CE, RoHS |
| Rated AC Voltage | 690V ac |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Break Time | Medium |
| MOTOR CIRCUIT BREAKER, GV3ME25Brand | Schneider Electric |
Key Features
- Offers precise motor overload protection with 23A current rating.
- Three-pole construction suitable for industrial AC networks.
- Thermal-magnetic tripping mechanism detects overloads and short circuits.
- Toggle switch actuator permits quick manual reset after trip.
- Screw terminal design ensures secure and reliable conductor connections.
- Rated for AC voltage up to 690V at common industrial frequencies.
- High breaking capacity of 6 kA for effective fault interruption.
- Mountable on 35mm DIN rail or panel via M4 screws for flexibility.
Product Description
Schneider Electric GV3P25 Thermal Circuit Breaker is a robust 3-pole thermal-magnetic breaker designed for the protection of motors and industrial electrical circuits. With a 23A current rating and rated AC voltage of 690V, it combines overload and short-circuit protection via a thermal-magnetic tripping mechanism.

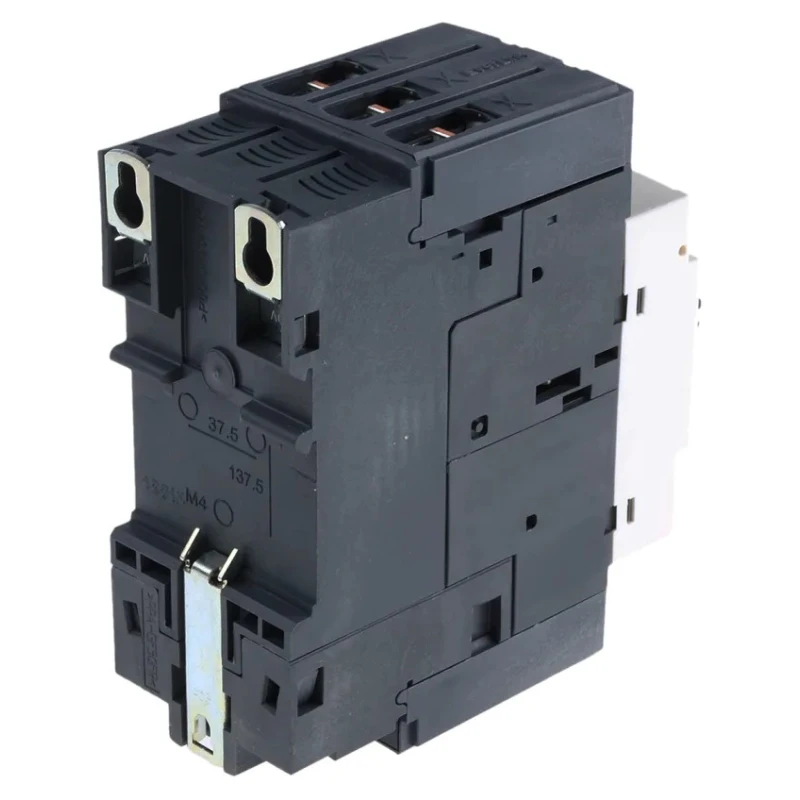

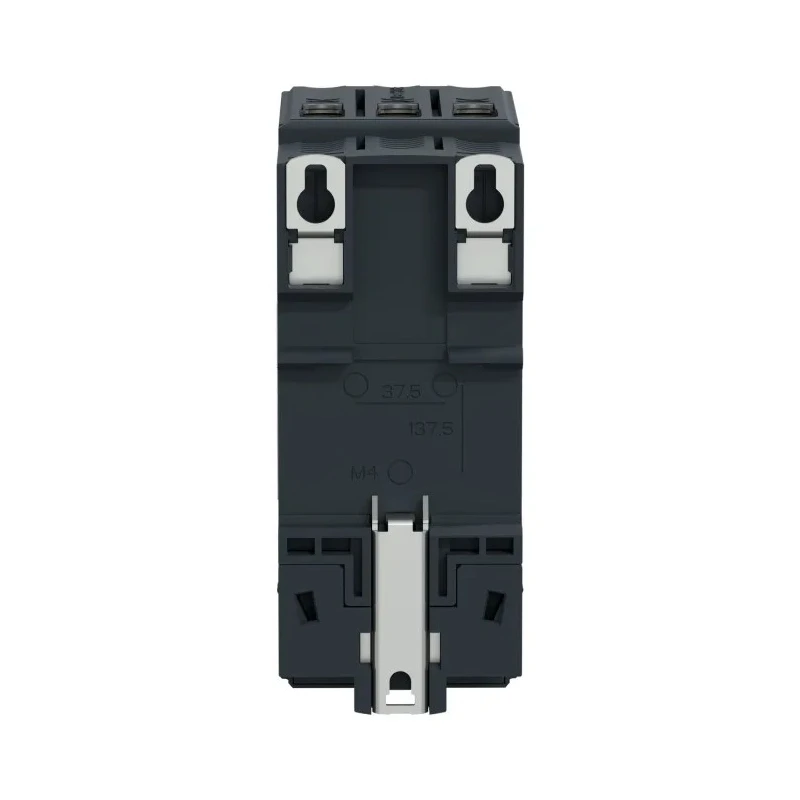

This device is intended for direct mounting either on a 35mm symmetrical DIN rail or a panel using three M4 screws, ensuring ease of installation and maintenance in control panels and factory automation systems.
It offers a nominal breaking capacity of 6 kA, enabling it to handle high fault conditions typical in industrial environments. The toggle reset actuator allows rapid manual reclosure after a trip, enhancing system uptime.
The screw terminal design ensures secure conductor connections, maximizing electrical reliability. Designed according to IEC 947 and UL 508 type E standards, it also complies with CE and RoHS certifications.
This circuit breaker operates efficiently within ambient temperatures from -20 to 60 °C and altitudes up to 3000 meters. Its mechanical and electrical durability is rated for 50,000 cycles, suitable for continuous duty in AC-3 industrial applications.
Offers precise motor overload protection with 23A current rating. Three-pole construction suitable for industrial AC networks. Thermal-magnetic tripping mechanism for combined overload and short-circuit response. Toggle switch actuator permits quick manual reset after trip.
Screw terminal design ensures secure and reliable conductor connections. Rated for AC voltage up to 690V at industrial frequencies. High breaking capacity of 6 kA enables effective fault interruption. Mountable on DIN rail or panel with screws for flexible installation.
Operational ambient temperature from -20 to 60 °C and altitude up to 3000 m. Durability of 50,000 mechanical and electrical cycles for industrial use.
This thermal circuit breaker is ideal for motor protection in panel starters, factory automation, electrical distribution in machinery cabinets, and protection of pumps and compressors on site. It enhances safety and reliability in industrial, construction, manufacturing, and HVAC applications.
Explore more Schneider Electric products and Thermal Circuit Breakers in the EnvMart catalog for comprehensive electrical protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a current rating of 23A.
The rated AC voltage is 690V.
This thermal circuit breaker features a three-pole construction.
It has a breaking capacity of 6 kA.
It utilizes a thermal-magnetic tripping mechanism for overload and short-circuit protection.
The dimensions are 132mm in height, 136mm in depth, and 55mm in width.
It can be directly mounted on a 35mm DIN rail or a panel using three M4 screws.
It operates efficiently within ambient temperatures from -20 to 60 °C.
It complies with CE and RoHS certifications, as well as IEC 947 and UL 508 type E standards.
It features a toggle switch actuator for quick manual reset after a trip.
It is rated for 50,000 mechanical and electrical cycles.
It is suitable for motor protection in panel starters, factory automation, and electrical distribution in machinery cabinets.
