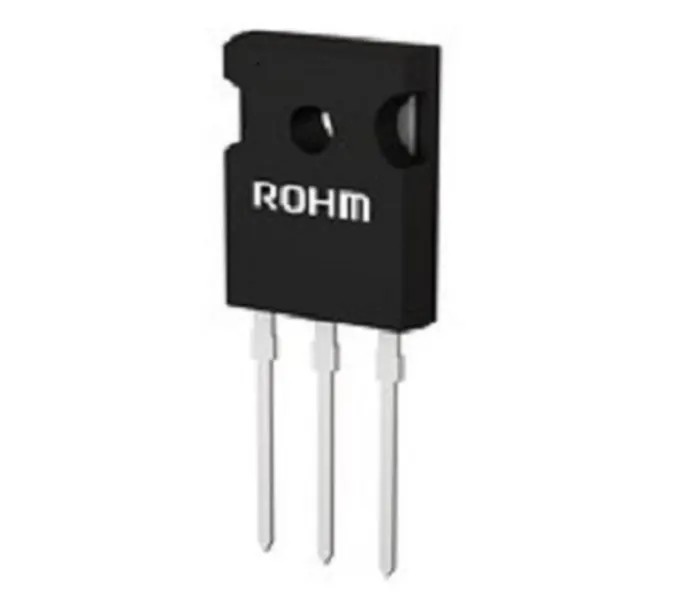

ROHM IGBT 20 A 650 V 3-Pin TO-247GE Through Hole RGTH40TS65GC13
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Model | RGTH40TS65GC13 |
| Mount Type | Through Hole |
| Series | RGTH40TS65GC13 |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-247GE |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Continuous Collector Current Ic | 20A |
| Maximum Collector Emitter Voltage Vceo | 650V |
| Maximum Collector Emitter Saturation Voltage VceSAT | 1.6V |
| Maximum Power Dissipation Pd | 144W |
| Maximum Gate Emitter Voltage VGEO | ±30 V |
Key Features
- This IGBT has a maximum power dissipation rating of 144 Watts.
- The device operates at a maximum temperature of 175 degrees Celsius and a minimum temperature down to -40 degrees Celsius.
- Designed with low collector emitter saturation voltage of 1.6 V for improved efficiency.
- The gate emitter voltage rating is ±30 Volts, ensuring robust electrical performance.
- Compliance with RoHS standards guarantees this device's environmentally friendly manufacturing process.
- Its through-hole mounting provides mechanical stability in industrial circuit boards.
Product Description
ROHM RGTH40TS65GC13 is an advanced Field Stop Trench IGBT designed to deliver high-speed switching with minimal power loss, ideal for demanding industrial and electronic applications. Featuring a 3-Pin TO-247GE through-hole package, this transistor supports maximum continuous collector current of 20 Amps and withstands collector-emitter voltages up to 650 Volts, making it suitable for power control and switching in various electronic circuits.
The device demonstrates a maximum power dissipation of 144 Watts, supporting high-load conditions effectively. It operates over a wide temperature range from -40°C minimum to 175°C maximum, allowing reliable performance in harsh environmental conditions. The low collector emitter saturation voltage of 1.6 V enhances operational efficiency by reducing conduction losses.
The gate-emitter voltage tolerance of ±30 V ensures high gate control stability and protection. The IGBT meets RoHS standards, reinforcing its compliance with modern environmental regulations through lead-free plating and manufacturing practices. Its through-hole mounting type provides durable mechanical attachment suitable for PCB integration in industrial machinery, power electronics, and HVAC systems.
This semiconductor component is ideally suited for use in industrial automation, power supply design, motor control, renewable energy systems, and other electrical engineering applications requiring fast switching and high current capacity.
This IGBT provides a continuous collector current of 20 A for robust power handling. Its maximum collector-emitter voltage rating is 650 V for high voltage tolerance. The device supports a maximum power dissipation of 144 W to handle demanding loads.
Equipped with low saturation voltage for energy-efficient switching. Compliance with RoHS regulations ensures environmentally responsible use. The through-hole package type enhances mounting reliability on circuit boards.
Explore a comprehensive range of semiconductor components and electrical devices by ROHM and other leading brands on EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous collector current for this IGBT is 20 Amps.
This model has a maximum collector-emitter voltage rating of 650 Volts.
It supports a maximum power dissipation of 144 Watts.
The device operates over a temperature range from -40°C to 175°C.
The maximum collector-emitter saturation voltage for this IGBT is 1.6 Volts.
The gate-emitter voltage rating is ±30 Volts.
It features a through-hole mounting type, which provides mechanical stability on circuit boards.
This model is packaged in a TO-247GE configuration.
Yes, it complies with RoHS standards, ensuring environmentally friendly manufacturing practices.
This IGBT has a pin count of 3.
It is suitable for applications in industrial automation, power supply design, motor control, and renewable energy systems.
The country of origin for this IGBT is India.
