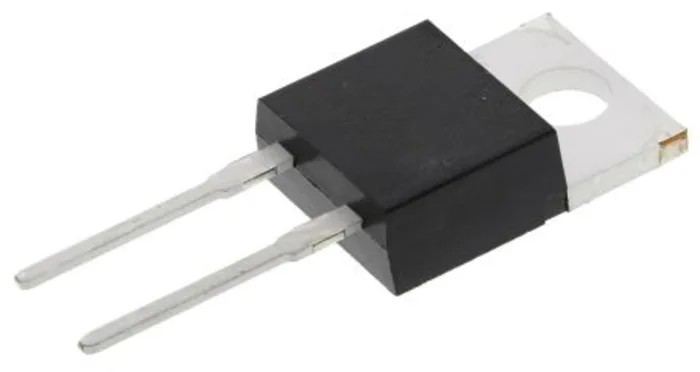

Microchip 1200 V 30 A Schottky Barrier Diode TO-220 Package MSC030SDA120K
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Model | MSC030SDA120K |
| Mount Type | Through Hole |
| Series | MSC0 |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Maximum Continuous Forward Current If | 30A |
| Peak Reverse Repetitive Voltage Vrrm | 1200V |
| Rectifier Type | Schottky |
| Peak Non-Repetitive Forward Surge Current Ifsm | 75A |
| Maximum Forward Voltage Vf | 1.8V |
Key Features
- Provides low forward voltage of 1.8 V for efficient power conversion.
- Designed for through-hole mounting in a TO-220 package style.
- Operates reliably from -55°C up to 175°C maximum temperature.
- Capable of 75 A peak non-repetitive forward surge current.
- RoHS compliant, ensuring environmental safety and regulatory adherence.
- Features zero recovery characteristics suitable for high switching frequency applications.
- Low leakage current minimizes power losses during operation.
- Avalanche-energy rated for robustness under transient conditions.
Product Description
Microchip MSC030SDA120K is a high-performance Schottky Barrier Diode packaged in a TO-220 format, engineered for demanding power electronics applications. This device supports a maximum continuous forward current of 30 A with a peak reverse repetitive voltage rating of 1200 V, making it suitable for power supply, rectification, and parallel diode usage.
The diode delivers a low forward voltage drop of 1.8 V, which improves energy efficiency and reduces heat dissipation. Its through-hole mount type and familiar TO-220 package facilitate integration into many industrial and commercial electronic assemblies.
Operating temperature ranges from a minimum of -55°C to a maximum of 175°C, ensuring reliable performance in harsh environmental conditions. It can withstand peak non-repetitive forward surge currents up to 75 A, providing transient overload resilience.
Designed with zero recovery characteristics and low leakage current, this schottky diode ensures minimal switching losses and energy-efficient operation. The device is avalanche-energy rated and RoHS compliant, aligning with modern environmental regulations.
Industrial and commercial use cases include power conversion, switching supplies, voltage clamping, and protection circuits in electronic and electrical systems. It is widely applicable in power electronics, automotive electronics, and renewable energy implementations.
This product is a key component for design engineers seeking durable and efficient Schottky barrier diodes in medium to high-voltage and current applications. Provides low forward voltage of 1.8 V for efficient power conversion.
Designed for through-hole mounting in a TO-220 package style. Operates reliably from -55°C up to 175°C maximum temperature. Capable of 75 A peak non-repetitive forward surge current. RoHS compliant, ensuring environmental safety and regulatory adherence.
Features zero recovery characteristics suitable for high switching frequency applications. Low leakage current minimizes power losses during operation. Avalanche-energy rated for robustness under transient conditions. Explore the complete Microchip range of Schottky Diodes & Rectifiers on EnvMart for power electronics and semiconductor applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the MSC030SDA120K is 30 A.
This model has a peak reverse repetitive voltage rating of 1200 V.
The forward voltage drop of this Schottky diode is 1.8 V.
It operates reliably within a temperature range from -55°C to 175°C.
This diode is designed for through-hole mounting in a TO-220 package style.
The peak non-repetitive forward surge current for this model is 75 A.
Yes, the MSC030SDA120K is RoHS compliant, ensuring environmental safety and regulatory adherence.
This diode is suitable for power conversion, switching supplies, voltage clamping, and protection circuits in electronic systems.
The rectifier type of this product is Schottky.
Key features include low forward voltage, zero recovery characteristics, low leakage current, and avalanche-energy rating.
The country of origin for the MSC030SDA120K is India.
This diode belongs to the MSC0 series.
