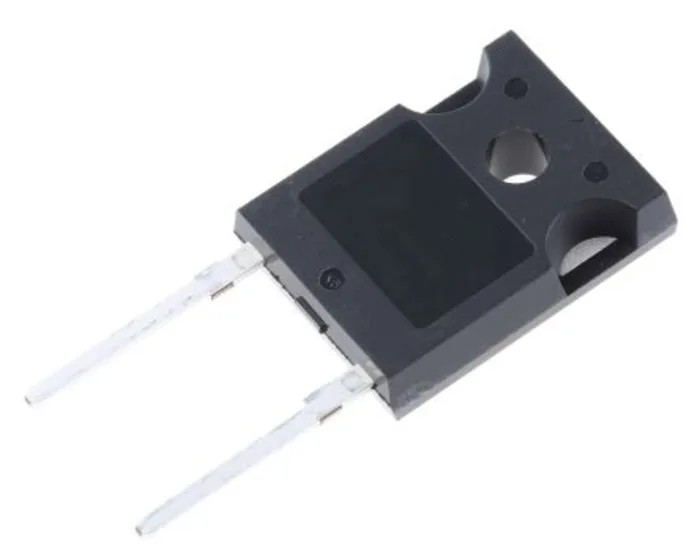

Microchip 1200 V 10 A Schottky Barrier Schottky Diode TO-247 MSC010SDA120B
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Model | MSC010SDA120B |
| Mount Type | Through Hole |
| Series | MSC0 |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-247 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Maximum Continuous Forward Current If | 10A |
| Peak Reverse Repetitive Voltage Vrrm | 1200V |
| Rectifier Type | Schottky |
| Peak Non-Repetitive Forward Surge Current Ifsm | 75A |
| Maximum Forward Voltage Vf | 1.8V |
Key Features
- Maximum continuous forward current of 10A ensures reliable performance.
- High peak reverse repetitive voltage rating of 1200V suitable for demanding environments.
- Low forward voltage drop of 1.8V minimizes power loss during operation.
- Wide operating temperature range from -55°C to 175°C allows use in harsh conditions.
- Through hole mount and TO-247 package enable easy integration into power electronics.
- Schottky rectifier type designed for fast switching and low leakage current.
- Peak non-repetitive forward surge current rating of 75A supports transient load conditions.
- Compliant with RoHS standards, ensuring environmental safety.
Product Description
The Microchip MSC010SDA120B is a high-performance 1200 V, 10 A Schottky barrier diode packaged in a robust TO-247 housing. It is optimized for applications requiring fast switching and low forward voltage drop, which reduces power losses in power supply circuits.
Featuring a maximum continuous forward current rating of 10 amps and a peak reverse repetitive voltage of 1200 volts, this diode suits a wide array of power electronics, including power parallel diode configurations and rectification modules.
The device exhibits soft recovery characteristics, maintaining low leakage currents and enabling efficient energy conversion. It has a broad operating temperature range from -55 degrees Celsius to 175 degrees Celsius, making it suitable for demanding industrial and commercial environments.
The Schottky rectifier type ensures rapid switching and reliable operation with a peak non-repetitive forward surge current capability of 75 amps to handle transient currents without damage.
Maximum continuous forward current of 10A provides dependable operation. High reverse voltage of 1200V ensures robustness in power circuits. Low forward voltage of 1.8V improves energy efficiency. Wide temperature operation between -55°C and 175°C.
TO-247 through-hole package facilitates mounting and heat dissipation. Soft recovery characteristics minimize switching losses. Peak forward surge current of 75A supports transient loads. RoHS compliant for environmental safety standards.
Not certified for automotive use but ideal for industrial power applications.
This Schottky diode is ideal for industrial power rectification, power supplies, and electronic systems requiring efficient barrier diodes with high voltage and current ratings. It suits applications in manufacturing, laboratory equipment, and commercial electronics.
For additional support, design resources, including 3D models and datasheets, are available to assist in seamless PCB integration and design optimization. Explore more semiconductor and Schottky diode solutions on EnvMart for your electronic component needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of the Microchip MSC010SDA120B is 10A.
This Schottky diode has a peak reverse repetitive voltage rating of 1200V.
The maximum forward voltage drop for the MSC010SDA120B is 1.8V.
It operates within a temperature range from -55°C to 175°C.
This model is packaged in a TO-247 housing, suitable for through-hole mounting.
The peak non-repetitive forward surge current rating is 75A.
Yes, the MSC010SDA120B is compliant with RoHS standards, ensuring environmental safety.
This diode is a Schottky rectifier type, designed for fast switching and low leakage current.
It is suitable for industrial power rectification, power supplies, and electronic systems requiring efficient barrier diodes.
The diode exhibits soft recovery characteristics, which help maintain low leakage currents and improve energy conversion efficiency.
The Microchip MSC010SDA120B is manufactured in India.
This model belongs to the MSC0 series of Schottky diodes.
