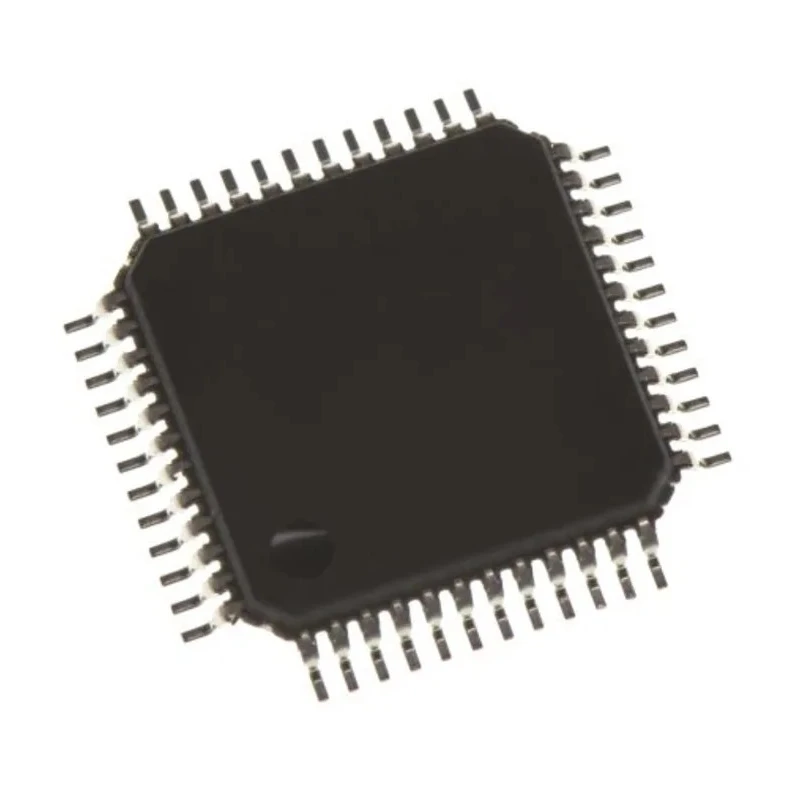

Microchip 12 bit AVR Microcontroller 24 MHz 128kB FLASH 48-Pin TQFP AVR128DB48-I/PT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Model | AVR128DB48-I/PT |
| Mount Type | Surface |
| Series | AVR |
| Maximum Operating Temperature | 125°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS3, REACH |
| Pin Count | 48 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.8V |
| Device Core | AVR |
| Program Memory Size | 128kB |
| Maximum Clock Frequency | 24MHz |
| Number of Programmable I/Os | 41 |
| Analogue Comparators | 3 |
| Number of Timers | 9 |
| Instruction Set Architecture | AVR |
| ADCs | 18 x 12 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 10 Bit |
Key Features
- Features a 12-bit AVR CPU running up to 24 MHz across a supply voltage range of 1.8V to 5.5V.
- Includes 128 kB of FLASH program memory and 18 12-bit ADC channels.
- Equipped with 3 analogue comparators and a 10-bit DAC with output buffer.
- Offers 41 programmable input/output pins and 9 timers for versatile control applications.
- Supports real-time control and multi-voltage I/O for industrial, home appliance, automotive, and IoT applications.
- Operates over a wide temperature range from -40°C to 125°C, suitable for harsh environments.
- Complies with RoHS3 and REACH standards for environmental and safety regulations.
Product Description
Microchip AVR128DB48-I/PT is a 12 bit AVR microcontroller featuring a 24 MHz maximum clock frequency and 128kB FLASH memory in a 48-Pin TQFP surface-mount package. This device operates over a broad voltage range from 1.8V to 5.5V and is designed for applications requiring analog signal conditioning, real-time control, and multi-voltage operation.
The AVR DB family offers advanced features including 18 12-bit ADC channels providing high-resolution analog-to-digital conversion, 3 analogue comparators for precise signal comparison, and a 10-bit DAC with output buffer for digital to analog signal conversion. The microcontroller provides 41 programmable I/O pins and 9 timers, enabling complex timing and control functions.
It supports a robust instruction set architecture optimized for AVR microcontroller applications, ensuring efficient code execution. The device is suitable for a variety of industrial control systems, home appliances, automotive electronics, and Internet of Things (IoT) devices where reliable performance under wide operating conditions is critical.
Designed for durability, the microcontroller has a wide operating temperature range from -40°C to 125°C, making it fitting for challenging operational environments. Additionally, it meets environmental standards including RoHS3 and REACH.
Features include an operational amplifier (OPAMP) and a zero-cross detector (ZCD), expanding its utility in signal processing applications. This microcontroller is surface mountable and packaged in a 48-pin TQFP format suitable for compact PCB designs.
Features a 12-bit AVR CPU running up to 24 MHz across full voltage range. Includes 128kB FLASH program memory capacity and 18 12-bit ADC converters. Provides 3 analogue comparators and a 10-bit DAC with output buffer. Offers 41 programmable inputs/outputs and 9 timers for flexible control.
Wide operating temperature range from -40°C to 125°C for demanding applications. Compliance with RoHS3 and REACH environmental standards. Ideal for industrial, automotive, home appliance, and IoT uses. Explore more Microchip Microcontrollers and related semiconductor products in the Electronics & Electricals category on EnvMart for industrial and laboratory solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 24 MHz.
It features a program memory size of 128 kB, utilizing FLASH memory type.
This microcontroller operates over a supply voltage range from 1.8V to 5.5V.
It offers 41 programmable input/output pins for versatile control applications.
It operates within a temperature range from -40°C to 125°C, suitable for harsh environments.
This model includes 18 channels of 12-bit ADC for high-resolution analog-to-digital conversion.
It is packaged in a 48-Pin TQFP surface-mount format.
It complies with RoHS3 and REACH environmental standards.
This unit is equipped with 3 analogue comparators for precise signal comparison.
The maximum operating temperature for the AVR128DB48-I/PT is 125°C.
It features 9 timers for complex timing and control functions.
It includes a 10-bit DAC with an output buffer for digital to analog signal conversion.
