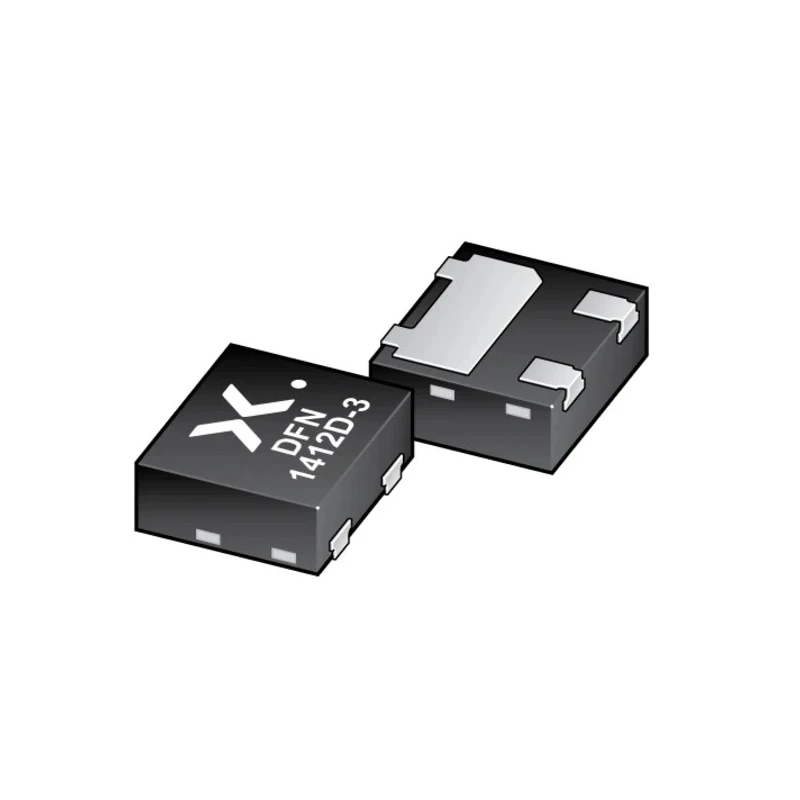

Nexperia Bipolar Transistor PNP 500 mA 45 V 3-Pin DFN1412D-3 BC807-40QCZ

Nexperia BC807-40QCZ Bipolar Transistor is a PNP transistor designed for general-purpose amplification and switching in compact, high-density electronic circuits. It features a 3-pin DFN1412D-3 surface-mounted package providing a small footprint and low profile of 0.5 mm height, ideal for space-constrained applications.

This transistor supports a maximum DC collector current of 500 mA and a maximum collector emitter voltage of 45 V, making it suitable for moderate power applications in industrial and automotive electronic systems. It has a minimum DC current gain (hFE) of 250 and wide operating temperature range from -55°C to 150°C, ensuring robust performance across diverse environmental conditions.

The device meets RoHS compliance for environmental safety and the automotive AEC-Q101 standard, confirming its reliability in automotive electronics. Its side-wettable flank design facilitates effective automatic optical inspection (AOI) during PCB assembly, reducing manufacturing defects.

This bipolar transistor's small size and high performance make it suitable for use in industrial control systems, automotive electronics, consumer electronics, and other manufacturing or electronic design applications requiring surface-mount discrete semiconductors.

Supports 500 mA collector current for moderate power handling. Maximum voltage ratings of 45 V (collector-emitter) and 50 V (collector-base). Minimum gain of 250 for reliable signal amplification. Wide temperature range (-55°C to 150°C) for durability.

Small DFN1412D-3 package for compact PCB footprint. RoHS and automotive AEC-Q101 standards compliant. Side-wettable flanks facilitate quality control via AOI. Explore more Nexperia Bipolar Transistors and semiconductor solutions for your precise industrial and automotive applications at EnvMart.
