| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Model | BC807-40QB-QZ |
| Mount Type | Surface |
| Series | BC807QB-Q |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1110D-3 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Collector Emitter Voltage Vceo | -45V |
| Minimum DC Current Gain hFE | 250 |
| Transistor Polarity | PNP |
| Maximum Emitter Base Voltage VEBO | -5V |
| Maximum Collector Base Voltage VCBO | -50V |
| Automotive Standard | AEC-Q101 |
| Maximum DC Collector Current Idc | -500mA |
| Transistor Configuration | PNP |

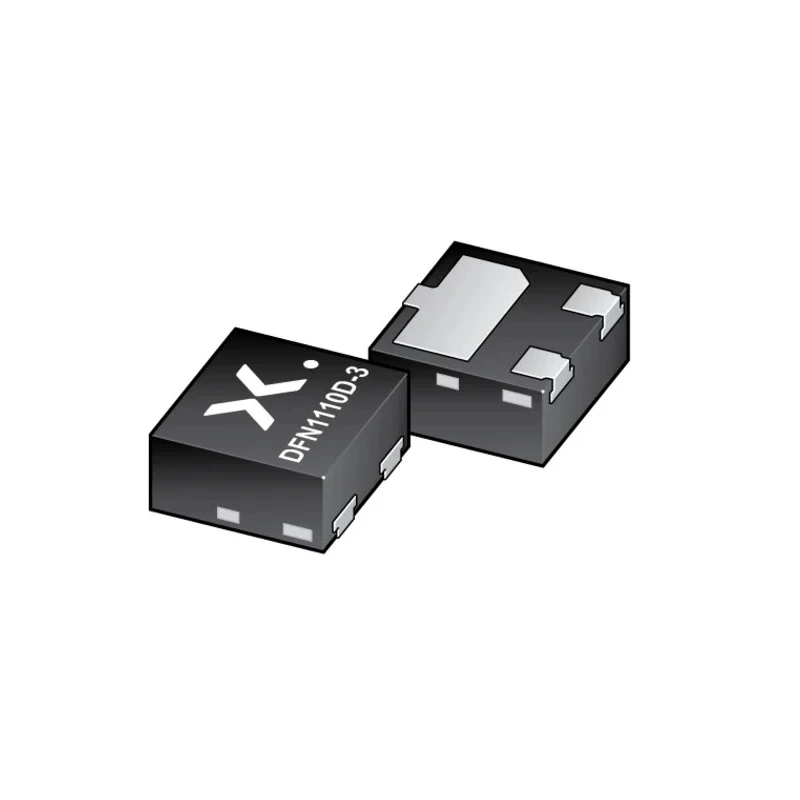

The Nexperia BC807-40QB-QZ is a PNP bipolar transistor designed for general-purpose applications requiring moderate current and voltage ratings. Packaged in an ultra small, leadless DFN1110D-3 surface-mount device, it offers a low profile of 0.5 mm with side-wettable flanks compatible with automatic optical inspection systems. The transistor supports a maximum DC collector current of 500 mA and a collector emitter voltage of 45 V, making it suitable for signal amplification and switching in compact electronic assemblies.
Featuring a minimum DC current gain (hFE) of 250, it provides adequate gain performance for various control and amplification functions. The device is built to operate reliably in harsh environments, accommodating temperatures from -55°C up to 150°C, thereby suitable for automotive and industrial applications.
This transistor complies with the RoHS directive, ensuring environmental safety, and meets AEC-Q101 automotive standards, certifying qualification for automotive system use. Its compact 3-pin DFN package saves PCB space compared to traditional leaded transistors, and side-wettable flanks facilitate manufacturing quality control.
High power dissipation capability supports robust performance in demanding circuits. Multiple current gain selections optimize electrical characteristics for diverse designs. Surface mount package offers reduced PCB footprint and enhanced mechanical reliability.
Qualified for automotive-grade usage under AEC-Q101 standard. RoHS compliant, ensuring lead-free manufacturing process.
This transistor is ideal for industrial electronics, automotive control systems, instrumentation, and general-purpose amplification tasks. The small form factor and automotive qualification extend its use to compact, high-reliability environments including sensors, communicative devices, and power management circuits.
Explore more components in the Nexperia Bipolar Transistor series at EnvMart for high-quality semiconductor solutions.
