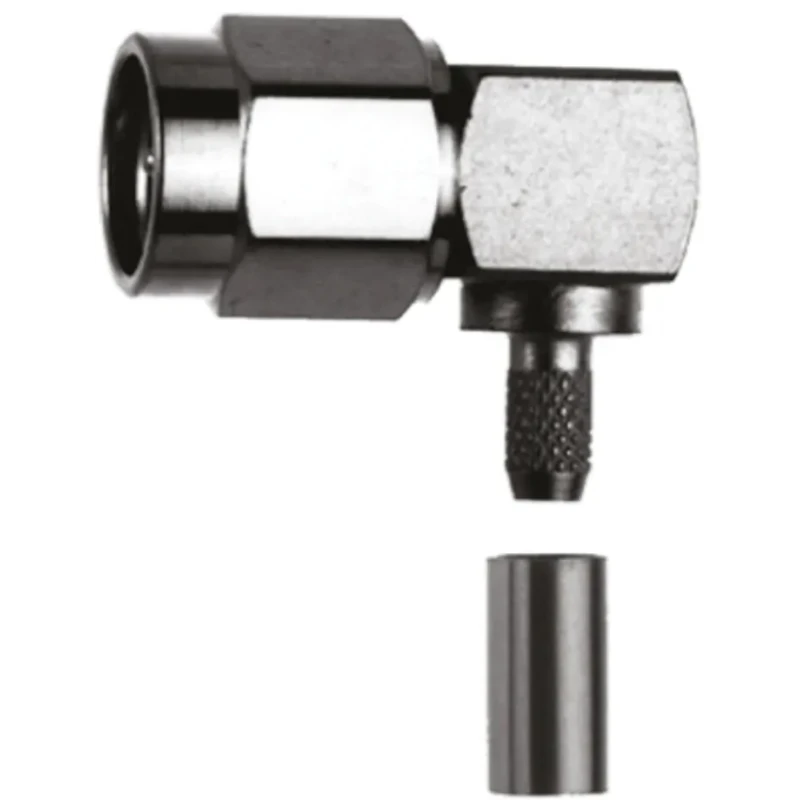

Telegartner SMA Series Coaxial Connector Cable Male SMA 50 Ω Right Angle Body Crimp J01150A0081
Specifications
| Country of Origin | Germany |
|---|---|
| Size | Standard |
| Brand | Telegartner |
| Orientation | Right Angle |
| Model | J01150A0081 |
| Mount Type | Cable |
| Operating Frequency | 12.4GHz |
| Contact Material | Beryllium Copper |
| Series | SMA |
| Termination Type | Crimp |
| Maximum Operating Temperature | 165°C |
| Cable Type | RG400/U, RG142B/U, RG223/U |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Copper Nickel Gold Alloy |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | SMA |
| Body Plating | Gold |
Key Features
- Provides a reliable SMA male coaxial connector with 50 Ω impedance for signal integrity.
- Right angle body design facilitates tight installation spaces.
- Cable termination uses crimp type for secure and durable connection.
- Compatible with RG400/U, RG142B/U, and RG223/U cable types.
- Operates effectively across a frequency range up to 12.4 GHz.
- Gold plating on the body ensures excellent corrosion resistance and conductivity.
- Contact material is beryllium copper with copper nickel gold alloy plating for durability and performance.
- Suitable for operating temperatures ranging from -65°C to 165°C.
Product Description
Telegartner J01150A0081 SMA Series Coaxial Connector Cable is a high-quality male SMA coaxial connector cable designed for industrial and laboratory applications requiring precise RF signal transmission. Featuring a right angle body, this connector enables installations in confined spaces and provides robust mechanical stability.
The cable termination type is crimp, ensuring a reliable and maintenance-friendly connection suitable for complex wiring harnesses. Compatible with RG400/U, RG142B/U, and RG223/U cables, it covers a wide range of cable sizes and types.
Electrical characteristics include a 50 Ω impedance and an operating frequency capacity of up to 12.4 GHz, making it appropriate for high-frequency signal use in telecommunications, test instrumentation, and RF equipment manufacturing sectors.
Built with a gold plated body and copper nickel gold alloy plated beryllium copper contacts, this connector provides excellent corrosion resistance and ensures consistent electrical performance over time.
Operating temperature range from -65°C to 165°C allows for usage in harsh environmental conditions or temperature-variable applications. Though it lacks formal certifications, the product's manufacturing quality from Germany ensures industrial reliability.
Provides a reliable SMA male coaxial connector with 50 Ω impedance for signal integrity. Right angle body design facilitates tight installation spaces. Cable termination uses crimp type for secure and durable connection.
Compatible with RG400/U, RG142B/U, and RG223/U cable types. Operates effectively across a frequency range up to 12.4 GHz. Gold plating on the body ensures excellent corrosion resistance and conductivity. Contact material is beryllium copper with copper nickel gold alloy plating for durability and performance.
Suitable for operating temperatures ranging from -65°C to 165°C. Manufactured in Germany adhering to quality standards but without formal approvals.
This coaxial connector cable is ideal for engineering, manufacturing, laboratory, electronic equipment repair, and telecommunications applications where precise RF signal connections are critical. Explore more quality Coaxial Connectors and related components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates effectively across a frequency range up to 12.4 GHz, making it suitable for high-frequency signal applications.
It is compatible with RG400/U, RG142B/U, and RG223/U cable types, allowing for versatility in various applications.
The connector has a 50 Ω impedance, which is essential for maintaining signal integrity in RF applications.
This unit is suitable for operating temperatures ranging from -65°C to 165°C, accommodating harsh environmental conditions.
The cable termination type is crimp, ensuring a secure and durable connection.
The contact material is beryllium copper, which is plated with a copper nickel gold alloy for enhanced durability and performance.
This connector features a right angle body design, which facilitates installations in tight spaces.
It is manufactured in Germany, adhering to quality standards typical of the region.
The body of this connector is gold plated, providing excellent corrosion resistance and conductivity.
The model number for this unit is J01150A0081, which identifies it within the Telegartner SMA Series.
This connector is ideal for engineering, manufacturing, laboratory, electronic equipment repair, and telecommunications applications where precise RF signal connections are critical.
This model features a male connector gender, making it suitable for corresponding female connectors.
